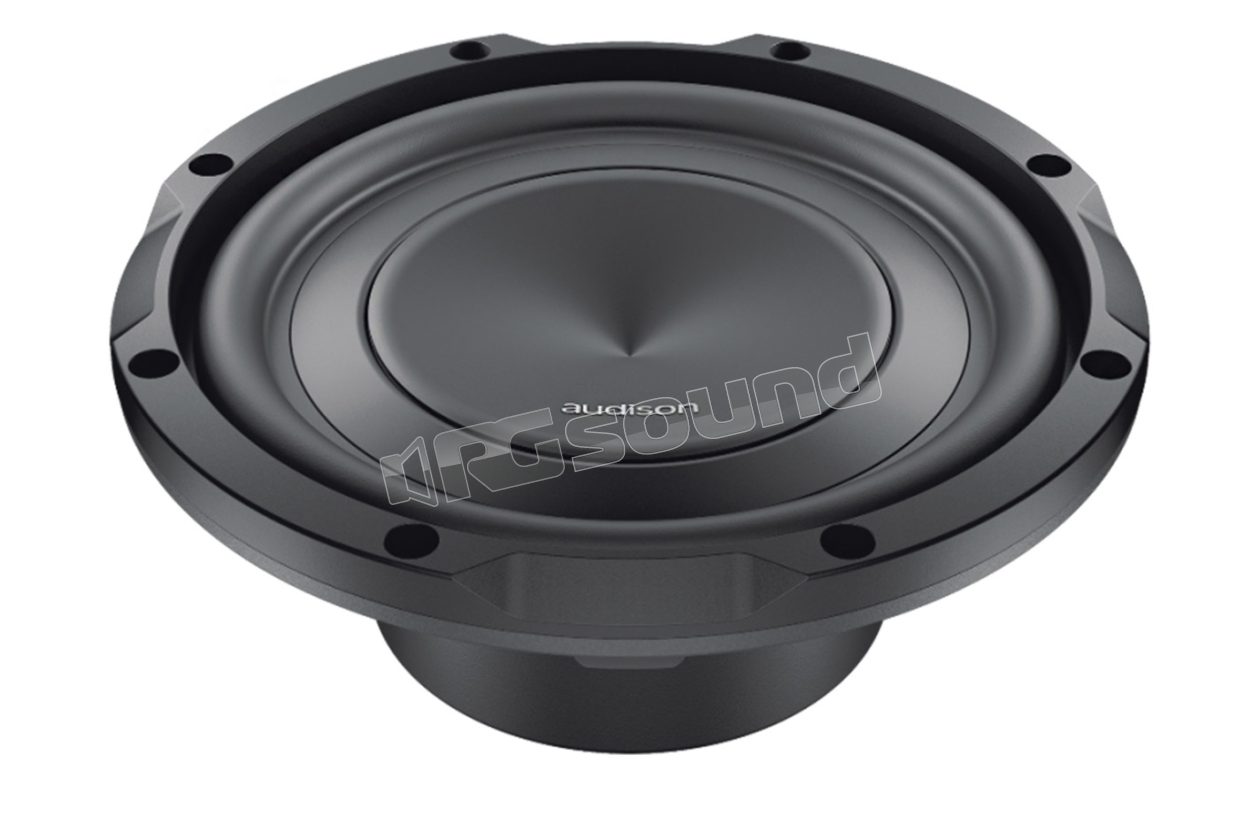

APS 8 D 20 cm Slim Subwoofer with Dual Voice Coil

Audison
Your price:
€ 159,00
Price per single item (VAT included)
In stock, ready to ship
Calculating shipping costs to
Type
Subwoofer
Speaker Size
200 mm
MAX Power
500 Watt
RMS Power
250 Watt
Sensitivity
83,5 dB
Impedance
4 + 4 Ohm
Weight
3 Kg
Installation Depth
79 mm
Woofer Material
Cellulosa trattata

Audison APS 8 D Slim Subwoofer 20 cm Dual Coil

The APS 8 D was designed to deliver maximum performance in a sealed enclosure with ultra-compact volumes ranging from 7.5 to 8.5 liters. It features push connectors to facilitate wiring and configurations and was developed with a primary objective: to provide high output in confined spaces. Output is a matter of excursion: the more air the cone moves, the greater the output.

However, a reduced mounting depth has traditionally meant low excursion. Prima subwoofers employ a special cone-cover-dust cap-basket geometry that guarantees wide excursion of the moving assembly while keeping mounting depth to a minimum. The surround and spider have been carefully designed to avoid the rocking-mode phenomenon. The cooling circuit was designed with air vents on the basket under the spider, eliminating the need for air vents on the bottom plate. This allows mounting the subwoofer close to the rear wall of the enclosure, taking full advantage of the reduced mounting depth.

FeaturesAPS 8 D

  • Ultra-low profile (3.11 in / 79 mm) for maximum installation flexibility.
  • Designed to deliver the best performance in a ported enclosure starting from 7.5 liters.
  • Push connectors
  • Exclusive cone, dust cap and basket geometry design to achieve wide linear excursion (9 mm in one direction) while keeping the mounting depth required to a minimum.
  • Holes in the basket under the spider that eliminate the need for a center hole in the bottom-plate and allow mounting flush against the enclosure rear wall.
  • Impressive magnetic assembly optimized with FEM (Finite Element Modeling) methods for perfect control under wide excursion conditions.
  • 20 cm molded cellulose fiber cone with water-repellent treatment, with profile developed using FEM simulations and optimized with Klippel Scan Vibrometer.
  • Designed with dual coil to deliver the best performance in combination with Audison AP8.9 bit amplifiers (2 CH + 2 CH bridged), AP5.9 bit (sub channel) or AP4.9 bit/AP4 D (2 CH bridged).
  • Metal mesh grille and plastic gasket included.

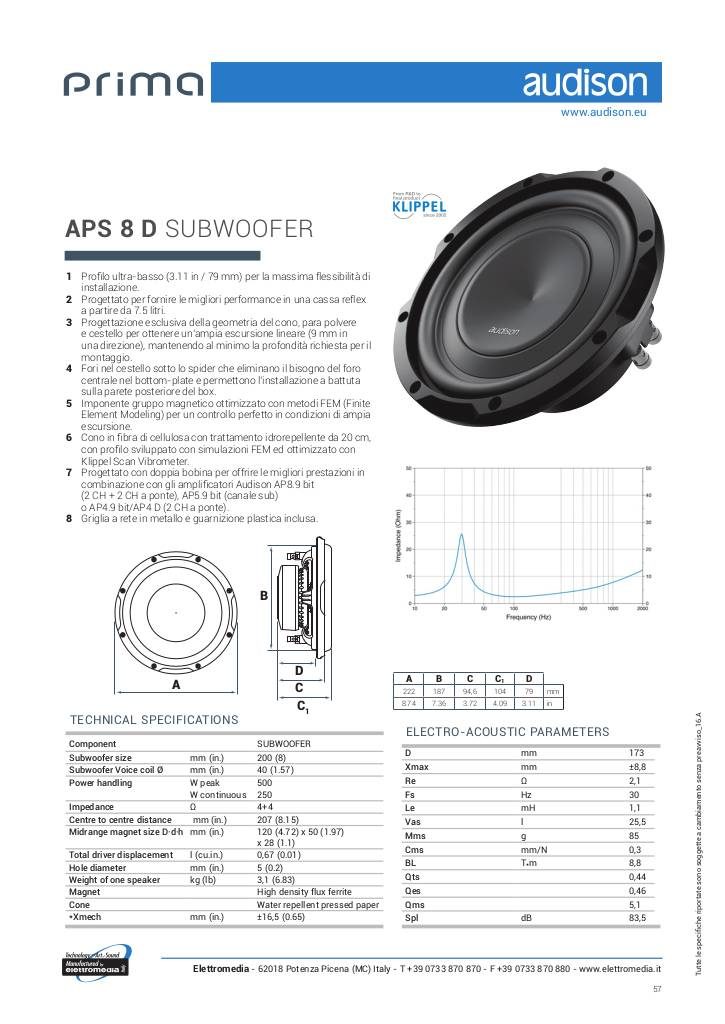

Scheda tecnica

n-20161128152950-aps-8-d-scheda-tecnica-tech-sheet.pdf

Audison APS 8 D Technical Specifications

  • Nominal diameter 200 mm (8")
  • Power handling - Peak 500 W
  • Power handling - continuous 250 W
  • Sensitivity 83.5 dB
  • Magnet material HIGH DENSITY FERRITE FLUX
  • Magnet dimensions D x d x h 120 x 50 x 28 mm (in.)
  • Cone material Water-repellent molded paper
  • Xmax 8.8 mm (0.35 inches)
  • Xmech 16.5 mm (0.65 inches)
  • Voice coil winding height 40 mm (1.57")
  • Driver displacement volume 0.67 l (0.024 ft)
  • Weight 3.1 kg

Electrical-acoustic specifications

  • Re 2.1 Ohm
  • Fs 30 Hz
  • Le 1.1 mH
  • Vas 25.5 l (0.901 ft)
  • Mms 85 g (2.998 oz)
  • Cms 0.3 mm/N
  • BL 8.8 T-m
  • Qts 0.44
  • Qes 0.46
  • Qms 5.1
