APS 10 D High-efficiency 25 cm slim subwoofer

Audison
Your price:
€ 209,00
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
Subwoofer
Speaker Size
250 mm
MAX Power
800 Watt
RMS Power
400 Watt
Sensitivity
84 dB
Impedance
4 + 4 Ohm
Weight
5,2 Kg
Installation Depth
88 mm
Woofer Material
Cellulosa trattata

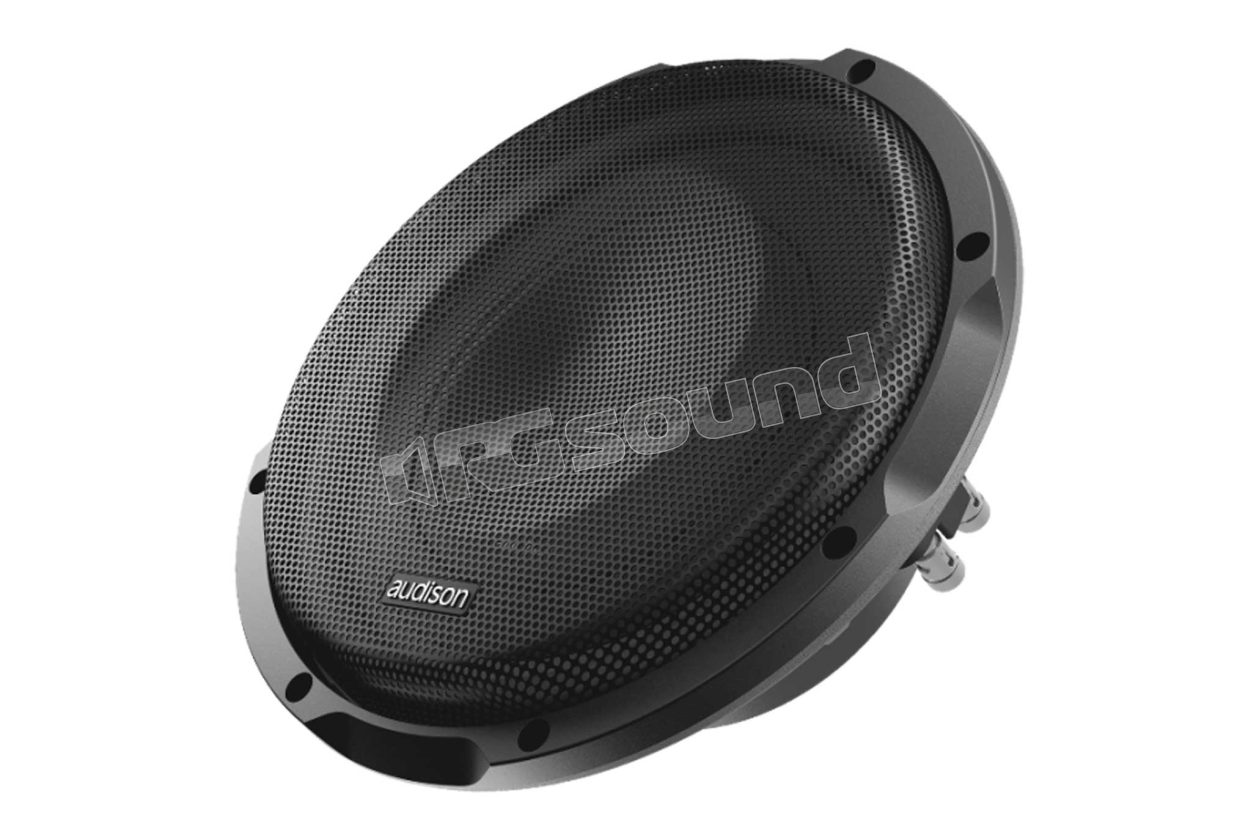

Audison APS 10 D slim high-efficiency 25 cm subwoofer

250mm high-efficiency subwoofer with dual voice-coil, designed to deliver maximum performance in ultra-compact box volumes (10 lt. - 12 lt). Dual voice-coil and push connectors, ease of wiring and configuration. The components of the Prima APS 10 D subwoofer have been developed with a primary objective: to provide high efficiency in confined spaces. They employ a particular cone-dustcap-basket geometry that guarantees large excursion of the moving assembly, the cooling circuit has been designed with air intakes on the basket under the spider, eliminating the need for other air intakes

FeaturesAudison APS 10 D

  • Ultra-low profile (4.7 in / 120 mm) for maximum installation flexibility.
  • Designed to deliver best performance in a reflex enclosure starting from 10 liters
  • Exclusive cone geometry design, dust cap and basket to achieve large linear excursion (11 mm in one direction), while keeping to a minimum the depth required for mounting.
  • Holes in the basket under the spider that eliminate the need for a hole in the bottom-plate and allow installation flush against the rear wall of the box.
  • Impressive magnetic assembly optimized with FEM (Finite Element Modeling) methods for perfect control in wide excursion conditions.
  • 25 cm cellulose fiber cone with water-repellent treatment, with profile developed with FEM simulations and optimized with Klippel Scan Vibrometer.
  • Designed with dual voice-coil to deliver best performance in combination with Audison AP8.9 bit (2 + 2 CH bridged channels), AP5.9 bit (sub channel) or AP4.9 bit/AP4 D (2 bridged channels) amplifiers.
  • 8 metal mesh grille and plastic gasket included.

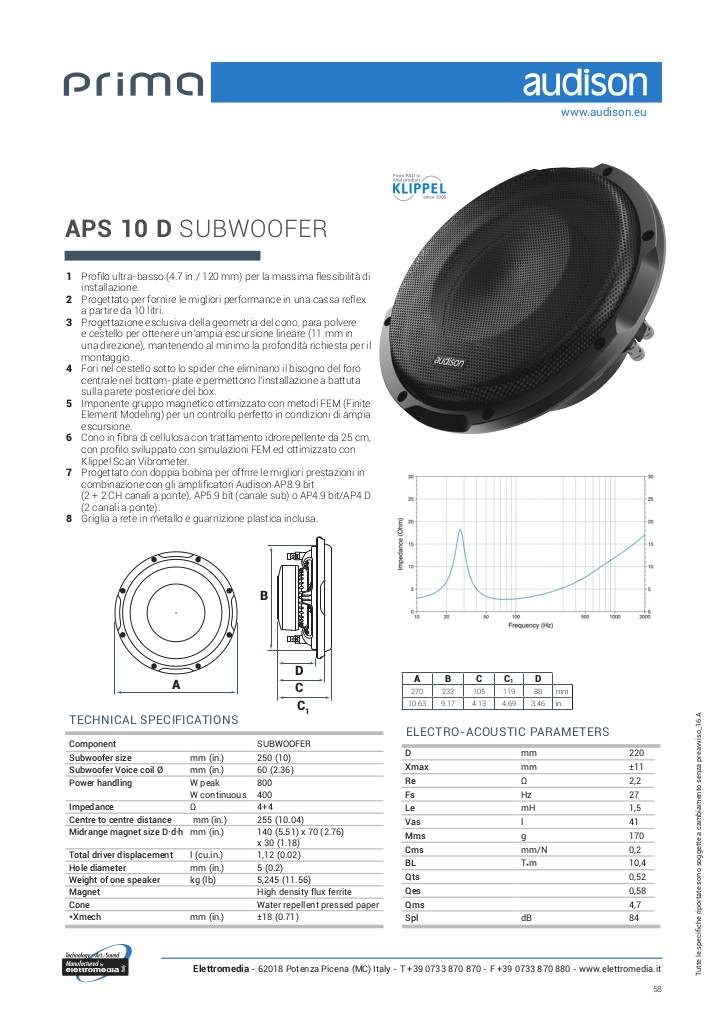

Scheda tecnica

n-20161013171456-aps-10-d-scheda-tecnica-tech-sheet.pdf

Audison APS 10 D technical specifications

  • Subwoofer size mm (in.) 250 (10)
  • Ø of subwoofer voice-coil mm (in.) 60 (2,36)
  • Power handling peak W 800
  • continuous W 400
  • Impedance Ω 4+4
  • Center-to-center distance mm (in.) 255 (10,04)
  • Midrange magnet size D-d-h mm (in.) 140 (5,51) x 70 (2,76) x 30 (1,18)
  • Total speaker displacement l (cu.in.) 1,12 (0,02)
  • Hole diameter mm (in.) 5 (0,2)
  • Weight of one speaker kg (lb) 5,245 (11,56)
  • Magnet high flux density ferrite
  • Cone water-repellent pressed paper
€ 209,00 Price incl. VAT
