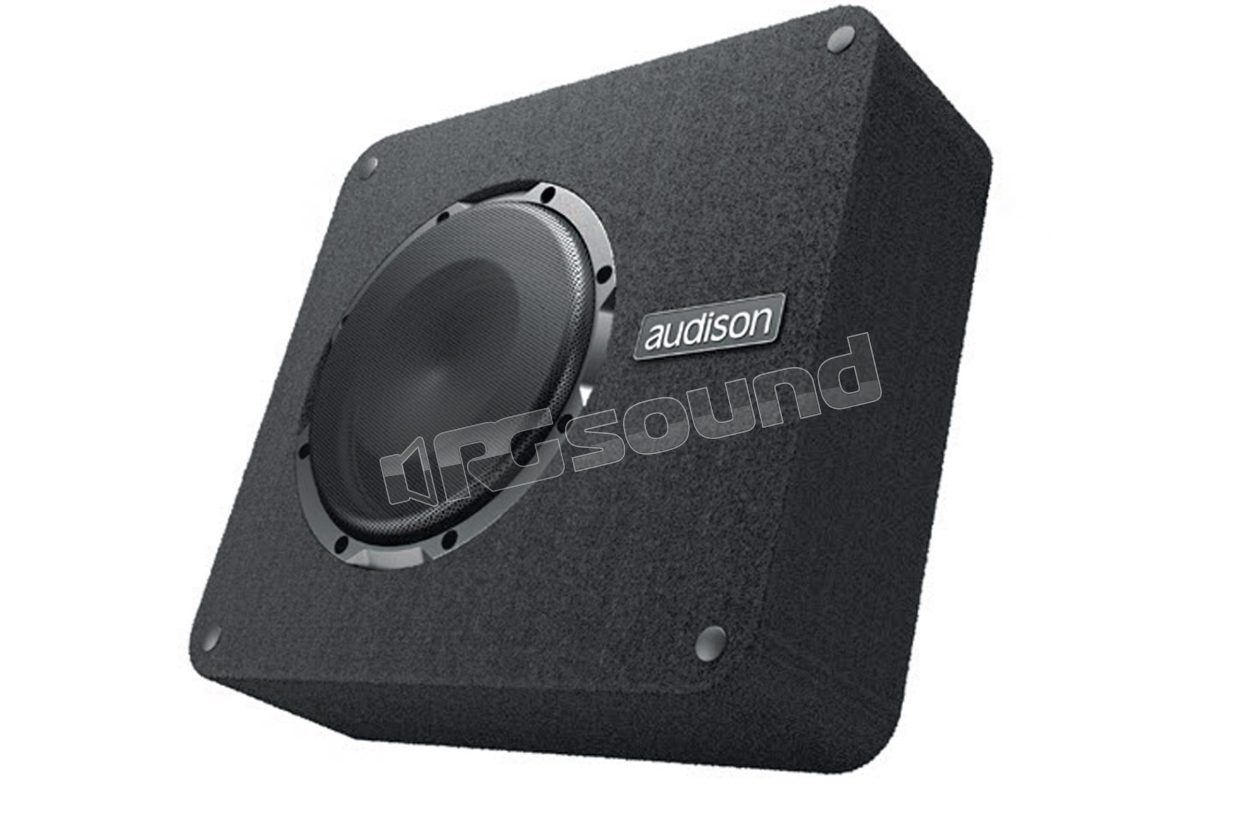

APBX 8 R 20 cm single voice coil subwoofer in a reflex enclosure

Audison
Your price:
€ 259,00
Price per single item (VAT included)
In stock, ready to ship
Calculating shipping costs to
Type
Subwoofer in enclosure
Speaker Size
200 mm
MAX Power
500 Watt
RMS Power
250 Watt
Impedance
4 Ohm
Weight
6,6 Kg
Enclosure Size
473 x 334 x 109 mm
Enclosure Type
Reflex Enclosure

Audison APBX 8 R 20 cm Subwoofer in reflex box single voice coil 4 Ohm

The loaded enclosure APBX 8 R was developed with reflex loading, with tuning designed to concentrate SPL in the lowest frequency range. The objective was to exploit the natural power increase found in most vehicles below 60 Hz, known as cabin gain.

The 8 inch subwoofer with single 4 ohm voice coil has a powerful motor that maximizes efficiency in combination with the AP8.9 bit amplifier. The low resonance frequency of the subwoofer, combined with the reflex enclosure, keeps excursion low across the entire audio spectrum, also allowing use with a pair of AP4.9 bit / AP4 D bridged channels, capable of delivering 260 W rms.

APBX 8 R Features

  • Ultra-low profile box (5.16 in. / 131 mm) with reflex tuning port designed to fully exploit the APS 8 R driver.
  • The 2S² design (2 Sides / 2 Sounds) allows you to choose between Down-Firing positioning to increase bass extension and Up-Firing positioning to get more punch and definition.
  • Leveling feet with velcro inserts included for secure grip with carpet, ensuring extreme ease of removal.
  • The SSP (Sub Smart Plug) terminal block has traditional push contacts and a Plug-&-Play connector to configure impedance as required and disconnect the box easily.
  • Rounded corners allow easy positioning in the car trunk and act as reinforcement to reduce box resonances.
  • Exclusive cone geometry design, dust cap and basket to achieve wide linear excursion (9 mm in one direction), while minimizing the depth required for installation.
  • Impressive magnetic assembly optimized with FEM (Finite Element Modeling) methods for perfect control under wide excursion conditions.
  • 20 cm cellulose fiber cone with water-repellent treatment, with profile developed through FEM simulations and optimized with Klippel Scan Vibrometer.
  • Designed to deliver best performance in combination with Audison AP8.9 bit amplifiers (2 bridged channels) or with AP4.9 bit/AP4 D (two bridged channels).
  • Robust metal grille included, for complete protection of the subwoofer driver.

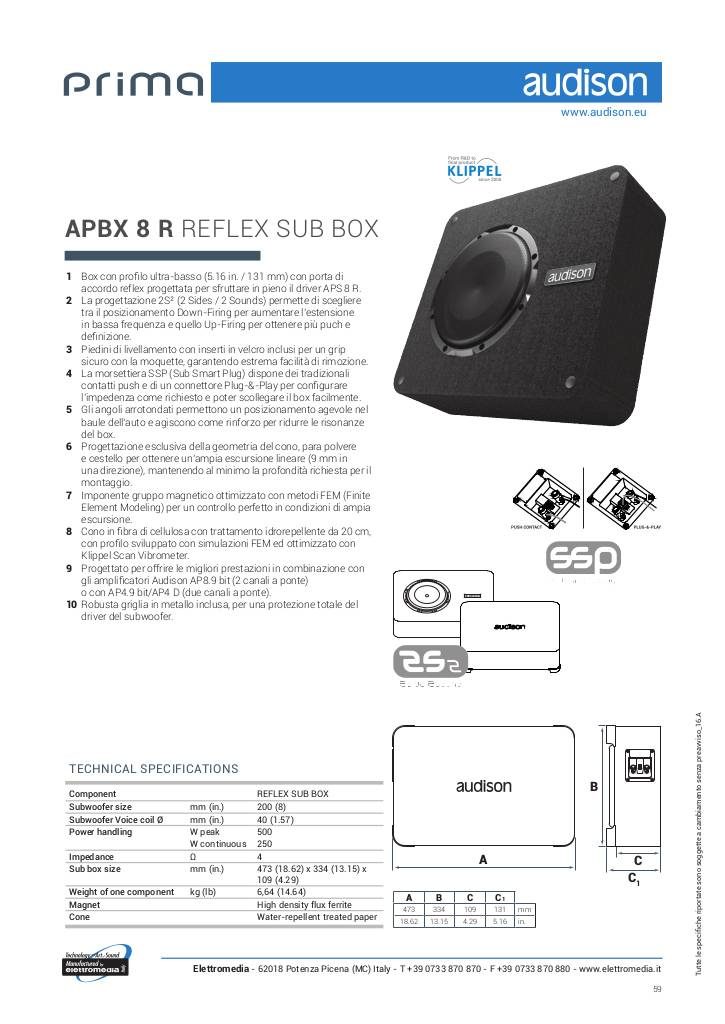

Scheda tecnica

n-20161202161132-apbx-8-r-scheda-tecnica-tech-sheet.pdf

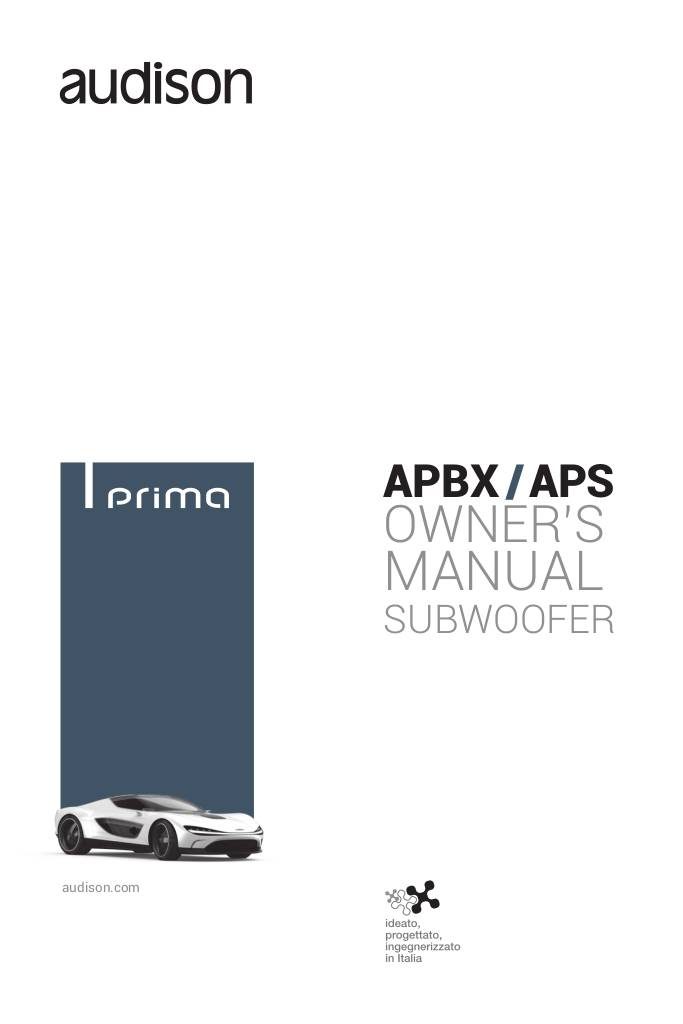

Manuale di installazione

n-20191129095312-audison-prima-apbx-aps-owner-manual-revm-x-web.pdf

Audison APBX 8 R Technical Specifications

  • Impedance 4 Ohm
  • Power handling - Peak 500 W
  • Power handling - Continuous 250 W
  • Magnet material HIGH DENSITY FLUX FERRITE
  • Cone material Cotton fiber printed paper
