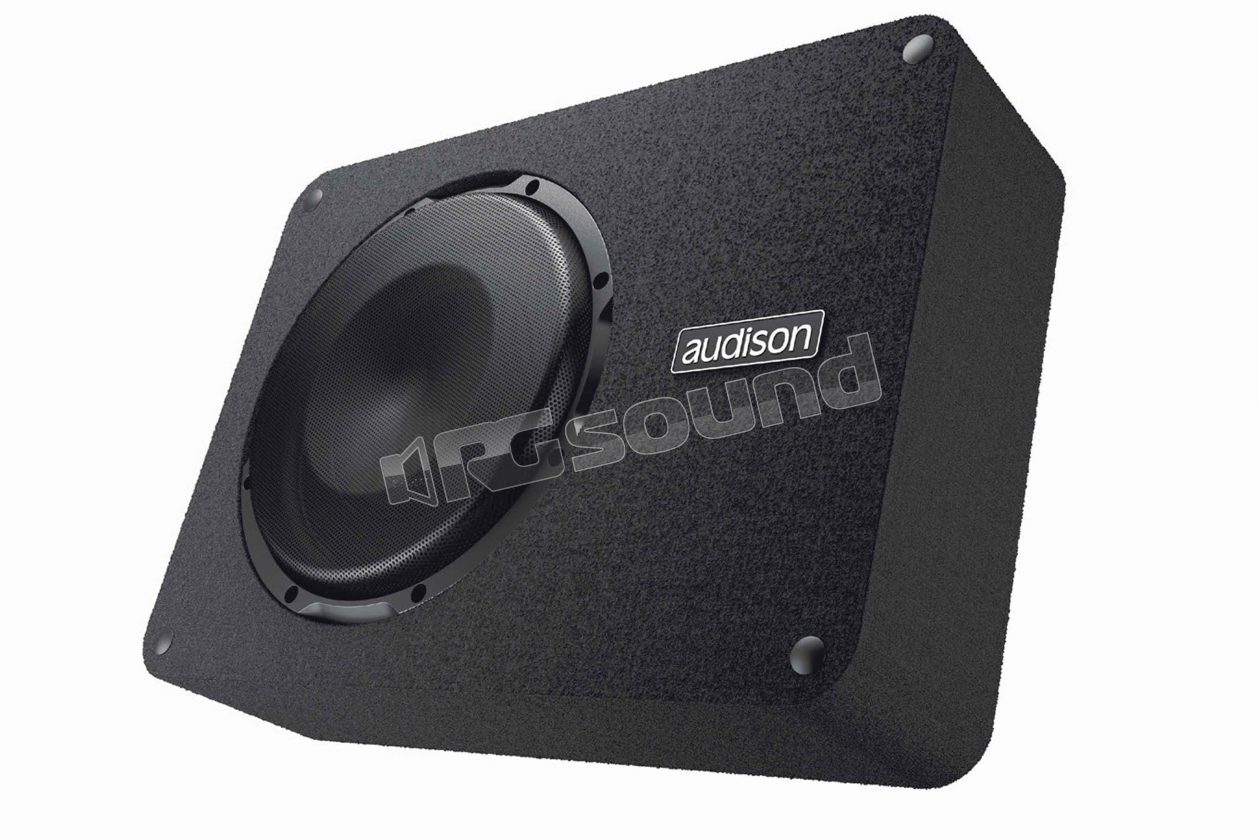

APBX 10 S4S 25cm passive subwoofer in sealed enclosure

Audison
Your price:
€ 319,00
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
Subwoofer in enclosure
Speaker Size
250 mm
MAX Power
800 Watt
RMS Power
400 Watt
Impedance
4 Ohm
Weight
8,6 Kg
Enclosure Size
472 x 334 x 120 mm
Enclosure Type
Sealed Enclosure

Audison APBX 10 S4S Passive subwoofer in sealed enclosure 25cm

The sealed enclosure APBX 10 S4S is the ideal choice to be powered by the Audison AP F8.9 bit using two bridge channels. Designed to house the APS 10 S4S subwoofer with single 4 ohm voice coil, it offers an ultra-performing Plug & Play solution that boasts all the characteristics that make Prima boxes unique, such as the SSP (Sub Smart Plug) terminal strip for quick connection that leaves no room for error.

APBX 10 S4S Features

  • Ultra-low profile enclosure (5.6 inches / 142 mm) with sealed design perfectly tuned to fully exploit the APS 10 D driver.
  • The 2S² design (2 sides / 2 sounds) offers the possibility to choose between Down-Firing mounting to increase bass frequency extension and Up-Firing install to get more punch and definition.
  • Leveling feet with velcro inserts included for a secure grip with the carpet while maintaining easy removal.
  • SSP (Sub Smart Plug) features both traditional push contacts and a Plug-&-Play terminal strip to easily configure the impedance as required and provides quick release.
  • Rounded corners allow easy trunk placement and act as reinforcement to reduce cabinet resonance.
  • Dust cap basket geometry with special design that ensures long linear travel (11 mm, one-way).
  • Massive driver motor assembly, optimized with FEM (Finite Element Modeling) for perfect control in high travel.
  • 10 inch paper cone treated with water-repellent with profile developed with FEM simulation and optimized with Klippel.
  • Robust metal grille included for complete protection of the subwoofer driver.

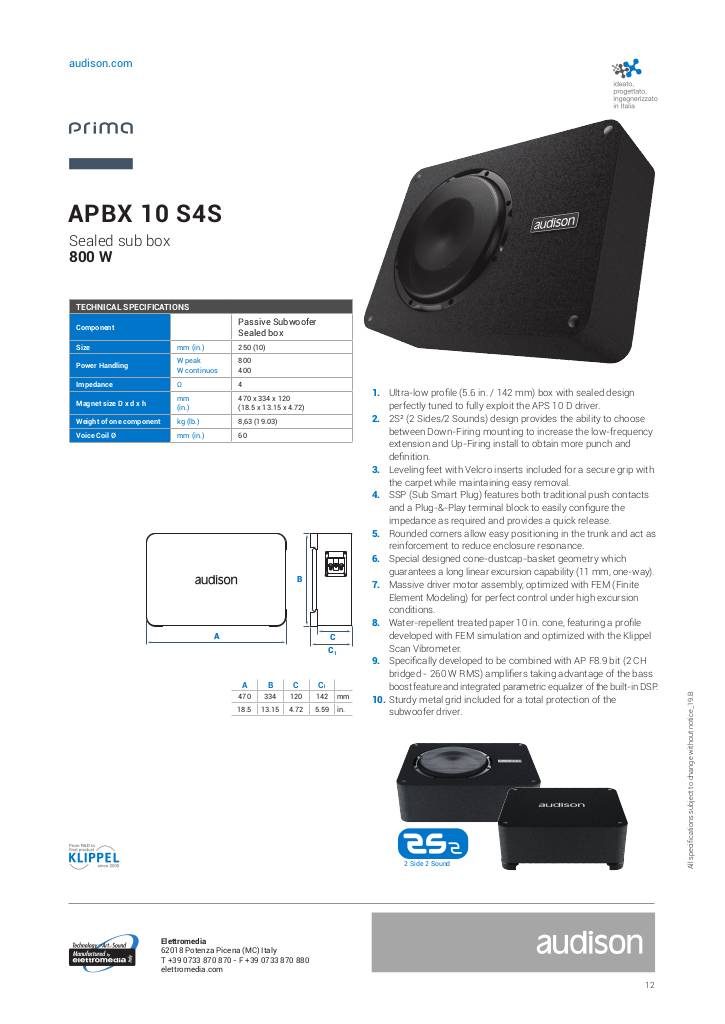

Scheda tecnica

n-20190314164054-audison-apbx10s4s-tech-sheet.pdf

Audison APBX 10 S4S Technical specifications

  • Passive subwoofer in sealed enclosure
    Dimensions 250 mm (10")
    Handled power 400 W continuous / 800 W peak
    Impedance 4 Ω
    Subwoofer dimensions mm 472 (18.58") x 334 (13.15") x 120 (4.72")
    High flux density Ferrite magnet
    Pressed cotton-paper fiber cone
    Weight of one component kg 8.63
€ 319,00 Price incl. VAT
