APBX 10 DS 25 cm enclosed subwoofer

Audison
Your price:
€ 319,00
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
Subwoofer in enclosure
Speaker Size
250 mm
MAX Power
800 Watt
RMS Power
400 Watt
Impedance
4 + 4 Ohm
Weight
8,6 Kg
Enclosure Size
472 x 334 x 120 mm
Enclosure Type
Sealed Enclosure

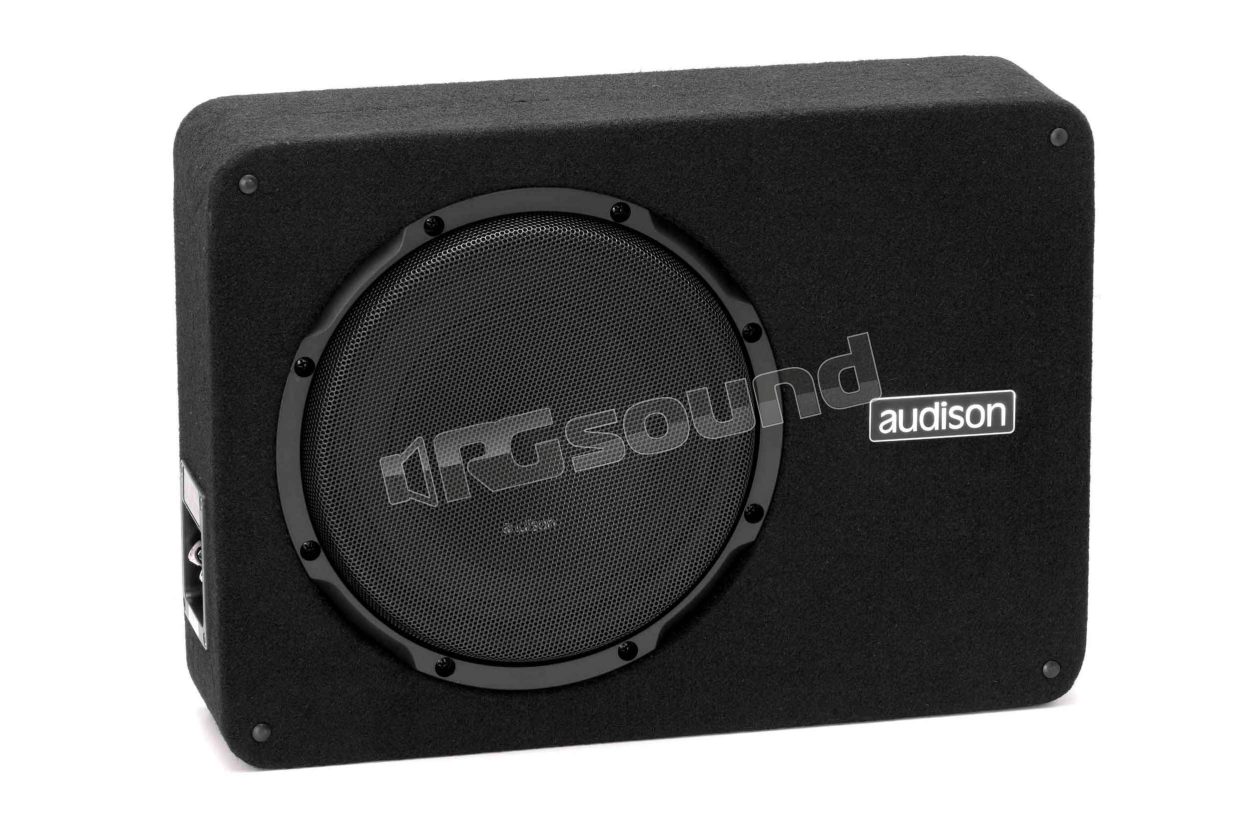

Audison APBX 10 DS Subwoofer in 10 in. enclosure

The line of this sub is extremely compact and pairs perfectly with the AP1 D amplifier but can also be used easily with different amplifiers. Captivating sound and good performance are guaranteed by the excellent speaker implemented that ensures an excursion of well 18 mm for a clean and full-bodied sound that pairs well with every musical genre.

Characteristics of the subAudison APBX 10 DS

  • Ultra-low profile box (5.6 in. / 142 mm) in pneumatic suspension, designed to fully exploit the APS 10 D driver.
  • The 2S² design (2 Sides / 2 Sounds) allows you to choose between Down-Firing positioning to increase bass extension and Up-Firing positioning to obtain more definition.
  • Leveling feet with velcro inserts included for secure grip with carpet, guaranteeing extreme ease of removal.
  • The SSP (Sub Smart Plug) terminal board has traditional push contacts and a Plug-&-Play connector to configure the impedance as required and to be able to disconnect the enclosure easily.
  • Rounded corners allow easy positioning in the car trunk and act as reinforcement to reduce enclosure resonances.
  • Exclusive cone geometry design, dust cover and basket to obtain wide linear excursion (9 mm in one direction), while keeping to a minimum the depth required for mounting.
  • Imposing magnetic group optimized with FEM (Finite Element Modeling) methods for perfect control in conditions of wide excursion.
  • 20 cm cellulose fiber cone with water-repellent treatment, with profile developed with FEM simulations and optimized with Klippel Scan Vibrometer.
  • Designed with dual coil to offer the best performance in combination with Audison AP8.9 bit amplifiers (2 + 2 CH channels bridged), AP5.9 bit (sub channel) or AP4.9 bit/AP4 D (2 bridged channels).
  • Robust metal grille included, for complete protection of the subwoofer driver.

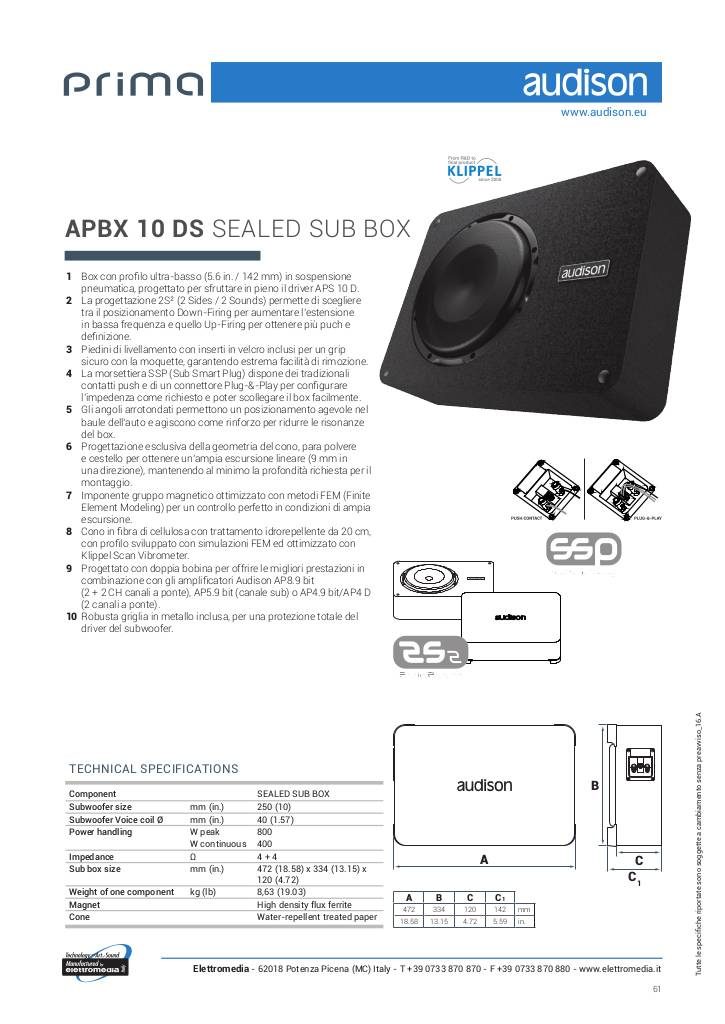

Scheda tecnica

n-20161010174126-apbx-10-ds-scheda-tecnica.pdf

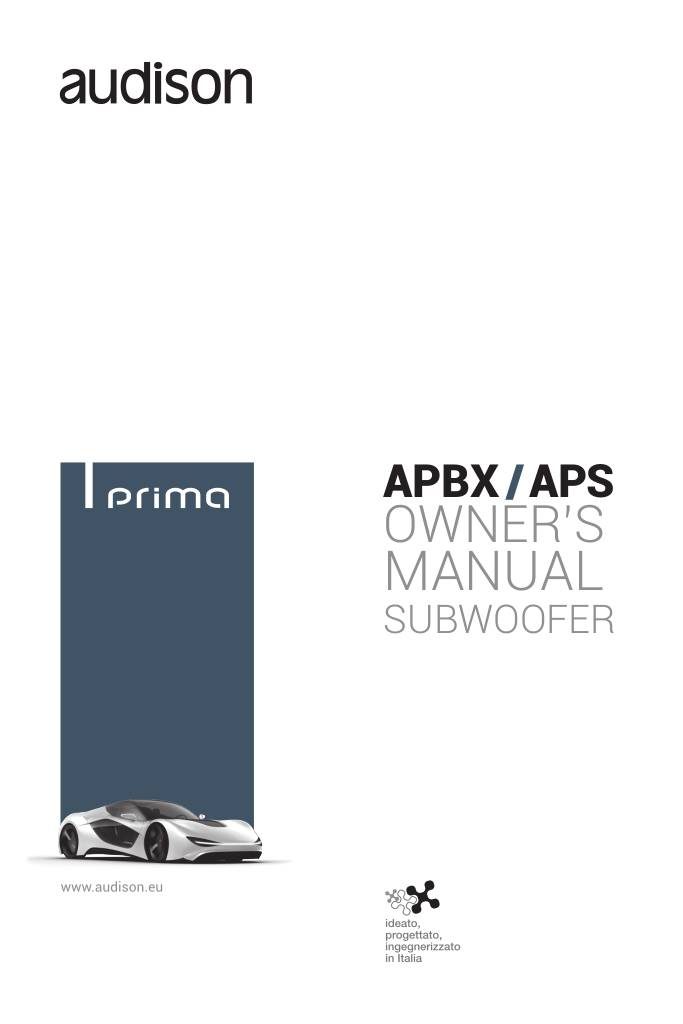

Manuale

n-20161212092937-prima-subwoofer-manual-manual.pdf

Audison APBX 10 DS Technical Specifications

  • Subwoofer size mm (in.) 250 (10)
  • Subwoofer voice coil diameter mm (in.) 40 (1.57)
  • Power handling W peak 800
  • W continuous 400
  • Impedance Ω 4 + 4
  • Subwoofer size mm (in.) 472 (18.58) x 334 (13.15) x 120 (4.72)
  • Component weight kg (lb) 8.63 (19.03)
  • Magnet High flux density ferrite
  • Cone Water-repellent coated paper
€ 319,00 Price incl. VAT
