APBMW S8-2 20cm sub

Audison

Discontinued

Your price:
€ 179,00
Price per single item (VAT included)
Type
Subwoofer
Speaker Size
200 mm
MAX Power
300 Watt
RMS Power
150 Watt
Frequency Response
40 - 500 Hertz
Sensitivity
91 dB
Impedance
2 Ohm
Weight
1,21 Kg
Installation Depth
38 mm

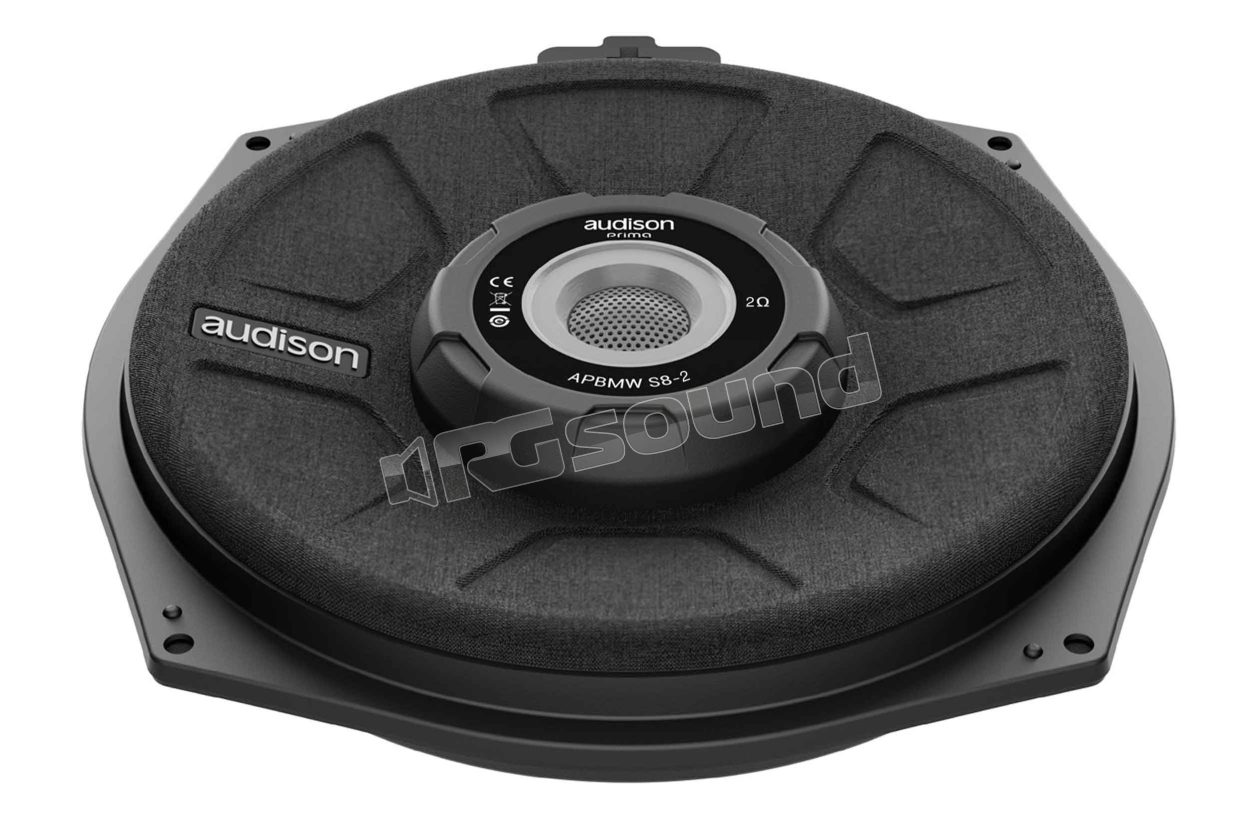

Audison APBMW S8-2 200 mm subwoofer, 2 Ohm impedance, specific for BMW and Mini car models

APBMW S8-2 is a subwoofer designed with electro-acoustic parameters that maximize performance for the factory under-seat enclosure, has an ABS plastic basket reinforced with fiberglass, and an acoustic structure with front magnet that minimizes installation depth, for perfect compatibility with the available spaces in BMW and Mini vehicles. Two 5 mm polyurethane gaskets, supplied with the APBMW S8-2, allow the subwoofer to fit perfectly into the box, decoupling it from vibrations.

The 200 mm (8") Audison APBMW S subwoofers are the Plug&Play replacement for OEM speakers, taking full advantage of the stock acoustic load, generating decisive and deep bass frequencies. You can choose between two models: APBMW S8-2 with 2 Ohm impedance and APBMW S8-4 with 4 Ohm impedance, recommended for the versatility of system configuration and connected with the AP8.9 bit, it can be configured in bridge mode delivering 130 W RMS to each APBMW S8-4 installed in the vehicle.

The 2 Ohm impedance of the APBMW S8-2 sub can be used in a fully active multi-amplified front system, maximizing the power of the AP 8.9 bit at 2 Ohm and using an additional 2 channels for the rear system.

The neodymium magnet available on both models allows greater power and control compared to a ferrite magnet.

Strengths of the APBMW S8-2 subwoofer

Developed with electro-acoustic parameters customized for BMW vehicles, it increases listening involvement, with powerful and defined bass frequencies, taking advantage of the acoustic loading offered by the position.

Neodymium magnetic group with reverse acoustic structure with internal cone, to maximize performance while keeping dimensions and weight to a minimum.

38 mm coil wound with aluminum support for high power dissipation and stability, even during high excursion.

Two 5mm thick gaskets supplied for installation in the factory location.

2 Ohm configuration for maximum efficiency in combination with AP 8.9 in active multi-amplification.

APBMW S8-2 technical specifications

Diameter 200 mm (8")
Maximum power 300 W
Nominal power 150 W
Impedance 2 Ω
Frequency response 40 ÷ 500 Hz
SPL 91 dB
Magnet dimensions D x d x h 48 x 18 x 7 mm (1.89 x 0.71 x 0.28")
Weight of each subwoofer 1.21 kg (2.67 lb)
Voice coil diameter Ø 50 mm (2")

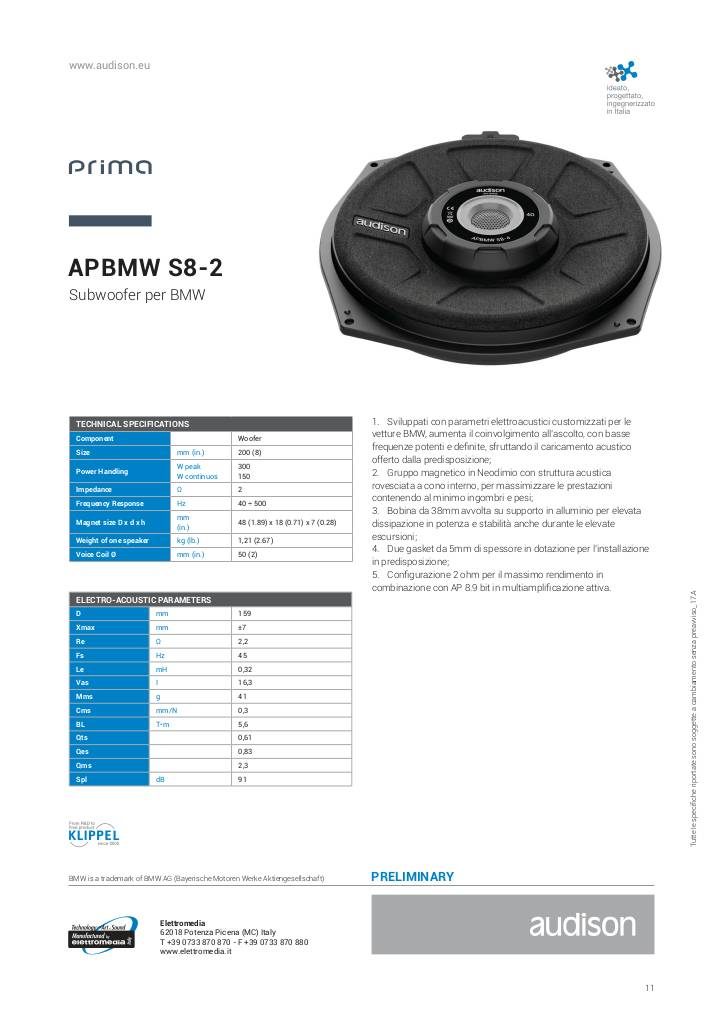

Scheda tecnica

n-20171117150843-apbmw-s8-2.pdf

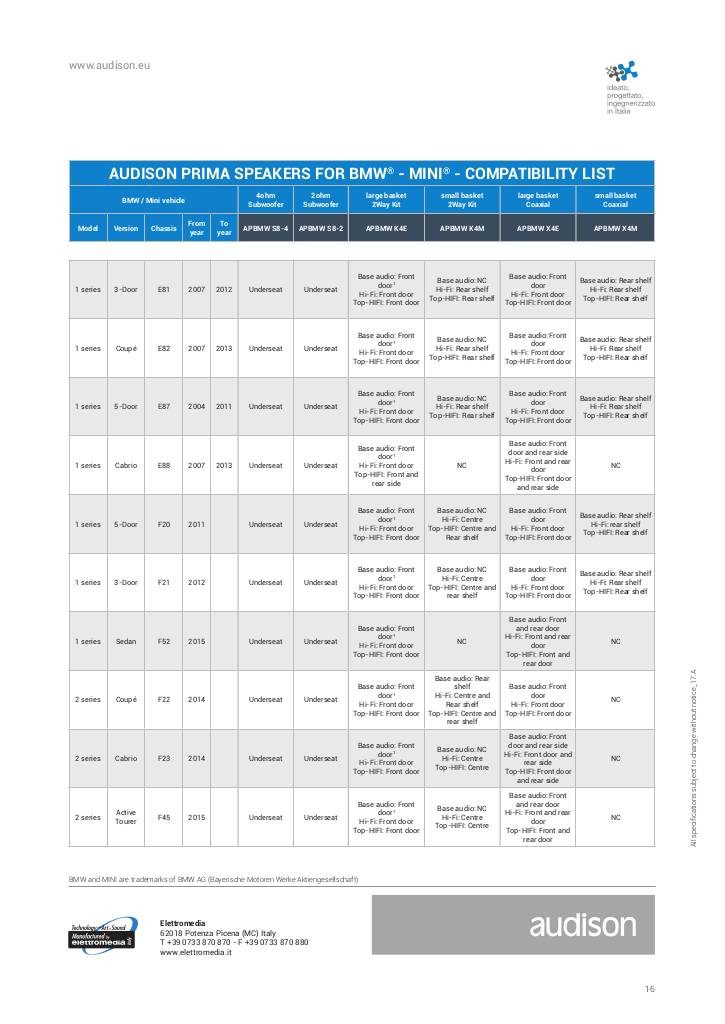

Tabella compatibilità

n-20171124104444-audison-tabella-bmw.pdf
Discontinued
