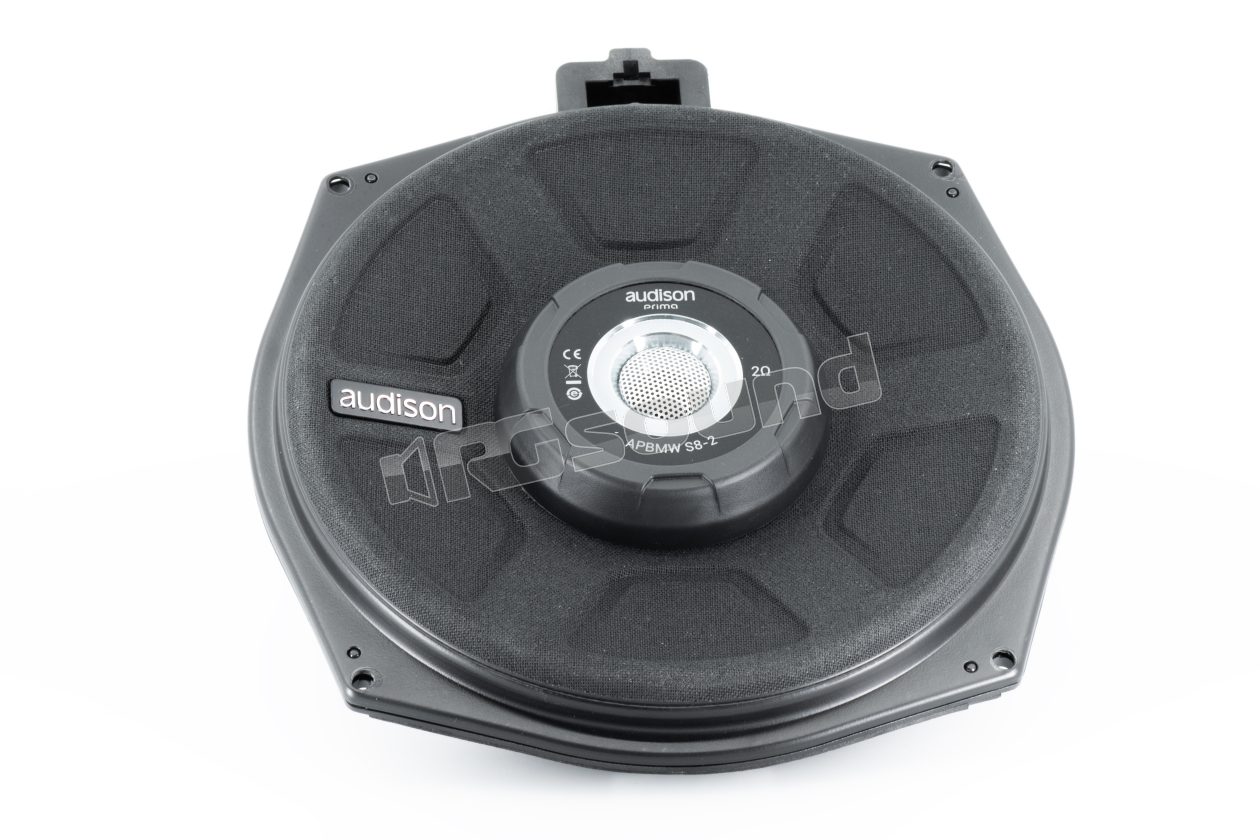

APBMW S8-2.2 B-stock 20cm under-seat subwoofer - ex demo - for BMW and Mini

Audison

Discontinued

Your price:
€ 149,00
Price per single item (VAT included)
Type
Subwoofer
Speaker Size
200 mm
MAX Power
300 Watt
RMS Power
150 Watt
Frequency Response
40 - 500 Hertz
Sensitivity
91 dB
Impedance
2 Ohm
Weight
1,2 Kg
Installation Depth
32 mm
Woofer Material
Cellulosa trattata

Audison APBMW S8-2.2 Subwoofer 20cm Under-Seat for BMW and Mini. Ex-demo Product, New, with Minor Installation Marks from In-Store Display

Subwoofer for BMW and MINI, features the same flat design and acoustic performance as the previous version, for perfect under-seat fitting. APBMW S8-2.2 fits all BMW and Mini models already compatible with the previous version. This new version has a further reduced mounting depth for compatibility with BMW G-series models, including the following models: X3G01, X3G08, X5G05, X4G02, X6G06.

Audison has engineered an under-seat woofer with a flat 200 mm chassis for BMW and MINI. These can be used as a replacement for OEM amplification, but best results are achieved when used in a system upgrade that includes Audison Forza bit amplifiers and BMW integration harnesses. Audison R&D used an injection-molded chassis with graphite fibers (to increase rigidity) and a neodymium magnet for a smaller size (important with the inverted magnet configuration). The 2"/50 mm voice coil is the largest used in any aftermarket BMW woofer.

The inverted magnet design has a vent at the top of the pole to extend thermal performance and power handling. The acoustically transparent fabric coating keeps debris away from the speaker cone, preventing sound distortion in the under-seat position. The 2Ω APSBMW S8-2.2 woofer allows more power to be delivered from a single amplifier channel. In many high-performance BMW systems, the under-seat woofer is used on a single set of channels as a midbass driver with intentionally limited sub-bass extension (while a larger subwoofer does its job in the trunk playing the lowest notes).

Please check the Audison Sound Pack Configurator for detailed compatibility information.

APBMW S8-2.2 Features

  • Developed with custom electro-acoustic parameters for BMW-Mini to increase listening engagement, through powerful and clean bass frequencies, exploiting the acoustic load provided by the factory enclosure.
  • Neodymium magnetic group with inverted acoustic structure featuring an internal cone, to maximize performance while minimizing size and weight.
  • 38 mm voice coil wound on an aluminum former for remarkable power dissipation and stability even with high excursions.
  • Two 5 mm gaskets provided for OEM positioning.
  • 2 ohm configuration for maximum output in combination with the AP 8.9 bit in active multi-amplification.

Audison APBMW S8-2.2 Technical Specifications

  • Nominal Diameter 200 mm (8")
  • Impedance 2 Ohm
  • Peak Power Handling 300 W
  • Continuous Power Handling 150 W
  • Sensitivity 91 dB
  • Frequency Response 40-500 Hz
  • Voice Coil Ø 50 mm
  • Chassis Material PLASTIC
  • Magnet Material NEODYMIUM
  • Magnet Dimensions D x d x h 48x18x7 mm (in.)
  • Voice Coil Material COPPER
  • Former Material ALUMINUM
  • Cone Material Pressed Paper
  • Surround Material RUBBER
  • Xmax 7 mm (0.28 inches)
  • Xmech 10 mm (0.39 inches)
  • Speaker Displacement Volume 1.2 l (0.042 ft)
  • Weight 1.21 kg

Electro-Acoustic Specifications

  • D 198.6 cm² (30.783 in²)
  • Re 2.2 Ohm
  • Fs 40 Hz
  • Le 0.3 mH
  • Vas 22.3 l (0.788 ft)
  • Mms 42 g (1.482 oz)
  • Cms 0.4 mm/N
  • BL 5.6 T-m
  • Qts 0.5
  • Qes 0.67
  • Qms 2.1
  • Reference Efficiency 0.18
Discontinued
