AP 2 MV Pair of 50mm Prima series Midrange speakers

Audison
Your price:
€ 109,00
Price per pair (VAT included)
In stock, ready to ship
Calculating shipping costs to

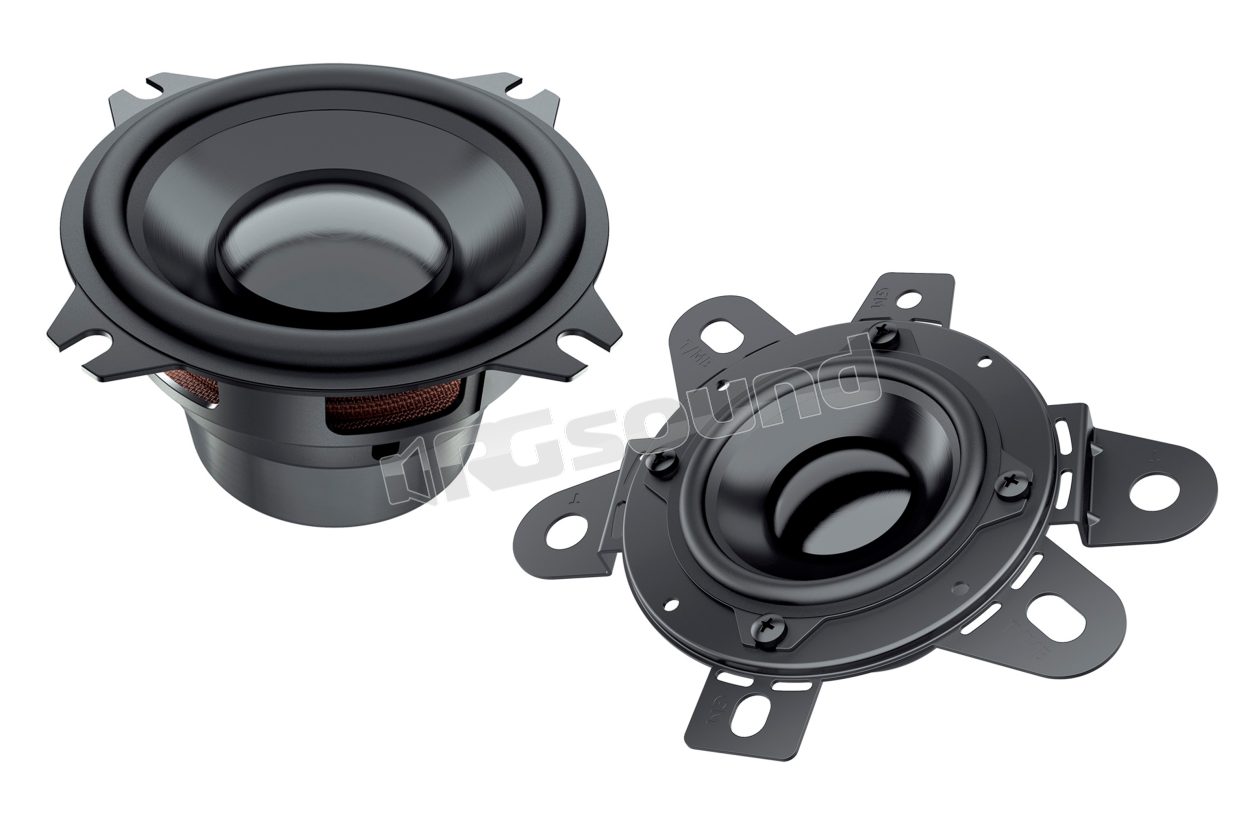

Audison AP 2 MV Pair of 50mm Mid Range Drivers Prima series

This pair of Mid Range drivers reproduces the entire range of midrange and high frequencies and is perfect for GM, Ford and Toyota vehicles with 50 mm (2 inch) OEM positioning on the dashboard or front pillar, where it is combined with an elliptical woofer in the car door. The included adapter allows direct OEM replacement on many General Motors, Toyota and Mercedes vehicles.

The compact dimensions and excellent electroacoustic parameters make it ideal also to be used as a midrange in 3-way systems, as a surround speaker or as a center channel, housed in OEM positioning, where space requirements would not allow the use of a speaker with a larger diameter.

The advantage of emitting the entire frequency spectrum by itself, responsible for creating the virtual soundstage with absolute phase coherence, ensures a wide acoustic scene concentrated in the upper part of the dashboard. The very low distortion and the absence of a crossover point in the midrange-high range also offers a natural and pleasant listening experience.

Through careful research and simulation, the research and development team was able to maximize electroacoustic performance for a typical OEM application.

The resonance frequency of 145 Hz, a very low value for a 50 mm (2 in.) speaker, was achieved thanks to the use of a 25 mm (1 in.) voice coil, ensuring controlled extension to low frequencies for an optimal crossover point with the woofer.

The aluminum cone, in combination with the copper shorting ring that flattens the impedance, allows the response to extend to 20 kHz. The special magnetic assembly made with dual symmetrical Neodymium magnet also contributes to achieving this exceptional high frequency extension while maintaining very compact dimensions.

This electroacoustic configuration resulted in a particularly wide frequency response, extending from 150 Hz to 20 kHz, giving the AP 2 the deserved name of wide range.

Audison AP 2 MV Technical Specifications

  • Nominal diameter 50 mm (2 in)
  • Impedance 4 Ohm
  • Power handling - Peak 50 W
  • Power handling - continuous 25 W
  • Sensitivity 84 dB
  • Frequency response 150 ÷ 20k Hz
  • Voice coil Ø 25 mm
  • Magnet material NEODYMIUM
  • Magnet dimensions D x d x h 24.9 x 5 mm (in.)
  • Voice coil material CCAW
  • Xmax 2.5 mm (0.1 in)

Electroacoustic specifications

  • D 49.1 cm² (7.611 in²)
  • Re 3.5 Ohm
  • Fs 145 Hz
  • Le 0.07 mH
  • Vas 0.36 l (0.013 ft)
  • Mms 1.68 g (0.059 oz)
  • Cms 0.7 mm/N
  • BL 2.8 T-m
  • Qts 0.64
  • Qes 0.70
  • Qms 7.7
  • General
  • Weight 0.15 kg
