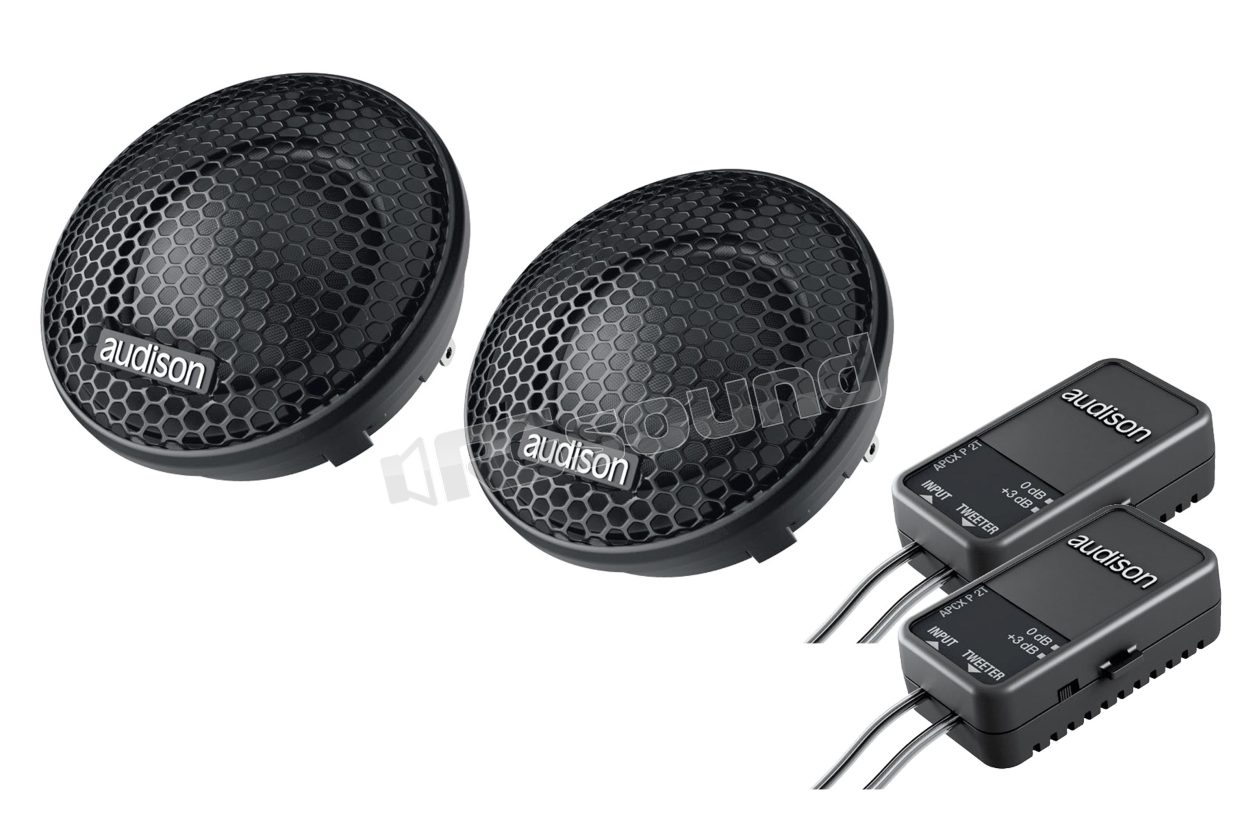

AP 1P Pair of 29mm tweeters with AIF technology

Audison
Your price:
€ 99,00
Price per pair (VAT included)
In stock, ready to ship
Calculating shipping costs to
Type
Tweeter
Dome Size
29 mm
MAX Power
150 Watt
Frequency Response
1200 - 25000 Hertz
Sensitivity
92 dB
Impedance
5,8 Ohm
Outer Diameter
43 mm
Installation Depth
12 mm
Tweeter Material
Tetolon

Audison AP 1P Pair of 29mm tweeters with AIF technology

The exclusive AIF technology (Any Install Faceplate) of the AP 1P tweeters provides the installer with 3 different possibilities for complete application versatility and a significant reduction in installation time. Motor with dual neodymium magnet, provides excellent high frequency extension and together with the 1" CCAW voice coil guarantees exceptional dynamic response.

AP 1P Features

  • AIF technology (Any Install Faceplate) for complete application versatility and a significant reduction in installation time.
  • Three mounting accessories are provided to offer a solution for any type of installation.
  • Magnetic group with dual neodymium magnets for excellent high frequency extension.
  • 1 inch CCAW voice coil. CCAW voice coil for superior dynamic response.
  • Dome profile optimized with FEM simulations for wide off-axis dispersion

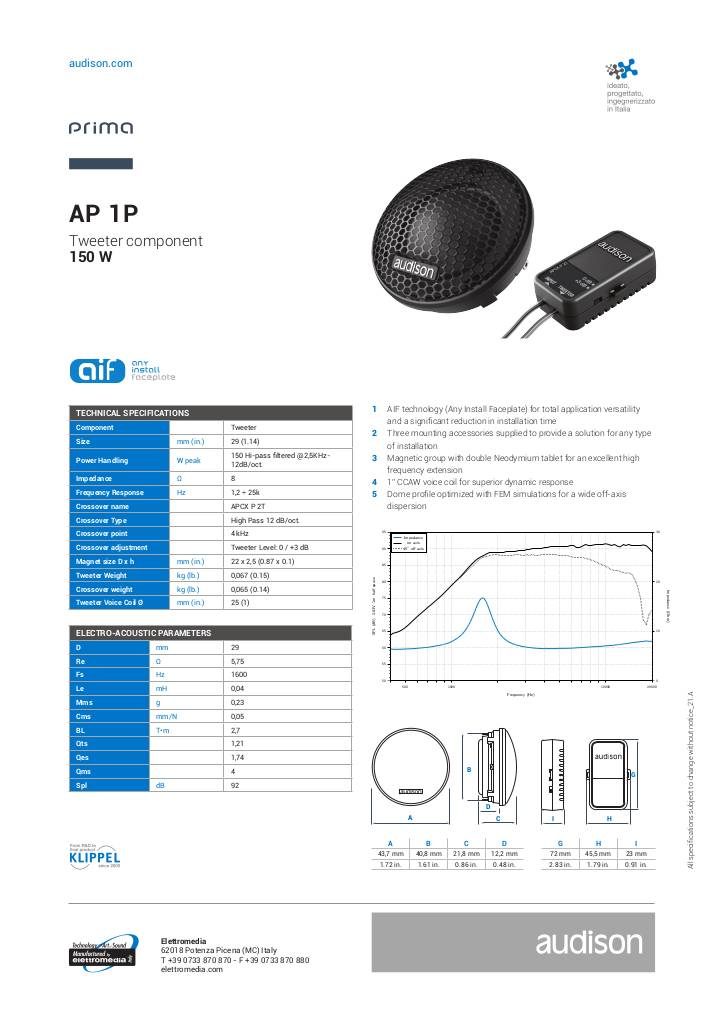

Scheda tecnica

n-20210217162147-audison-prima-ap1p-tech-sheet-rev21a.pdf

Audison AP 1P Tweeter Technical Specifications

  • Size 29 mm (1.14")
  • Power handling 150 W max. high pass filter 2.5 kHz @ 12 dB Oct.
  • Impedance 5.8 Ω
  • Frequency response 1.2 ÷ 25 kHz
  • Crossover APCX P 2T
  • High pass, 4kHz, 12 dB / oct.
  • Tweeter level: 0 / +3 dB
  • Sensitivity 92 dB / Spl
  • Neodymium magnet
  • Tweeter Voice Coil Ø25 mm (1")
  • Tetylon fiber dome
