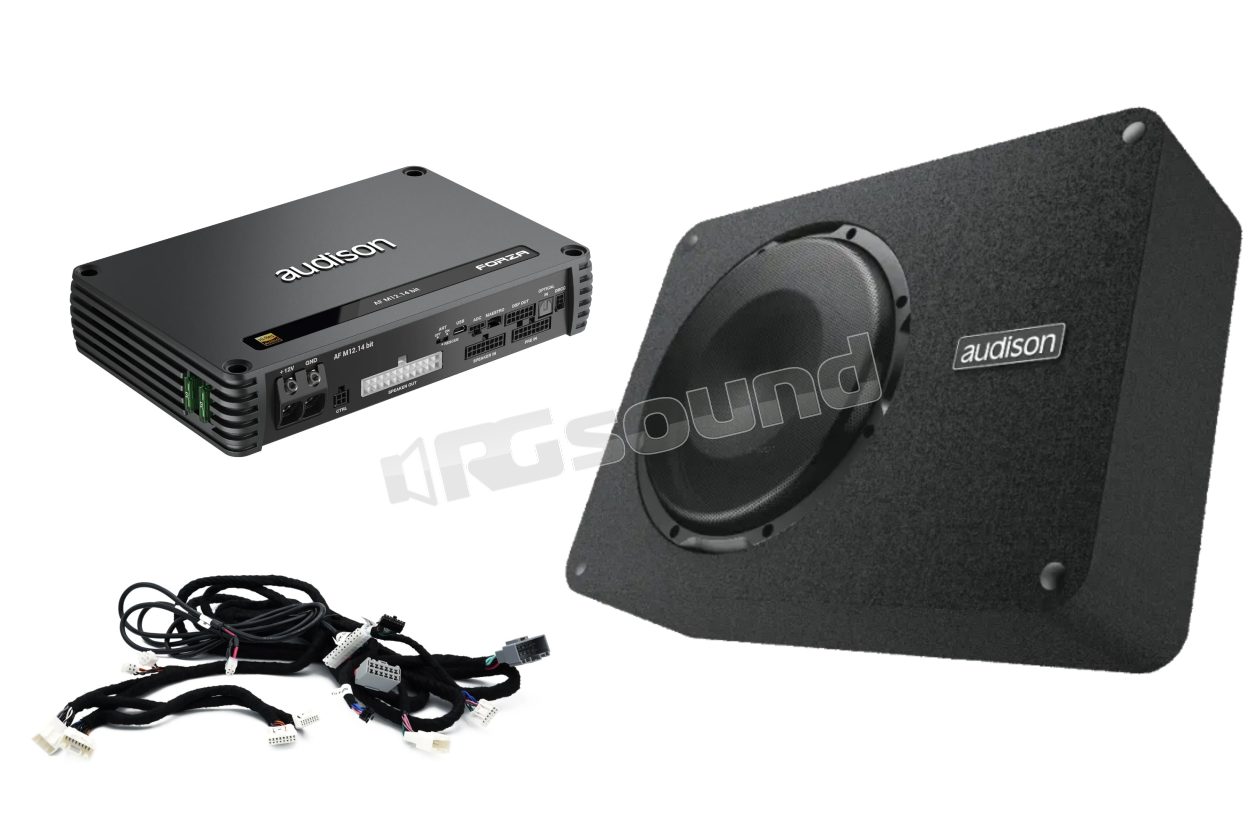

AF TSL 3YP AMP KIT DSP and Subwoofer upgrade kit for Tesla Premium Sound systems

Audison
Your price:
€ 1990,00
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to

Audison AF TSL 3YP AMP KIT DSP upgrade kit and Subwoofer for Tesla Premium Sound systems

The AF TSL 3YP AMP KIT is the Audison audio package specifically designed for Tesla Model 3 and Tesla Model Y with Premium audio system. Audison, with over thirty years of experience in Hi-End automotive audio, has developed a Plug & Play solution that integrates perfectly with the car's original architecture, respecting its design, functionality and philosophy. The heart of the system is the AF M12.14 bit DSP amplifier, designed for Tesla's 16V electrical environment and equipped with F4IN card. Combined with the sealed APBX 10 S4S subwoofer, optimized to replace the OEM unit, the kit offers greater headroom, deeper and more controlled bass and a wider and more defined soundstage.

But the real difference is the DSP tuning work performed directly by Audison engineers. Tesla's factory audio processing is neutralized and replaced by custom calibration, designed to guarantee clarity, tonal balance and emotional impact.

One of the strengths of the AF TSL 3YP AMP KIT is perfect integration with Tesla infotainment. All original functions are maintained, including subwoofer level control directly from the onboard interface, while improving stereo image and overall system linearity. The dedicated CN TSL 3YP 01 wiring, together with the specific Tesla mounting bracket, makes installation clean, reversible and fully compliant with OEM standards.

AF TSL 3YP AMP KIT Features

  • Dedicated audio upgrade for Tesla Model 3 and Model Y Premium
  • Plug & Play solution with no invasive modifications
  • Audison Hi-End sound quality with dedicated DSP tuning
  • Deeper bass, wider soundstage and greater involvement
  • Total integration with infotainment and original Tesla controls
  • Project developed specifically for Tesla's electrical environment

Audison AF TSL 3YP AMP KIT Technical Specifications

AF M12.14 bit

  • Nominal supply voltage / fuse: 11 ÷ 15 VDC / 2 x 30 A
  • Pulse operating voltage: 6.5 ÷ 17.5 VDC
  • Idle current: 1.68 A
  • Standby current consumption: 1.7 mA
  • Consumption @ 14.4 VDC, minimum load impedance (maximum music power): 45 A
  • REMOTE INPUT: 4 ÷15 VDC (1 mA)
  • Remote output: 6.5 ÷15 VDC (150 mA)
  • ART - Automatic remote on/off from Speaker-In 1.5 VDC
  • Efficiency at nominal power (RMS) at 14.4 VDC, 1% THD, 4Ω, All channels: 80%

Amplifier stage

  • Distortion - THD+N @ 1 KHz, 4Ω, 70% nominal power: 0.03%
  • Damping factor @ 1 kHz, 4Ω, 2 VRMS: 80
  • Bandwidth @ -3 dB: 10 Hz ÷ 42 kHz
  • Signal-to-noise ratio (A-weighted at 1 V input, nominal power) Master input: 98 dBA
  • Signal-to-noise ratio (A-weighted at nominal power) Optical input: 105 dBA
  • Minimum load impedance: 12Ch: 2Ω
  • 6Ch - (Bridge 1/2; 3/4; 5/6; 7/8; 9/10; 11/12): 4Ω
  • Continuous output power (RMS) at 14.4 VDC, 1% THD:
  • • 12 channels @ 4Ω: 60 W x 12
  • • 12 channels @ 2Ω: 90 W x 12
  • • 4Ch (Bridge 1/2; 3/4; 5/6; 7/8; 9/10; 11/12) @ 4Ω: 180 W x 6

CEA

  • Output power @ 4Ω, 1% THD+N, 14.4 V: 45 W
  • SN ratio (ref. 1 W output): 75.5 dB

Inputs Outputs

  • Pre-In (8 Ch): 0.6 ÷ 6 VRMS (15 kΩ Imp.)
  • Speaker-In (8 Ch + 4 Ch additional with optional F4IN card): 2.2 ÷ 22 VRMS (5 Ω Imp.)
  • Digital input: 1 x S/PDIF optical; Max 192 kHz / 24 bit + 1 x S/PDIF optical/coaxial with optional F2O card
  • DSP pre-output (2 channels): 5V RMS

Digital signal processor

  • DSP audio and converters: ADAU1467 automotive-qualified audio processor by Analog Devices.
  • 96 kHz processing. Analog Devices 3 A/D and D/A converters ADAU1978 (4 channels) and ADAU1966A (16 channels) (24 bit/192 kHz) for highest performance
  • Filter type: Full / High-pass / Low-pass / Band-pass
  • Filter mode and slope: Linkwitz-Riley @ 24/12/36/48 dB/oct.
  • Butterworth @ 6/12/18/24/30/36/42/48 dB/oct.
  • Bessel @ 6/12/18/24/30/36/42/48 dB/oct.
  • Chebyshev @ 6/12/18/24/30/36/42/48 dB/oct.
  • QLP @ 6 dB/oct.
  • Crossover frequency: 20 Hz ÷ 20 kHz
  • Phase control: 0° / 180°, All-Pass filters
  • Analog input equalizer (20 Hz ÷ 20 kHz): 12 Biquad + Delay
  • Output equalizer: Parametric/graphic Biquad: 15 poles, 20 Hz ÷ 20 kHz
  • Real-time audio monitoring of input and output: RTA
  • Time alignment distance: 0 ÷ 510 cm / 0 ÷ 200.8 inches
  • Time alignment delay: 0 ÷ 15 ms

APBX 10 S4S

  • Passive sealed enclosure subwoofer
  • 250 mm (10") size
  • Power handling 400 W continuous / 800 W peak
  • Impedance 4 Ω
  • Subwoofer dimensions mm 472 (18.58") x 334 (13.15") x 120 (4.72")
  • High flux density Ferrite magnet
  • Cotton-paper fiber pressed cone
  • Component weight kg 8.63

CN TSL 3YP 01

  • Dedicated wiring and specific Tesla mounting bracket
€ 1990,00 Price incl. VAT
