AF TSL 3YB AMP KIT DSP and Subwoofer upgrade kit for Tesla Premium Sound systems

Audison
Your price:
€ 1990,00
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to

Audison AF TSL 3YB AMP KIT DSP and Subwoofer upgrade kit for Tesla Base systems

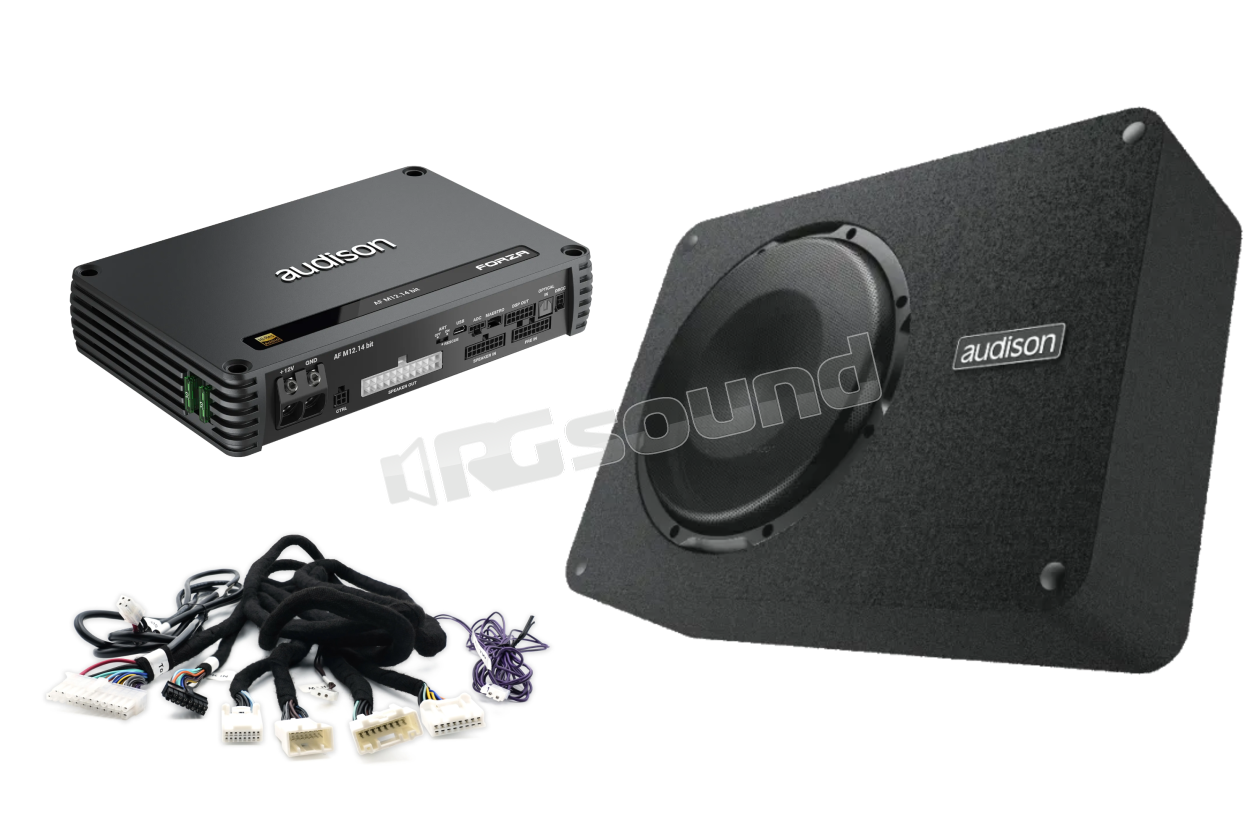

The AF TSL 3YB AMP KIT is an Audison audio package developed for Tesla Model 3 and Model Y, designed in particular for vehicles equipped with base audio system, but also compatible with premium configurations. The system's goal is to overcome the structural limitations of Tesla OEM audio, offering a Hi-End Plug & Play solution completely integrated with the vehicle.

While representing a reference in terms of technology and performance, the Tesla factory audio system is designed with evident compromises, especially in base versions: absence of dedicated subwoofer, inactive tweeters and strongly limited signal management. This kit directly addresses these critical issues, transforming the original system into a more complete, consistent and balanced configuration.

The heart of the AF TSL 3YB AMP KIT is the AF M12.14 bit DSP amplifier, a 12-channel platform that does not merely amplify the signal, but completely redefines its management. Audison has developed a specific tuning file for Tesla, the result of thorough work on timing, phase and equalization, which makes it possible to cancel OEM processing and rebuild a more correct and natural soundstage.

Supporting the system is the sealed APBX 10 S4S subwoofer, installed under the load floor. This solution makes it possible to obtain solid, controlled low frequencies free from parasitic noise, significantly improving the low-frequency response without compromising trunk space and functionality. The dedicated CN TSL 3YB 01 cabling and custom mounting bracket allow the amplifier to be installed discreetly and neatly, maintaining the vehicle's OEM aesthetics and logic.

AF TSL 3YB AMP KIT Features

  • Dedicated audio kit for Tesla Model 3 and Model Y, optimized for base systems
  • Audison DSP amplifier with specific tuning file for Tesla
  • Cancellation of OEM processing and soundstage reconstruction
  • Activation and amplification of OEM tweeters originally inactive
  • Dedicated subwoofer integrated under the load floor
  • Specific cabling and bracket for Plug & Play and reversible installation

Audison AF TSL 3YB AMP KIT Technical Specifications

AF M12.14 bit

  • Nominal supply voltage / fuse: 11 ÷ 15 VDC / 2 x 30 A
  • Impulse operating voltage: 6.5 ÷ 17.5 VDC
  • No-load current: 1.68 A
  • Standby current consumption: 1.7 mA
  • Consumption @ 14.4 VDC, minimum load impedance (maximum musical power): 45 A
  • REMOTE INPUT: 4 ÷15 VDC (1 mA)
  • Remote output: 6.5 ÷15 VDC (150 mA)
  • ART - Automatic remote on/off from Speaker-In 1.5 VDC
  • Efficiency at rated power (RMS) at 14.4 VDC, 1% THD, 4Ω, All channels: 80%

Amplifier stage

  • Distortion - THD+N @ 1 KHz, 4Ω, 70% Rated power: 0.03%
  • Damping factor @ 1 kHz, 4Ω, 2 VRMS: 80
  • Bandwidth @ -3 dB: 10 Hz ÷ 42 kHz
  • Signal-to-noise ratio (A weighted at 1 V input, rated power) Master input: 98 dBA
  • Signal-to-noise ratio (A weighted at rated power) Optical input: 105 dBA
  • Minimum load impedance: 12Ch: 2Ω
  • 6Ch - (Bridge 1/2; 3/4; 5/6; 7/8; 9/10; 11/12): 4Ω
  • Continuous output power (RMS) at 14.4 VDC, 1% THD:
  • • 12 channels @ 4Ω: 60 W x 12
  • • 12 channels @ 2Ω: 90 W x 12
  • • 4Ch (Bridge 1/2; 3/4; 5/6; 7/8; 9/10; 11/12) @ 4Ω: 180 W x 6

CEA

  • Output power @ 4Ω, 1% THD+N, 14.4 V: 45 W
  • SN ratio (ref. 1 W output): 75.5dB

Inputs Outputs

  • Pre-In (8 Ch): 0.6 ÷ 6 VRMS (15 kΩ Imp.)
  • Speaker-In (8 Ch + 4 Ch additional with optional F4IN card): 2.2 ÷ 22 VRMS (5 Ω Imp.)
  • Digital input: 1 x S/PDIF optical; Max 192 kHz / 24 bit + 1 x S/PDIF optical/coaxial with optional F2O card
  • DSP pre-output (2 channels): 5V RMS

Digital signal processor

  • DSP audio and converters: Audio processor qualified for vehicles ADAU1467 by Analog Devices.
  • Processing at 96 kHz. Analog Devices 3 A/D and D/A converters ADAU1978 (4 channels) and ADAU1966A (16 channels) (24 bit/192 kHz) for highest performance levels
  • Filter type: Full / High Pass / Low Pass / Band Pass
  • Filter mode and slope: Linkwitz-Riley @ 24/12/36/48 dB/oct.
  • Butterworth @ 6/12/18/24/30/36/42/48 dB/oct.
  • Bessel @ 6/12/18/24/30/36/42/48 dB/oct.
  • Chebyshev @ 6/12/18/24/30/36/42/48 dB/oct.
  • QLP @ 6 dB/oct.
  • Crossover frequency: 20 Hz ÷ 20 kHz
  • Phase control: 0° / 180°, All-Pass filters
  • Analog input equalizer (20 Hz ÷ 20 kHz): 12 Biquad + Delay
  • Output equalizer: Parametric/graphic Biquad: 15 poles, 20 Hz ÷ 20 kHz
  • Real-time audio monitoring of input and output: RTA
  • Time alignment distance: 0 ÷ 510 cm / 0 ÷ 200.8 inches
  • Time alignment delay: 0 ÷ 15 ms

APBX 10 S4S

  • Passive closed-box subwoofer
  • Dimensions 250 mm (10")
  • Handled power 400 W continuous / 800 W peak
  • Impedance 4 Ω
  • Subwoofer dimensions mm 472 (18.58") x 334 (13.15") x 120 (4.72")
  • High flux density Ferrite magnet
  • Pressed cotton-fiber paper cone
  • Component weight kg 8.63

CN TSL 3YB 01

Dedicated cabling with custom bracket

€ 1990,00 Price incl. VAT
