ACS110LG-TW1 25 cm sub with Class D amplifier - audiophile system

JL Audio
Your price:
€ 989,00
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
Powered subwoofer
Speaker Size
250 mm
RMS Power
400 Watt
Frequency Response
50 - 200 Hertz
Impedance
0.25 Ohm
Weight
9,12 Kg
Enclosure Size
470 x 283 x 127 mm
Enclosure Type
Sealed Enclosure

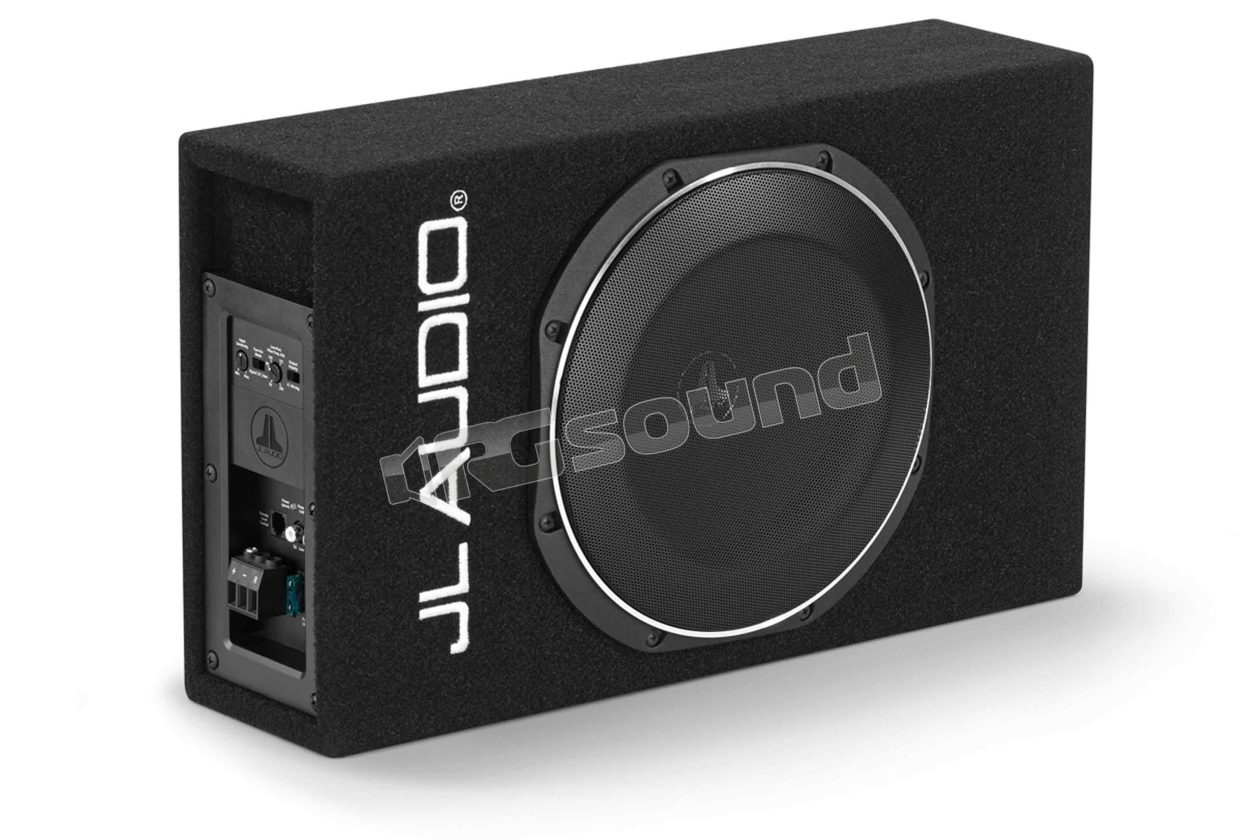

JL Audio ACS110LG-TW1 powered subwoofer in sealed enclosure covered with high-quality black carpet

10TW1 subwoofer with Class D amplifier and 400W of power at 0.25 Ohm.

Housing a proprietary Class D amplifier, this PowerWedge+ system includes the subwoofer employing JL Audio's exclusive DCD amplification technology purposefully engineered for ultra-low impedance and to extract maximum power from the TW1 sub. Combining direct power conversion with an ultra-high current output section, DCD amplifiers are free of conventional switching power supplies, allowing them to generate remarkable power with unprecedented efficiency.

JL Audio ACS110LG-TW1 is designed to deliver astounding bass with an enclosure depth of only 127 mm, carefully engineered for optimal alignment of the 10TW1 sub and optimized through repeated listening sessions.

Integration with OEM and aftermarket head units is extremely simple thanks to a variety of input options and auto-turn-on functionality (via signal sensing or DC offset detection). Also included is a variable-frequency low-pass filter (50-200 Hz), along with an output polarity control switch. The addition of an optional RBC-1 remote subwoofer level control (sold separately) allows you to control subwoofer levels directly from the driver's seat. A quick-disconnect power connector simplifies subwoofer removal when additional space is needed.

Note: DCD amplified systems use very specific components. Never use a DCD amplifier or its associated subwoofers with incompatible non-DCD products. This could void the warranty and cause serious damage.

JL Audio ACS110LG-TW1 main features

Finish: high-quality black automotive carpet with silver "JL AUDIO" embroidery on the front panel. A steel grille is included to protect the subwoofer driver.

Amplifier Power: built-in Class D DCD amplifier (400 W @ 0.25 Ω)

Nominal Impedance: 0.25 Ω

JL Audio ACS110LG-TW1 technical specifications

Continuous Power Handling (RMS) Built-in amplifier 400 W @ 0.25 Ω

System Nominal Impedance 0.25 Ω

Input Voltage Range @ RCA Inputs 70 mV - 1.40 V RMS

Input Voltage Range @ High-Level Inputs 280 mV - 5.4 V RMS

Recommended Copper Power / Ground Wire Gauge 8 AWG wire

Fuse Rating 30 A (ATO or ATC)

Enclosure Type Sealed

Finish Black carpet

Grille Included Black Steel Mesh

Filter Mode(s) Low-Pass only

Filter Slope(s) 12 dB/octave

Filter Frequency Range 50 Hz - 200 Hz

Output Polarity Switch

Remote Subwoofer Level Control Optional (RBC-1)

JL Audio ACS110LG-TW1 dimensions

External Width (W) 18.5 in / 470 mm

External Height (H) 11.125 in / 283 mm

External Depth (D) 5.0 in / 127 mm

Net Weight 20.1 lb / 9.12 kg

Scheda tecnica

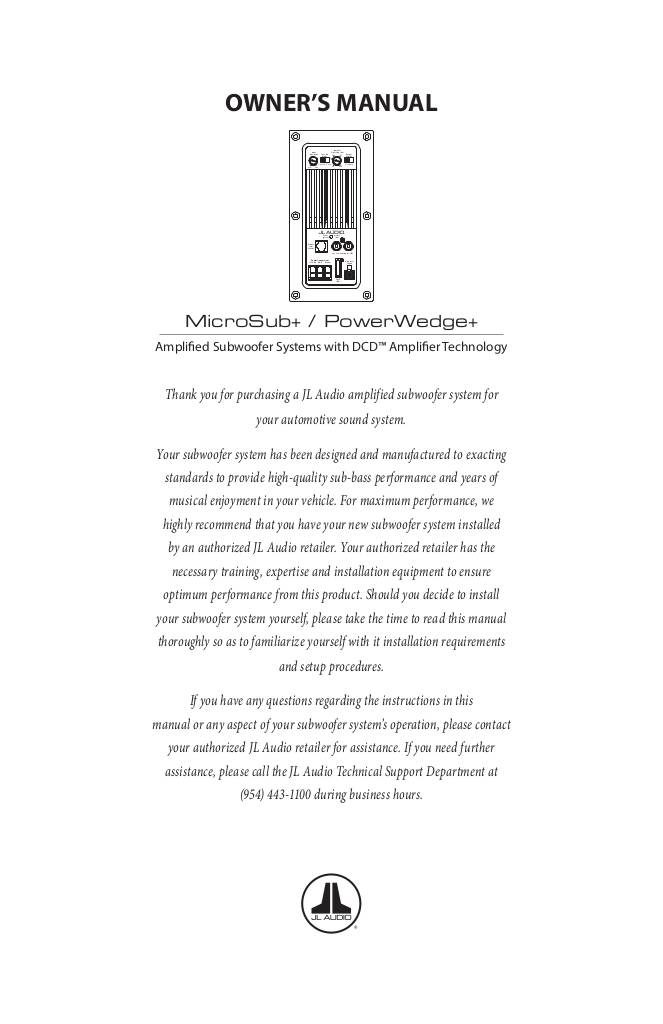

n-20180629103238-acp-acs-enc-man.pdf
