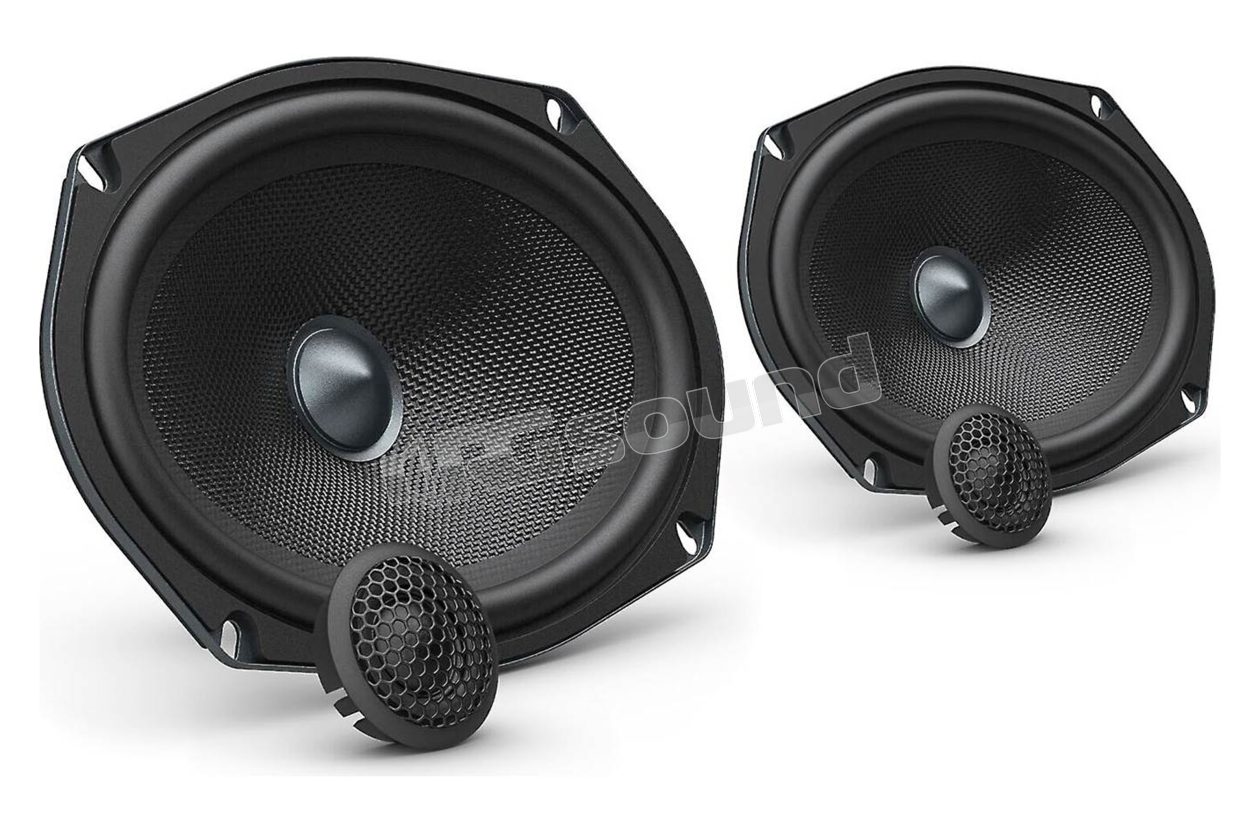

A69CS2 6x9'' Altitude series speaker system with 100 Watt RMS

Audiocontrol
Your price:
€ 255,60
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
2-way separate kit
Frequency Response
55 - 20000 Hertz
Woofer Size
165x229 mm
Tweeter Size
25 millimetri
RMS Power
100 Watt
Sensitivity
89,9 dB
Impedance
4 Ohm
Woofer Material
Fibra di vetro
Tweeter Material
Cupola in seta

Audiocontrol A69CS2 Altitude Series: 2-way speaker kit with 6x9" woofer, crossover and 1" tweeter, 100 W RMS power, 4 Ohm

The A69CS2 speakers from the Altitude series are designed for those who want more than just music: they are dedicated to those seeking the perfect soundtrack for every mile, every moment.


The Altitude series speakers are engineered to deliver clarity, control and depth, starting with a precisely molded fiberglass cone that delivers warm and accurate sound. An aluminum phase plug improves sensitivity and extends frequency response, ensuring that music remains sharp and engaging. A durable butyl rubber surround keeps low frequencies responsive, while a silk dome tweeter adds a soft and detailed touch to every high note. The result? Consistent performance on every drive.

Key Features

  • Wide frequency response: the design with separate woofer and tweeter
  • ensures balanced sound across the entire audio spectrum
  • Lightweight aluminum dustcap: improves sensitivity and extends frequency response
  • Precisely molded fiberglass cone: ensures warm and accurate sound reproduction
  • Durable butyl rubber surround: improves performance and control of low frequencies
  • Silk dome tweeter: ensures smooth and detailed response to high frequencies
  • Structurally reinforced thin steel basket: allows for easy installation and space-saving mounting
  • Improved system efficiency: matched drivers and included passive crossovers ensure clean signal routing and optimal power delivery
  • Designed and made in the United States: discover the excellence of American engineering

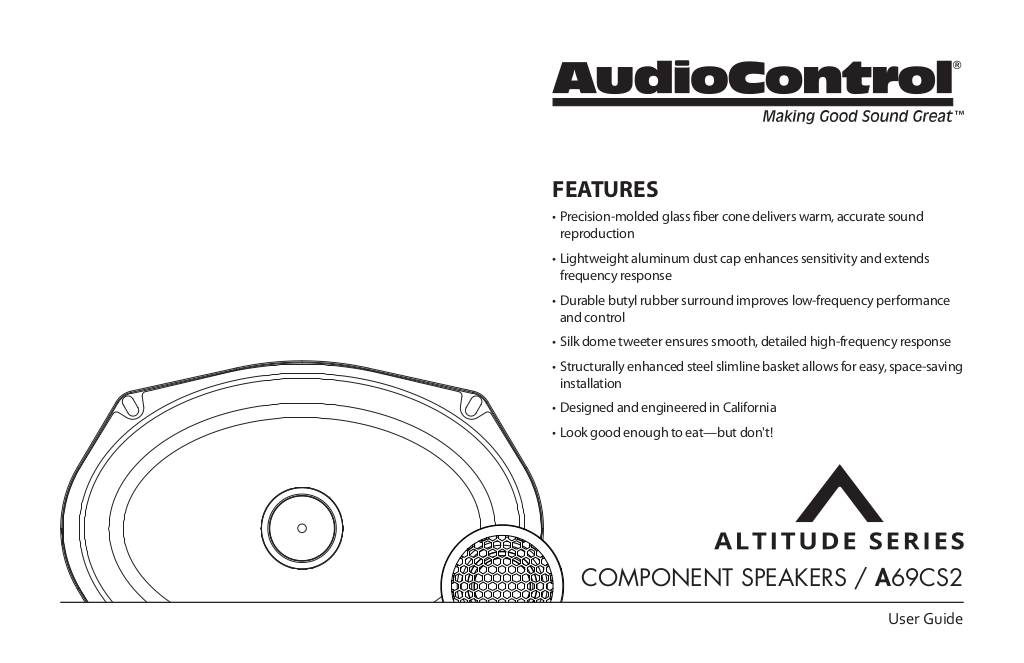

Manuale utente

n-20260702104242-altitude-a69cs2-user-manual-rev-a3.pdf

Audiocontrol A69CS2 technical specifications

  • Power (RMS): 100 Watt
  • Impedance: 4 Ohm
  • DC resistance (Re): 3.3 ohm
  • Voice coil (Tw/Mid): 0.8 / 1.2 in (20 / 30 mm)
  • System frequency response: 55 Hz to 20,000 Hz
  • Sensitivity*: 86.9 dB 1 W / 1 m | 89.9 dB at 2.83 V / 1 m

Woofer Dimensions

  • Overall diameter (A): 6.43 x 9.27 inches / 163.5 x 235.5 mm
  • Mounting hole diameter (B): 5.67 x 8.23 inches / 144 x 209 mm
  • Mounting depth (C): 2.67 inches / 68 mm
  • Total depth (D): 2.91 inches / 74 mm

Tweeter Dimensions

  • Overall diameter (with housing) (E): 1.67 inches / 42.5 mm
  • Mounting hole diameter (F): 1.37 inches / 35 mm
  • Mounting depth (G): 0.39 inches / 10 mm
  • Overall depth (with housing) (H): 0.73 inches / 18.5 mm

Crossover Dimensions

  • Length (I): 3.6 inches / 92 mm
  • Width (J): 1.3 inches / 34 mm
  • Height (K): 0.94 inches / 24 mm

BOX CONTENTS: (2) A69CS2 speakers and tweeters
