A69 6x9'' Coaxial Speakers Altitude Series

Audiocontrol
Your price:
€ 189,10
Price per pair (VAT included)
Available on backorder
Calculating shipping costs to
Type
Coaxial
Speaker Size
6x9''
Coaxial Type
2-way
Frequency Response
55 - 20000 Hertz
RMS Power
100 Watt
Sensitivity
89,5 dB
Impedance
4 Ohm
Woofer Material
Fibra di vetro
Tweeter Material
Cupola in seta

Audiocontrol A69 pair of 6x9" coaxial speakers Series Altitude, 100 W RMS, 4 Ohm

The Altitude series speakers are designed to guarantee clarity, control and depth, starting with a precisely molded fiberglass cone that delivers warm and accurate sound. A durable butyl rubber surround ensures good bass response, while a silk dome tweeter adds a soft and detailed touch to every high note. A coaxial speaker is an integrated system that combines a mid-bass/woofer driver with a tweeter mounted centrally on a common axis. This design enables accurate reproduction of both low and high frequencies from a single speaker position, offering an efficient and simplified upgrade for OEM audio systems.

Main features of the A69 speakers

  • Coaxial speakers: combine the tweeter and woofer in a single unit for full-range sound
  • Precisely molded fiberglass cone: guarantees warm and accurate sound reproduction
  • Durable butyl rubber surround: improves bass performance and control
  • Silk dome tweeter: guarantees smooth and detailed high frequency response
  • Reinforced thin steel basket: allows for easy and space-saving installation
  • Optimized system efficiency: a reduced number of components and signal paths reduces
  • overall system complexity and power consumption.
  • Designed and made in the United States: discover the excellence of American ingenuity

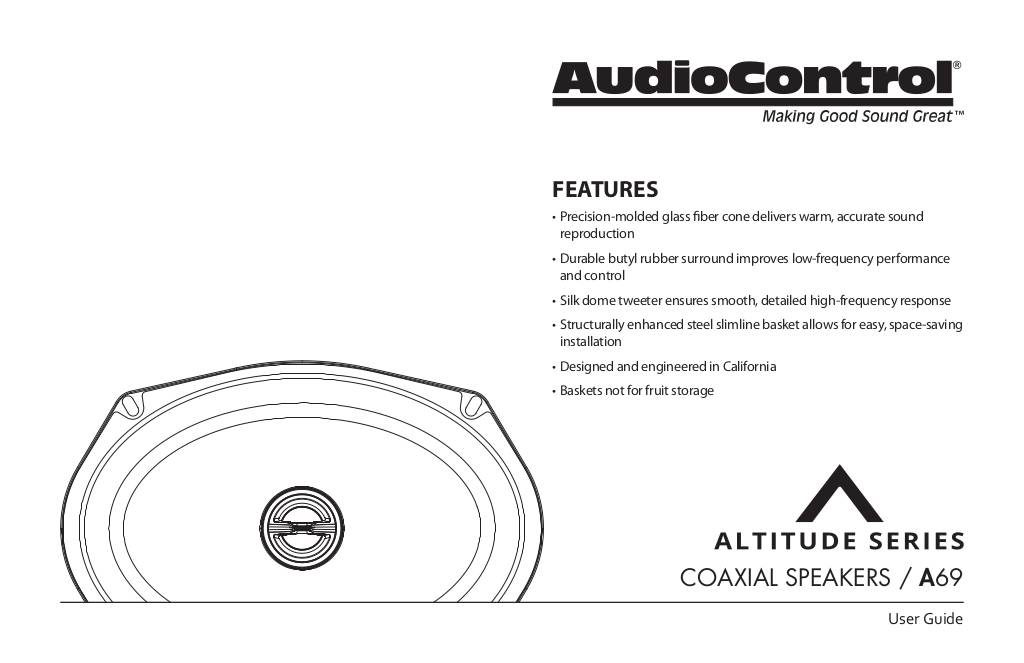

Manuale utente

n-20260702105638-altitude-a69-user-manual-rev-a3.pdf

Audiocontrol A69 technical specifications

  • Power (RMS): 100 Watt
  • Impedance: 4 Ohm
  • Direct current resistance (Re): 3.3 ohm
  • Voice coil (Tw/Mid): 0.8 / 1.2 in (20 / 30 mm)
  • System frequency response: 55 Hz to 20,000 Hz
  • Sensitivity*: 86.5 dB 1 W / 1 m | 89.5 dB at 2.83 V / 1 m
  • Overall diameter (A): 6.43 x 9.27 inches / 163.5 x 235.5 mm
  • Mounting hole diameter (B): 5.67 x 8.23 inches / 144 x 209 mm
  • Mounting depth (C): 2.67 inches / 68 mm
  • Total depth (D): 2.91 inches / 74 mm
