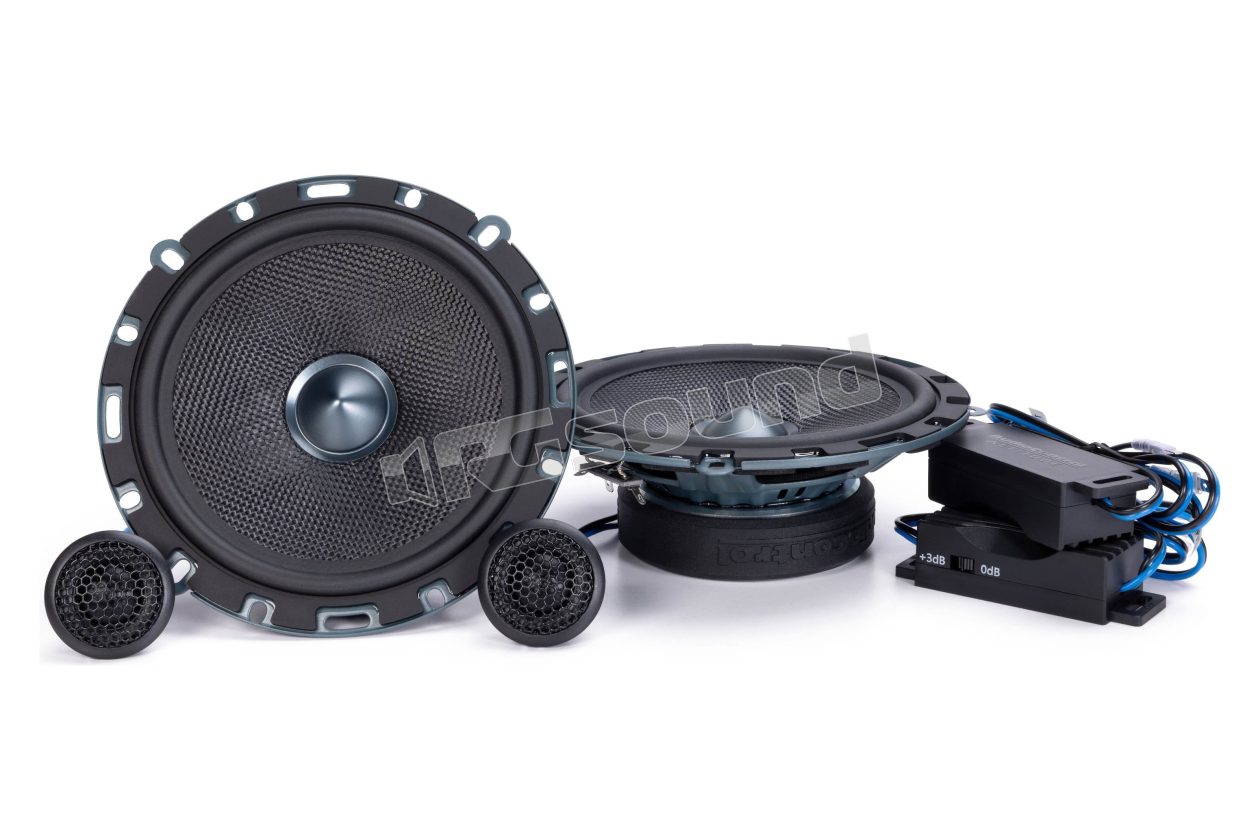

A65CS2 16.5 cm Altitude series speaker system with 100 Watt RMS

Audiocontrol
Your price:
€ 208,10
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
2-way separate kit
Frequency Response
65 - 20000 Hertz
Woofer Size
165 mm
Tweeter Size
25 millimetri
RMS Power
100 Watt
Sensitivity
89,5 dB
Impedance
4 Ohm
Woofer Material
Fibra di vetro
Tweeter Material
Cupola in seta

Audiocontrol A65CS2 Altitude Series: 2-way speaker kit with 6.5" woofer and 1" tweeter, 100 W RMS power, 4 Ohm

The Altitude Series speakers are designed to deliver clarity, control, and depth, starting with a precisely molded fiberglass cone that offers warm and accurate sound. An aluminum anti-phase cap improves sensitivity and extends frequency response, ensuring that music stays crisp and engaging. A durable butyl rubber surround keeps low frequencies responsive, while a silk dome tweeter adds a soft and detailed touch to every high note. The result? Consistent performance on every drive.

Key features of the A65CS2 kit

  • Wide frequency response: the design with separate woofer and tweeter
  • ensures balanced sound across the entire audio spectrum
  • Lightweight aluminum dust cap: improves sensitivity and extends
  • frequency response
  • Precisely molded fiberglass cone: ensures warm and accurate sound reproduction
  • Durable butyl rubber surround: improves performance and low-frequency control
  • Silk dome tweeter: ensures smooth and detailed high-frequency response
  • Thin steel basket
  • structurally reinforced: allows for easy and space-saving installation
  • Improved system efficiency: matched drivers and passive crossovers
  • included ensure clean signal routing and optimal power delivery
  • Designed and made in the United States: discover the excellence of American ingenuity

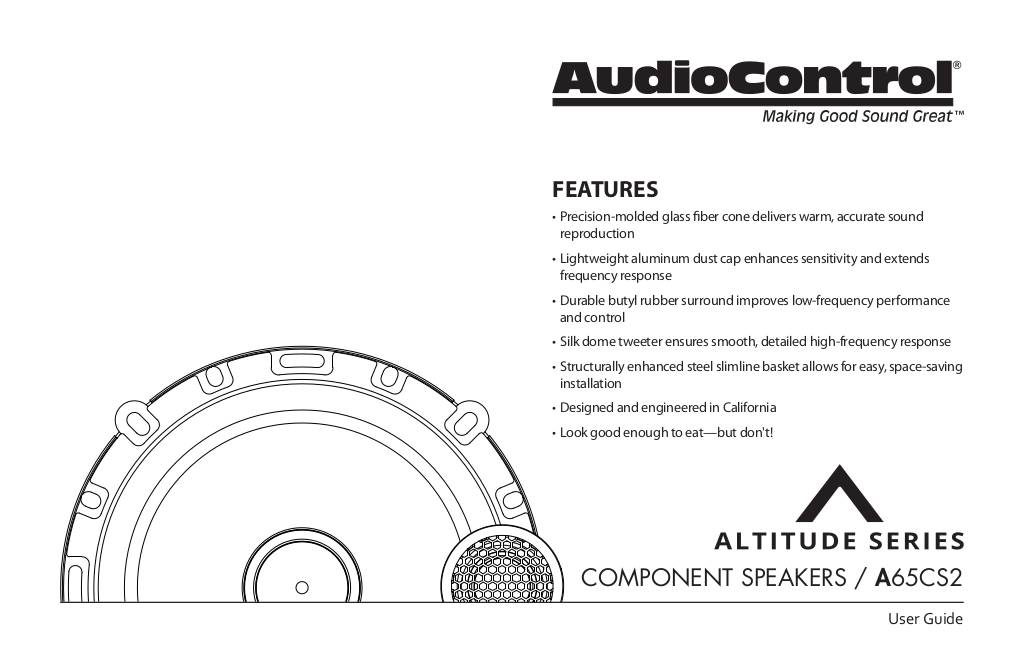

Manuale utente

n-20260702103125-altitude-a65cs2-manual-rev-a3.pdf

Audiocontrol A65CS2 technical specifications

  • Power (RMS): 100 Watt
  • Impedance: 4 Ohm
  • Direct current resistance (Re): 3.3 ohm
  • Voice coil (Tw/Mid): 0.8 / 1.2 in (20 / 30 mm)
  • System frequency response: 65 Hz to 20,000 Hz
  • Sensitivity*: 86.5 dB 1 W / 1 m | 89.5 dB at 2.83 V / 1 m

Woofer dimensions

  • Overall diameter (A): 6.53 inches / 166 mm
  • Mounting hole diameter (B): 5.47 in / 139 mm
  • Mounting depth (C): 2.04 in / 68 mm
  • Total depth (D): 2.40 in / 74 mm

Tweeter dimensions

  • Overall diameter (with housing) (E): 1.67 in / 42.5 mm
  • Mounting hole diameter (F): 1.37 in / 35 mm
  • Mounting depth (G): 0.39 in / 10 mm
  • Total depth (with housing) (H): 0.73 in / 18.5 mm

Crossover dimensions

  • Length (I): 3.6 inches / 92 mm
  • Width (J): 1.3 inches / 34 mm
  • Height (K): 0.94 inches / 24 mm

PACKAGE CONTENTS: (2) A65CS2 Speakers and tweeters,

€ 208,10 Price incl. VAT
