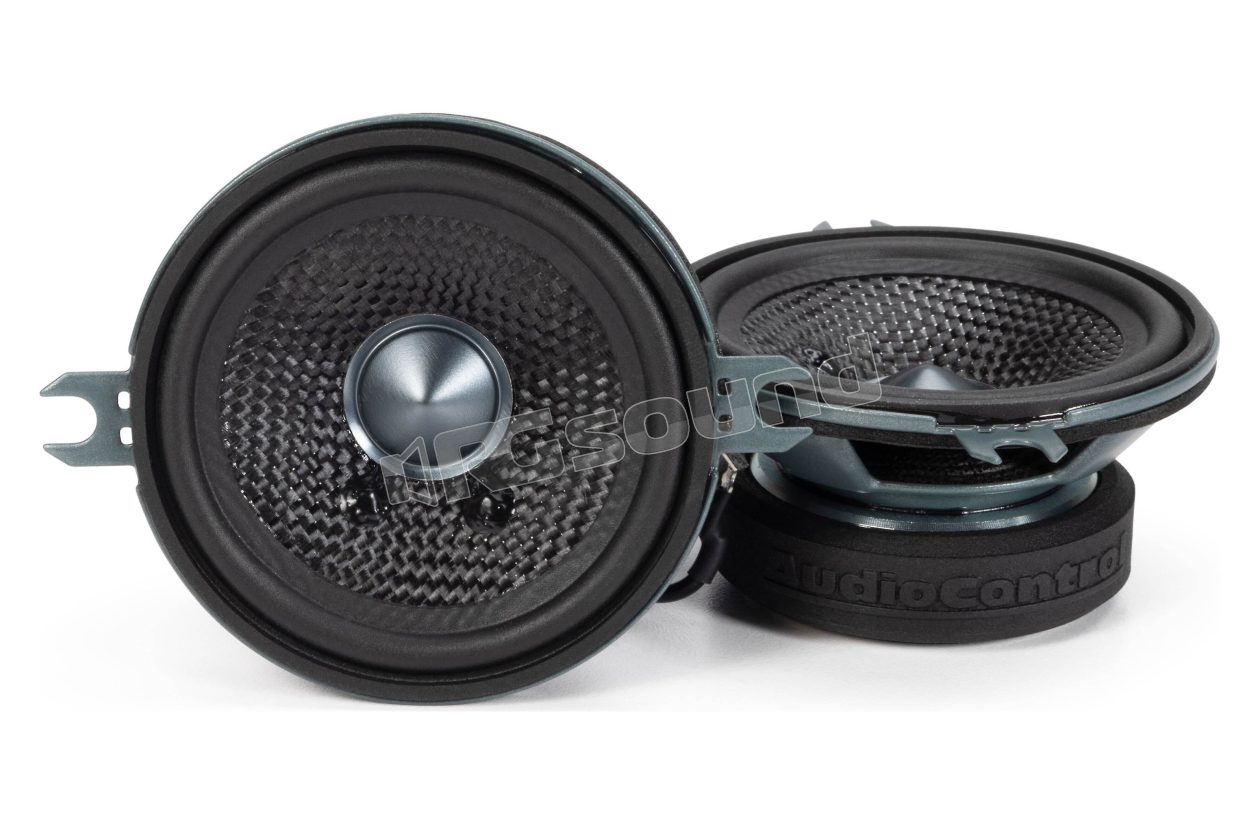

A275C 70mm Altitude Series Midrange

Audiocontrol
Your price:
€ 75,10
Price per pair (VAT included)
Available on backorder
Calculating shipping costs to
Type
Midrange
Speaker Size
70 mm
RMS Power
50 Watt
Frequency Response
125 - 20000 Hertz
Sensitivity
85,6 dB
Impedance
4 Ohm
Installation Depth
32,5 mm
Midrange Cone Material
Fibra di vetro

Audiocontrol A275C pair of 70mm Altitude Series midrange, 50 W RMS, 4 Ohm

The speakers of the Altitude series are designed to guarantee clarity, control and depth, starting with a precisely molded fiberglass cone that offers warm and accurate sound. A durable butyl rubber surround ensures good response to low frequencies, while a silk dome tweeter adds a soft and detailed touch to every high note. A coaxial speaker is an integrated system that combines a mid-bass/woofer driver with a tweeter mounted centrally on a common axis. This design allows for accurate reproduction of both low and high frequencies from a single speaker location, offering an efficient and simplified upgrade for OEM audio systems.

Main features of the A275C speakers

  • Wide frequency response: the wide bandwidth allows perfect integration in both 2-way and 3-way systems
  • Lightweight aluminum dust cap: improves sensitivity and extends frequency response
  • Precisely molded fiberglass cone: ensures warm and accurate sound reproduction
  • Durable butyl rubber surround: improves performance and control at low frequencies
  • In-line filter: for precise frequency control
  • Thin reinforced steel basket: allows for easy and space-saving installation
  • Simplified installation: dual mounting options, direct wiring and universal dimensions
  • ensure trouble-free installation
  • Designed and made in the United States: discover the excellence of American ingenuity

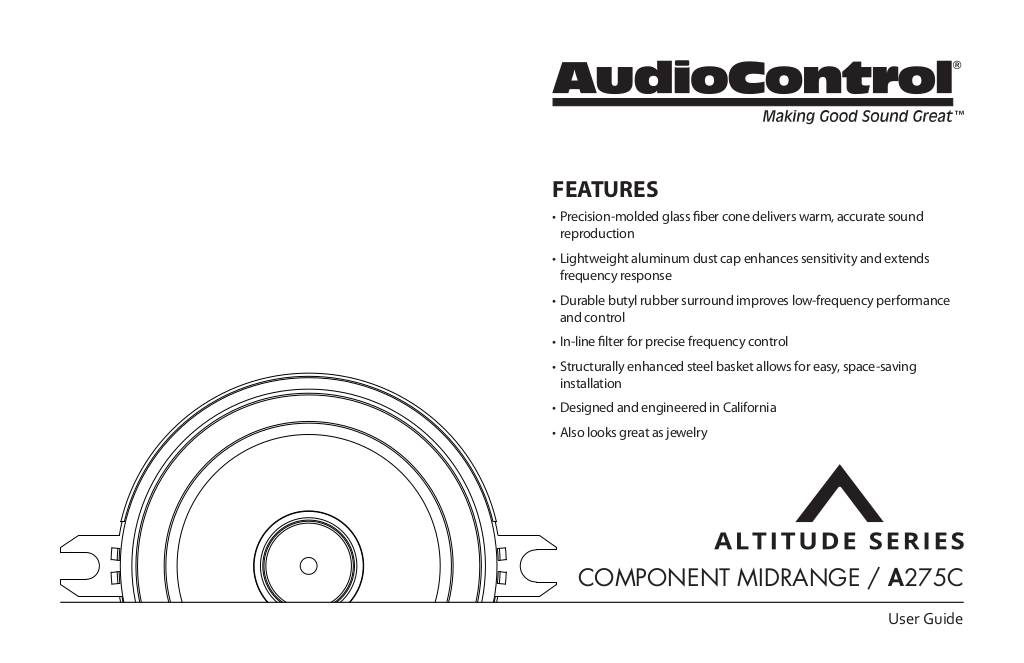

Manuale utente

n-20260702115340-altitude-a275-user-manual-rev-a3.pdf

Audiocontrol A275C technical specifications

  • Power (RMS): 50 Watt
  • Impedance: 4 Ohm
  • Direct current resistance (Re): 3.6 ohm
  • Voice coil: 0.62 in (16 mm)
  • System frequency response: from 125 Hz to 20,000 Hz
  • Sensitivity*: 82.6 dB 1 W / 1 m | 85.6 dB at 2.83 V / 1 m

Dimensions

  • Outer diameter (A): 2.85 inches / 72.3 mm
  • Mounting hole diameter (B): 2.55 inches / 65 mm
  • Mounting depth (C): 1.28 inches / 32.5 mm
  • Total depth (D): 1.45 inches / 37 mm
