9.1T-28 High-end 1.1" dome tweeter, 9000 Series

ESB car audio
Your price:
€ 713,00
Price per pair (VAT included)
Available on backorder
Calculating shipping costs to
Type
Tweeter
MAX Power
220 Watt
RMS Power
100 Watt
Frequency Response
1,4 KHz - 25 KHz Hertz
Sensitivity
94.5 dB
Impedance
4 Ohm

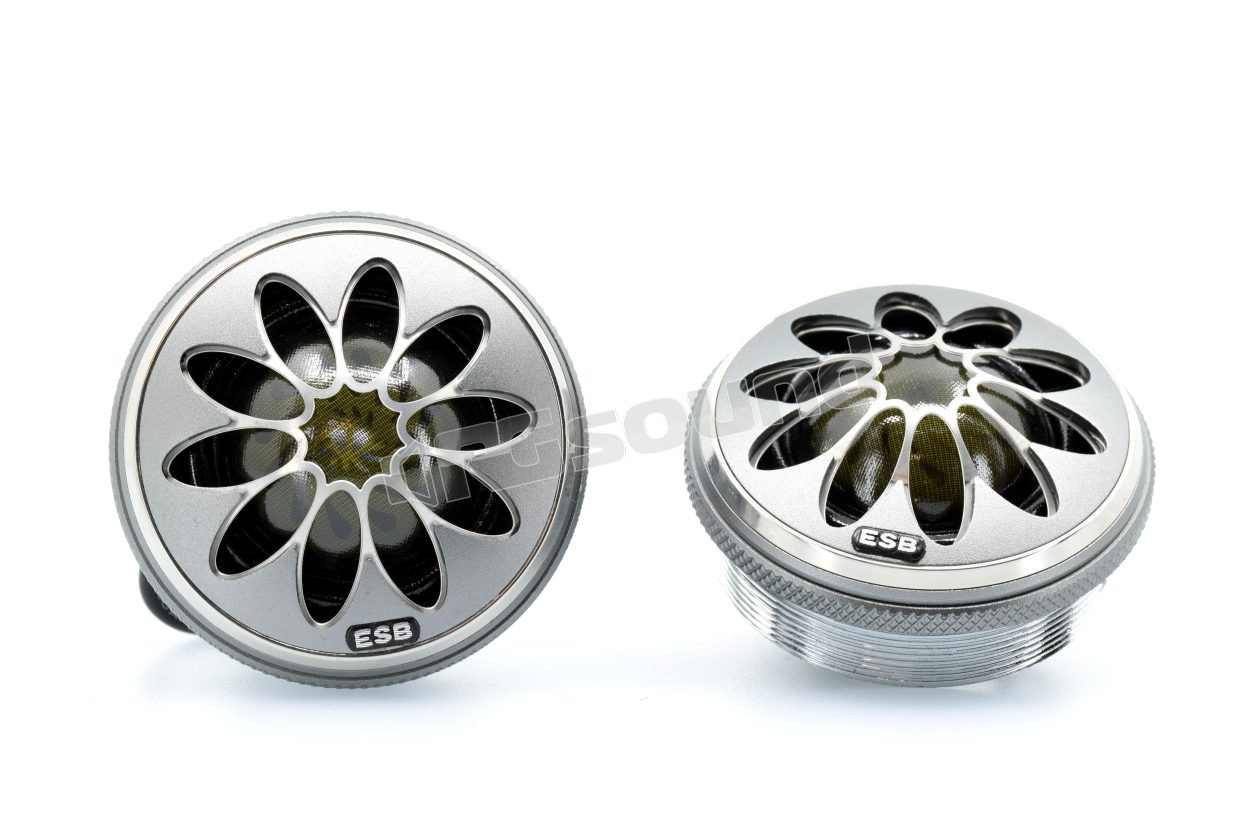

ESB Car audio 9.1T-28 High-end dome tweeter 1.1" /28 mm Series 9000

The 9.1T-28 Tweeter from ESB Car Audio's Series 9000 represents the pinnacle of audio engineering for the most demanding enthusiasts. Thanks to the TCA system (Air Flow Control), this tweeter offers a reduction in turbulence and noise, guaranteeing clear and detailed audio reproduction. The main N52H neodymium magnet ensures reliable performance even at elevated temperatures, while the upper secondary magnet stabilizes the magnetic flux for optimal efficiency. The pure copper ring reduces the inductance of the voice coil, allowing for precise high frequency response and optimal handling of transient audio signals.

The FCA system (Air Flow Control) creates periodic damping resistance, ensuring controlled and fast release of energy accumulated in the dome movement, for faithful and precise reproduction of the audio source. The ultra-lightweight aluminum voice coil offers an optimal combination of strength and reduced weight, while the dome in pure Japanese silk offers reproduction of very high frequencies, without compromising sound quality. With high quality materials and innovative technologies, the 9.1T-28 Tweeter from ESB Car Audio's Series 9000 offers crystalline and detailed sound, guaranteeing an engaging and immersive audio experience.

Features 9.1-T28

  • Felt ring to eliminate any harmful vibration.
  • Lightweight stainless steel grille to protect the dome.
  • The front baffle is not only aesthetic, but acts as an acoustic lens. Its shape drastically reduces side refractions, an undesirable event in car installations where windows create harmful refractions.
  • Super flexible cables with high silver content to reduce electrical connection losses.
  • Threaded aluminum mounting ring.
  • Stainless steel finishing ring (optional).

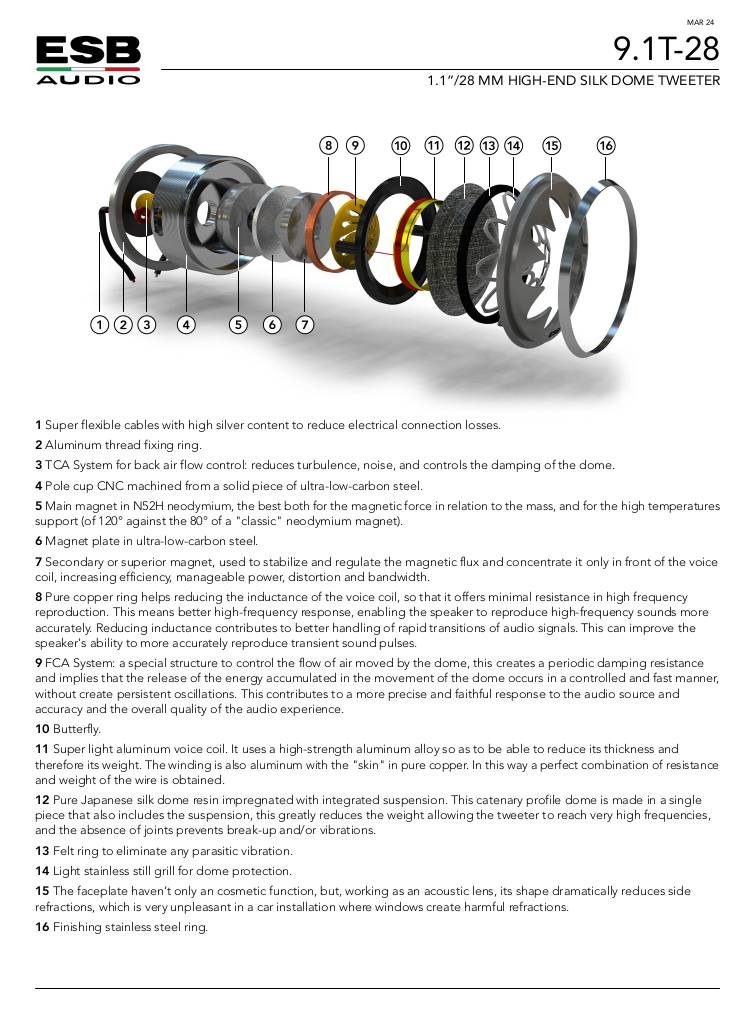

Scheda Tecnica

n-20240502165051-data-sheet-9-1t-28-03-24.pdf

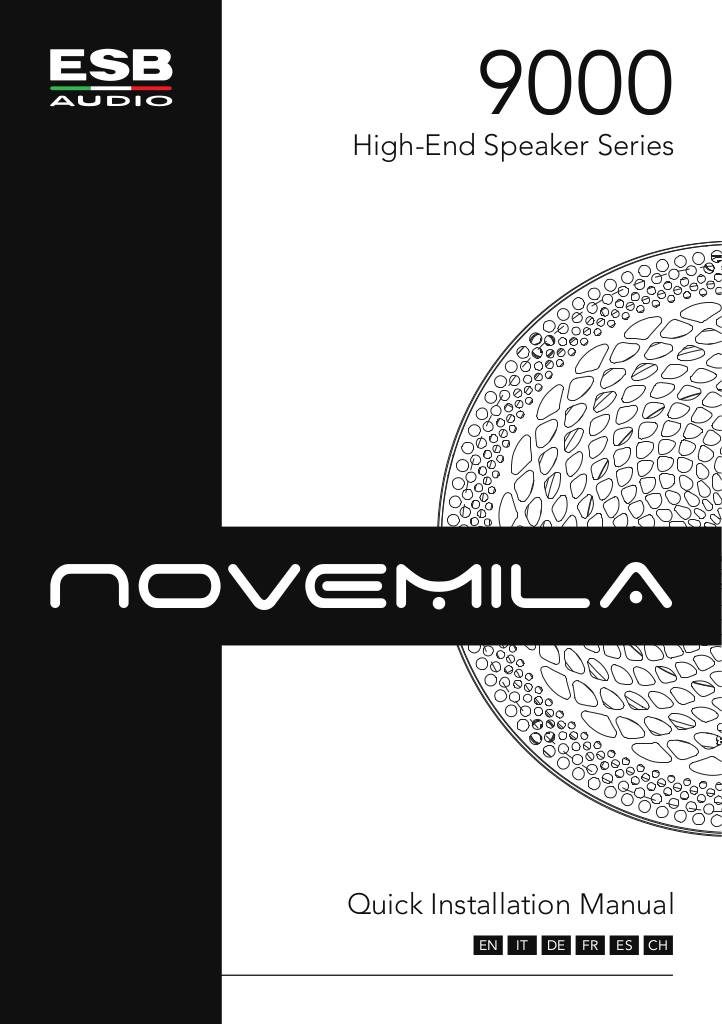

Manuale Installazione

n-20240502165051-manual-esb9000-quick-installation.pdf

ESB Car audio 9.1T-28 Technical specifications

  • Nominal impedance: 4 Ohm
  • Nominal power: 100 Watt
  • Transient power: 220 Watt
  • Frequency response: 1.4 KHz - 25 KHz
  • Sensitivity: 94.5 dB 2.83v/1m
€ 713,00 Price incl. VAT
