9.1T-25 25 mm high-end dome tweeter, 9000 Series

ESB car audio
Your price:
€ 712,00
Price per pair (VAT included)
Available on backorder
Calculating shipping costs to
Type
Tweeter
MAX Power
200 Watt
RMS Power
100 Watt
Frequency Response
1.6 KHz - 25 KHz Hertz
Sensitivity
91.5 dB
Impedance
4 Ohm

ESB 9.1T-25 High-end dome tweeter 1" /25 mm Series 9000

The 9.1T-25 Tweeters from ESB Car Audio's Series 9000 deliver superior audio performance with innovative technology designed to meet the needs of the most demanding audiophiles. With a combination of high-quality materials and advanced design, this tweeter offers an extraordinary listening experience. The resin-impregnated silk dome with integrated suspension ensures crystal-clear and detailed sound, significantly reducing the weight of the tweeter without compromising sound quality. The N52H neodymium magnet offers superior magnetic force in relation to mass and exceptional support at high temperatures.

The pole cup features twelve axial holes on the bottom to eliminate air back pressure, reducing distortion and frequency resonance of the tweeter. On the back of the tweeter is a threaded hole that increases installation possibilities in unconventional positions inside cars. The wide 25 mm lightweight aluminum voice coil with copper-coated aluminum winding ensures precise and detailed response across the entire frequency spectrum.

9.1T-25 Features

  • Magnetic plate in very low carbon steel.
  • Main body in ABS.
  • Connection wires are super flexible with high silver content to reduce electrical connection losses.
  • Gold-plated copper terminals.
  • Felt damper to control and reduce dome resonance.
  • Lightweight stainless steel grille for dome protection.

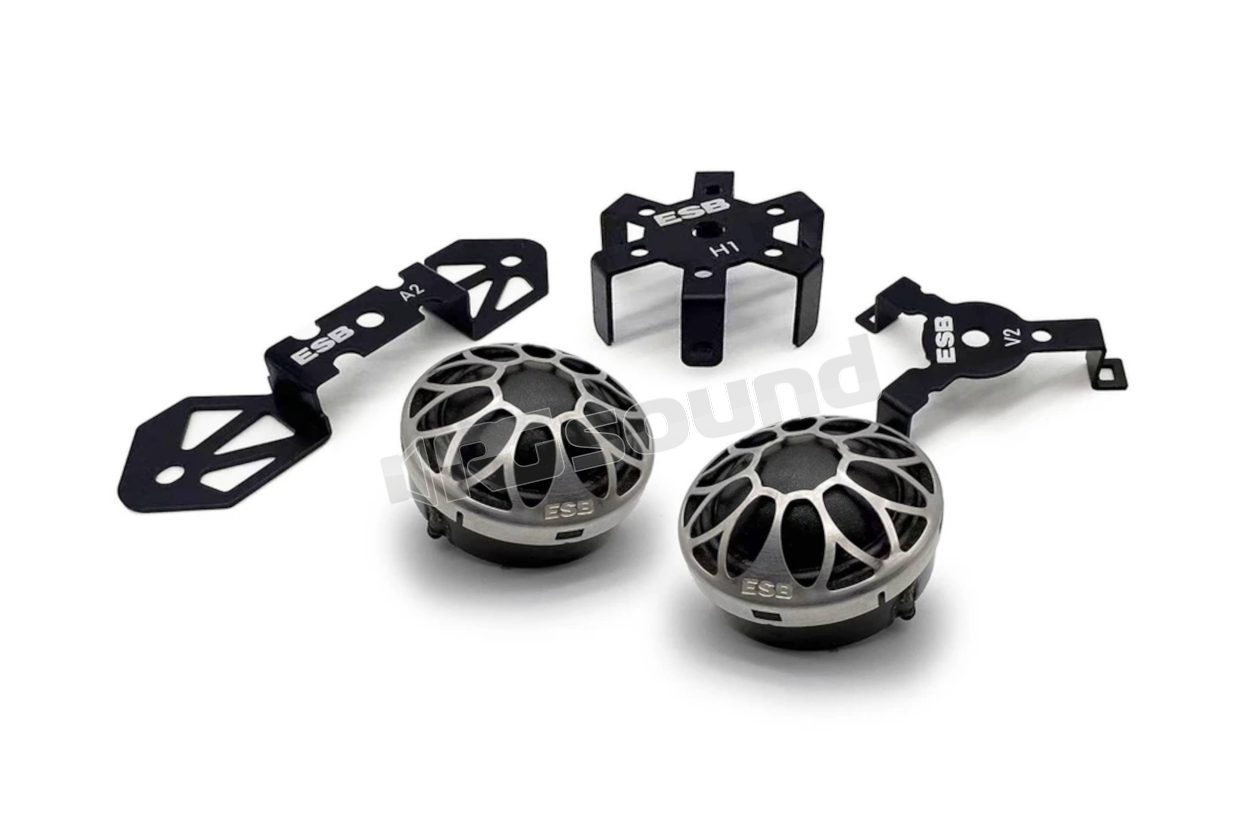

  • 8 installation accessories for different car models (included).

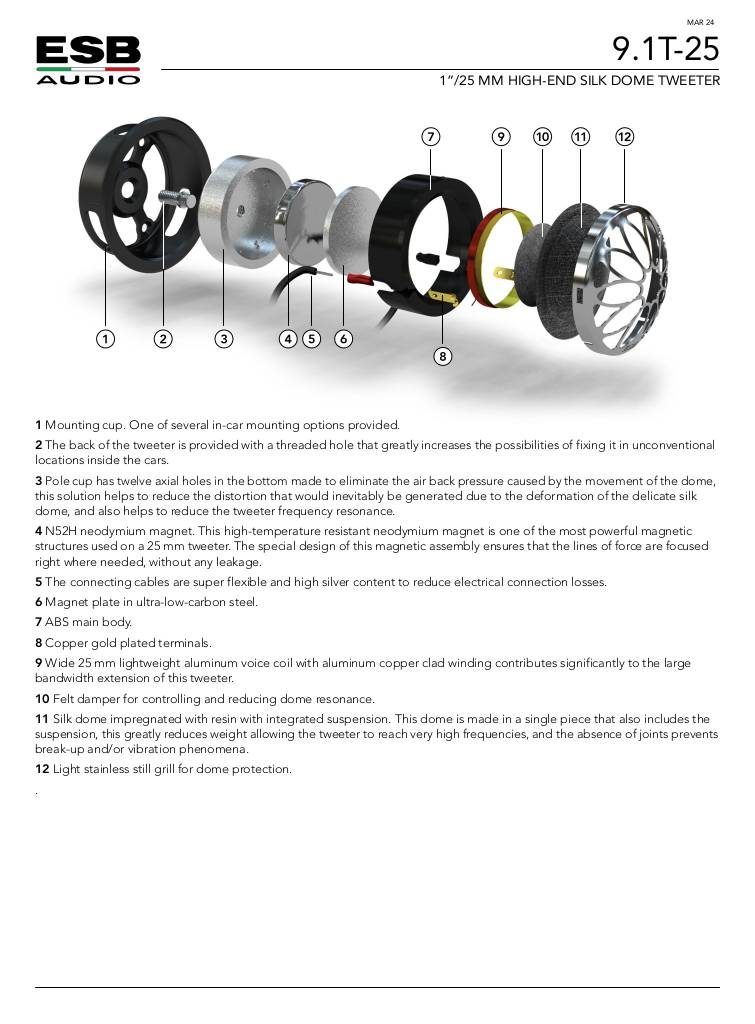

Scheda Tecnica

n-20240502163619-data-sheet-9-1t-25-03-24.pdf

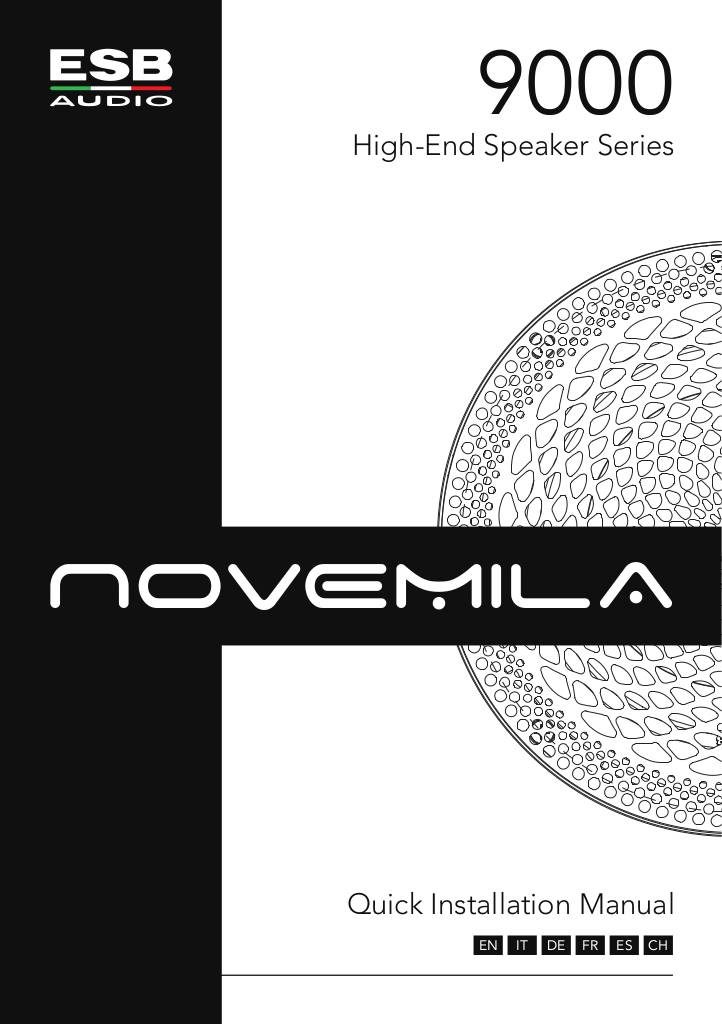

Manuale Installazione

n-20240502163619-manual-esb9000-quick-installation.pdf

ESB 9.1T-25 Technical Specifications

  • Nominal impedance: 4 Ohm
  • Nominal power: 100 Watt
  • Transient power: 200 Watt
  • Frequency response: 1.6 KHz - 25 KHz
  • Sensitivity: 91.5 dB 2.83v/1m
  • Voice coil resistance (Re): 3.8 Ohm
  • Free air resonance (Fs): 1.25 KHz
  • Sensitivity:
    • 88.5 dB at 1W/1m
    • 91.5 dB at 2.83V/1m
  • Electrical "Q" (Qes):3.053
  • Mechanical "Q" (Qms): 1.874
  • Total speaker "Q" (Qts): 1.116
