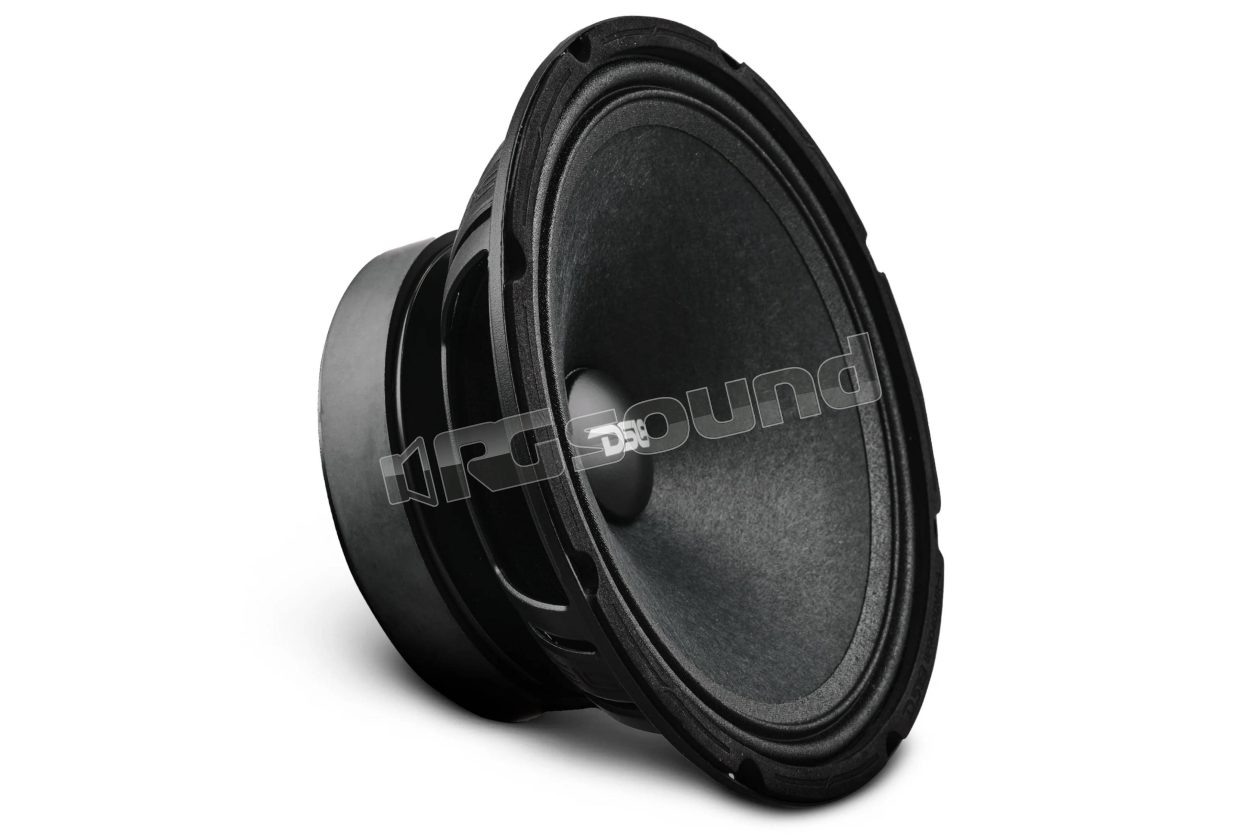

8PRO400MR-4 8” high-sensitivity professional mid-range speaker 200 Watt Rms 4-Ohm

DS18

Coming soon

Your price:
€ 61,00
Price per single item (VAT included)
Type
Midrange
Speaker Size
200 mm
MAX Power
400 Watt
RMS Power
200 Watt
Frequency Response
100 - 12500 Hertz
Sensitivity
104 dB
Impedance
4 Ohm
Installation Depth
88,5 mm
Midrange Cone Material
Cellulosa trattata

DS18 8PRO400MR-4 Professional high-sensitivity 8" mid-range speaker 200 Watt Rms 4-Ohm

With a nominal diameter of 8" and a nominal impedance of 4 OHMS, the 8PRO400MR-4 delivers exceptional performance and clarity. The RMS power handling of 200 W and the MAX power handling of 400 W guarantee powerful sound reproduction. A distinctive feature of the DS18 8PRO400MR-4 is its high sensitivity of 104 dB, which allows it to effortlessly fill any space with rich and engaging sound.

The frequency response of 100Hz-12.5KHz ensures accurate reproduction and what sets the 8PRO400MR-4 apart are the copper demodulating rings. These rings play a crucial role in reducing harmonic and intermodulation distortion associated with voice coil displacement. Additionally, they minimize magnetic flux modulation during voice coil movement, ensuring a more linear variation of the system's inductances as the input current changes. The result is cleaner sound output, for a better audio experience.


The curvilinear shape of the cone improves overall dispersion while maintaining optimal performance. The push-type speaker terminals make installation simple, allowing secure connections without compromising sound quality. The 1.5" diameter voice coil, made of Til material, ensures excellent heat dissipation for prolonged reproduction without any compromise in performance.

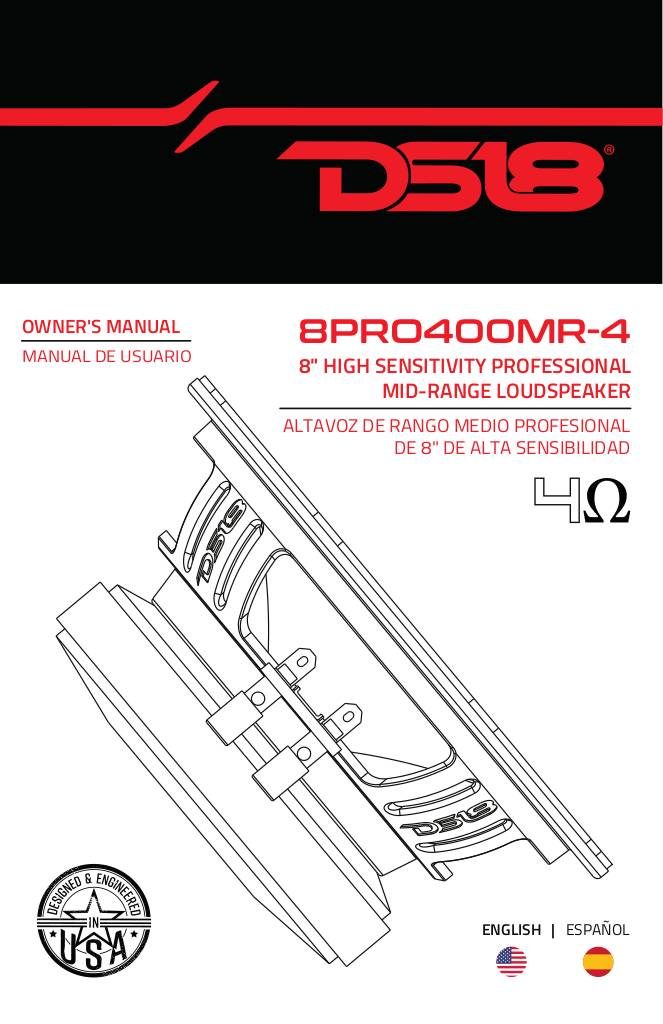

Scheda tecnica

n-20241031165303-8pro400mr-4-scheda-tecnica.pdf

DS18 8PRO400MR-4 Technical specifications

  • Nominal diameter 8" / 203 mm
  • Nominal impedance 4 Ohm
  • RMS power handling 200W
  • Maximum available power 400 W
  • Sensitivity (1w/1m) 104dB
  • Frequency response 100Hz-12.5KHz
  • Recommended high-pass crossover 160Hz
  • Grille included No
  • Interlaced sandwich voice coil (ISV) No
  • Demodulating rings Copper ring
  • Enhanced heat dissipation No
  • Cone shape Curvilinear
  • Speaker terminals Push 8ga

Motor

  • Voice coil diameter 1.5" / 38.6 mm
  • Voice coil material Til
  • Winding material CCAW
  • Cone material Paper
  • Dust cap material Paper
  • Bullet material N/A
  • Bullet color/finish N/A
  • Surround material Cloth
  • Spider diameter n4" / 102mm
  • Spider conductor connection type Cross spider
  • Basket material Steel
  • Basket color/finish black
  • Magnet material Ferrite
  • Magnet weight n40 oz
  • Displacement volume 0.56L / 0.02ft3

Dimensions

  • Overall diameter 8.19" / 208 mm
  • Overall depth 3.72" / 94.6 mm
  • Deflector cutout for front mounting 7.36" / 187 mm
  • Mounting depth 3.48" / 88.5 mm
  • Motor diameter 5.1" / 130 mm
