8CMV2 8" 8 ohm speaker

Beyma
Your price:
€ 68,00
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
Woofer and midwoofer
Speaker Size
200 mm
MAX Power
500 Watt
RMS Power
250 Watt
Frequency Response
80 - 8000 Hertz
Sensitivity
94 dB
Impedance
8 Ohm

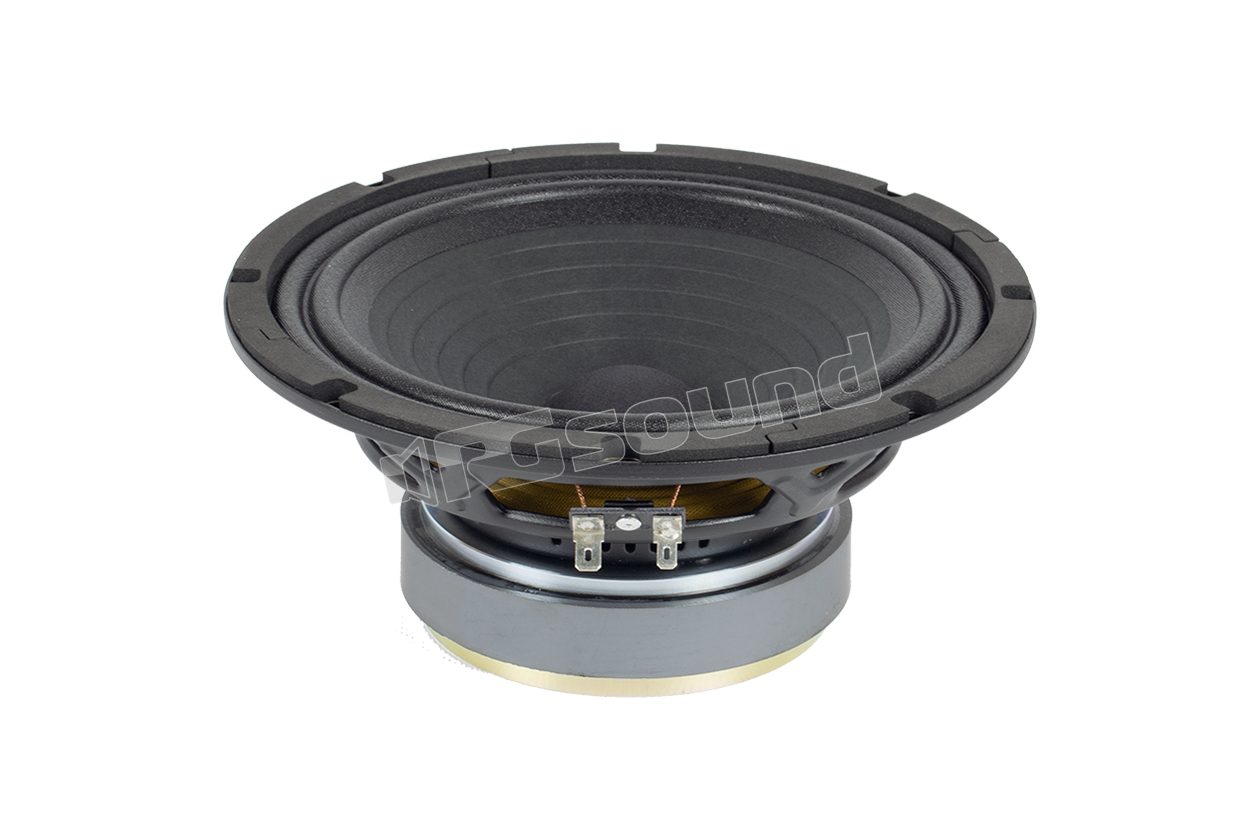

Beyma 8CMV2 8" 8 ohm Speaker

The new Beyma 8CMV2 8" speaker handles 250 watts AES and 500 watts program power with very linear extended frequency response and low distortion. Wide frequency response from 80Hz to 8.0kHz and a high Xmax of 5.7mm for a controlled and compact cone, designed for speaker systems that require strong midrange and tight bass.

8CMV2 Features

  • High power handling: 500 W program power
  • 1.5" voice coil in CCAW wire
  • High sensitivity: 94 dB (1W / 1m)
  • Extended very linear response and low distortion
  • Treated dual-roll fabric suspension
  • Optimized stamped steel frame
  • Ferrite magnet
  • Designed for bass and mid-bass applications in compact and vented cabinets.

Scheda Tecnica

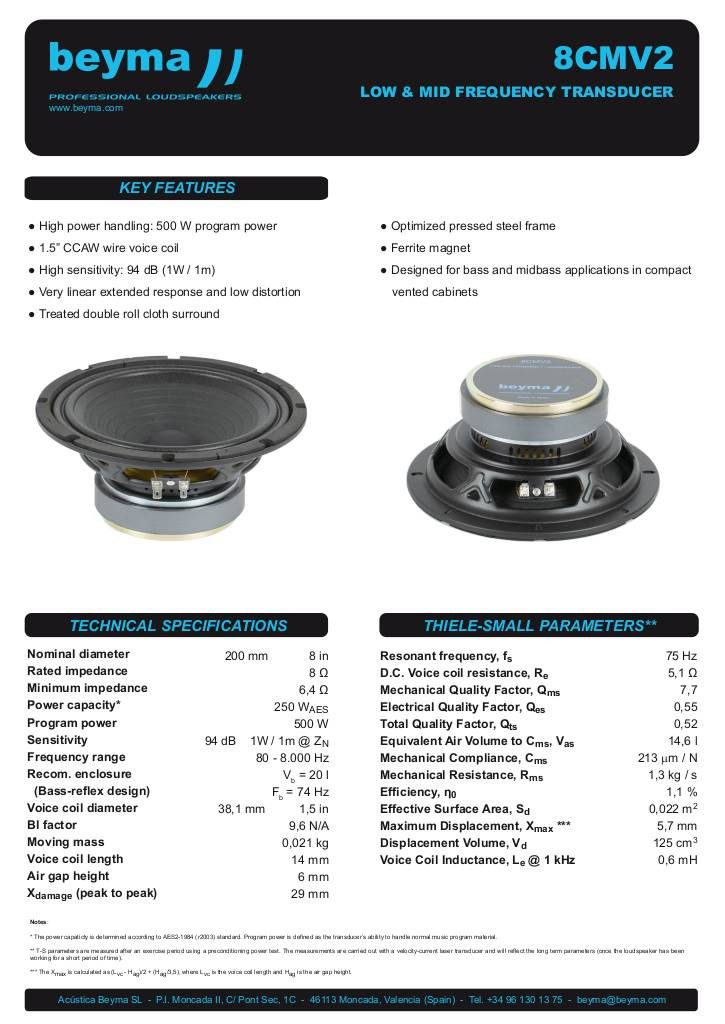

n-20230726153746-beyma-speakers-data-sheet-low-mid-frequency-8cmv2.pdf

Beyma 8CMV2 Technical Specifications

  • Nominal diameter 200 mm 8 in
  • Nominal impedance 8 Ω
  • Minimum impedance 6.4 Ω
  • Power capacity 250 W
  • Program power 500 W
  • Sensitivity 94 dB 1W / 1m @ ZN
  • Frequency range 80 - 8,000 Hz
  • Voice coil diameter 38.1 mm 1.5 in
  • Bl factor 9.6 N/A
  • Moving mass 0.021 kg
  • Voice coil length 14 mm
  • Air gap height 6 mm
  • Damage X (peak to peak) 29 mmù
  • Resonance frequency 75 Hz
  • Voice coil resistance D.C. 5.1 Ω
  • Mechanical quality factor 7.7
  • Electrical quality factor 0.55
  • Total quality factor 0.52
  • Equivalent air volume to Cms 14.6 l
  • Mechanical compliance 213 µm / N
  • Mechanical resistance 1.3 kg / s
  • Efficiency 1.1 %
  • Effective surface 0.022 m2
  • Maximum displacement 5.7 mm
  • Displacement volume 125 cm3
  • Voice coil inductance 0.6 mH
€ 68,00 Price incl. VAT
