8.6K2 High-end 2-way speaker kit, 8000 Series

ESB car audio
Your price:
€ 1662,00
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
2-way separate kit
Woofer Size
165 mm
Tweeter Size
28 millimetri
Impedance
4 Ohm
Woofer Material
Cellulosa non pressata
Tweeter Material
Cupola in Torcon

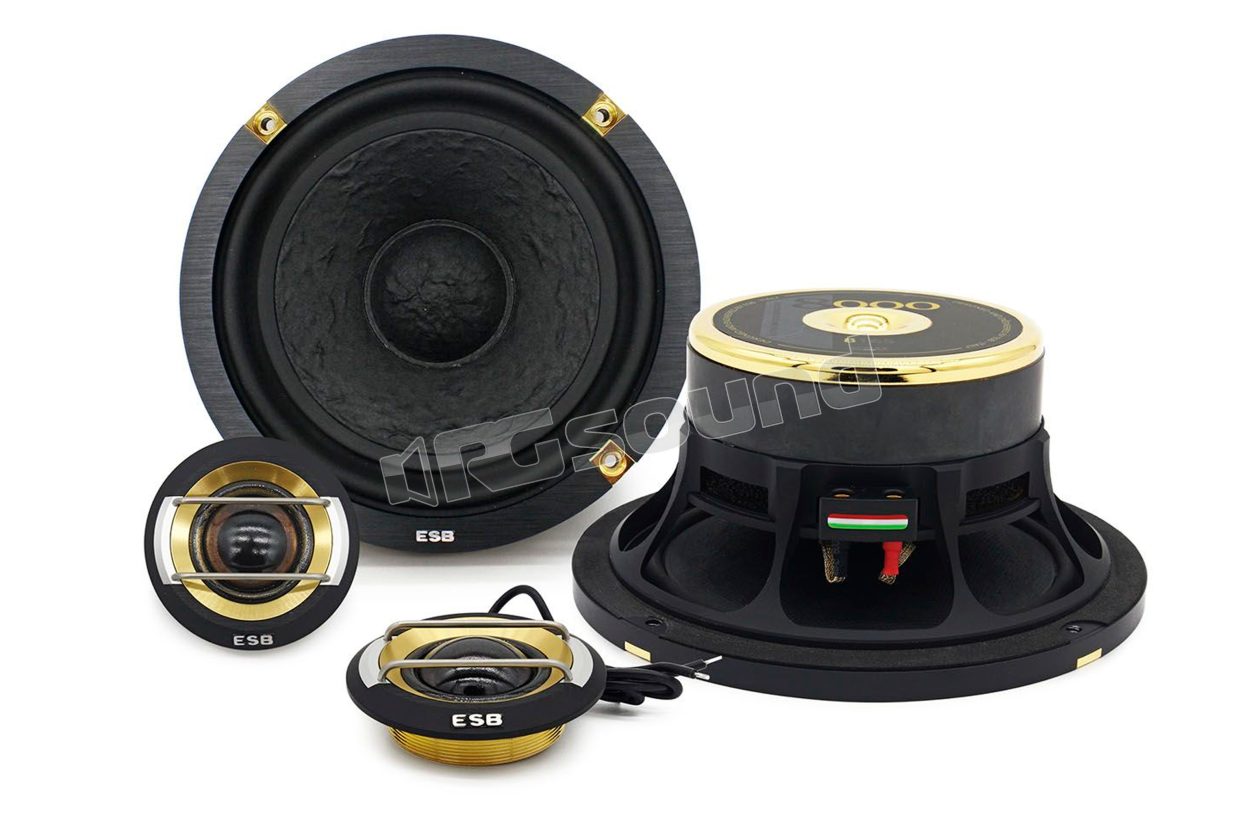

ESB car audio 8.6K2 2-way speaker system Series 8000

The 8000 series can be considered the direct successor of the 7000 series. The goal was to renew a range of speakers that were already exceptional in their own right, with the help of the latest technologies and the use of the best materials available today; always with an eye to installation versatility.

The key to developing this type of in-car system was therefore to fully exploit their exceptional musicality. In the 8000 series every detail has been carefully crafted, from the choice of materials to the shapes, from the construction and finishing of the baskets to the cooling systems of magnets and coils. We improved what we thought was difficult to improve and we firmly believe we have laid the foundation for another decade of success.

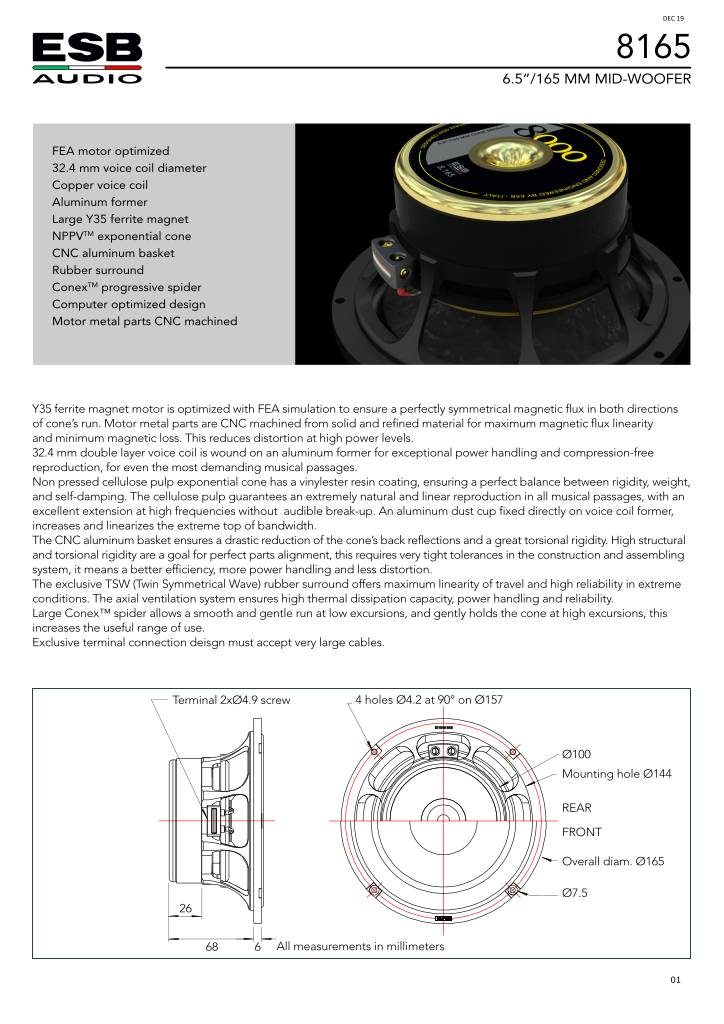

Scheda tecnica woofer

n-20200929141237-woofer8165.pdf

ESB car audio 8.6K2 Technical Specifications

Tweeter 8028S

  • Dome tweeter 1.1"/28 mm
  • 28 mm aluminum voice coil
  • Nominal diameter 32.8 mm
  • High quality neodymium magnet
  • Torcon® dome
  • CNC front part
  • Ferrofluid cooling and damping
  • Acoustic resistance control Qts
  • Computer optimized design
  • CNC machined motor metal parts
  • Dome damping material dB Cloth®
  • Nominal Impedance: 4 Ohm
  • Nominal Power: 110 Watt
  • Transient Power: 220 Watt
  • Frequency Response: 940 Hz ~ 25 KHz
  • Sensitivity: 91 dB 1W/1m

Mid-Woofer 8.165

  • Midwoofer 6.5"/165 mm
  • Unpressed paper cone
  • 32.4 mm voice coil
  • Copper coil
  • High quality Y35 ferrite magnet
  • NPPVTM exponential cone
  • CNC aluminum basket
  • TWS rubber suspension
  • Conex™ progressive spider
  • Computer optimized design
  • CNC machined motor metal parts
  • Nominal Impedance: 4 Ohm
  • Nominal Power: 160 Watt
  • Transient Power: 320 Watt
  • Frequency Response: 45 Hz ~ 4 KHz
  • Sensitivity: 89 dB 1W/1m
