8.6K2 CX High-End 2-way passive crossovers

ESB car audio
Your price:
€ 474,00
Price per pair (VAT included)
Available on backorder
Calculating shipping costs to

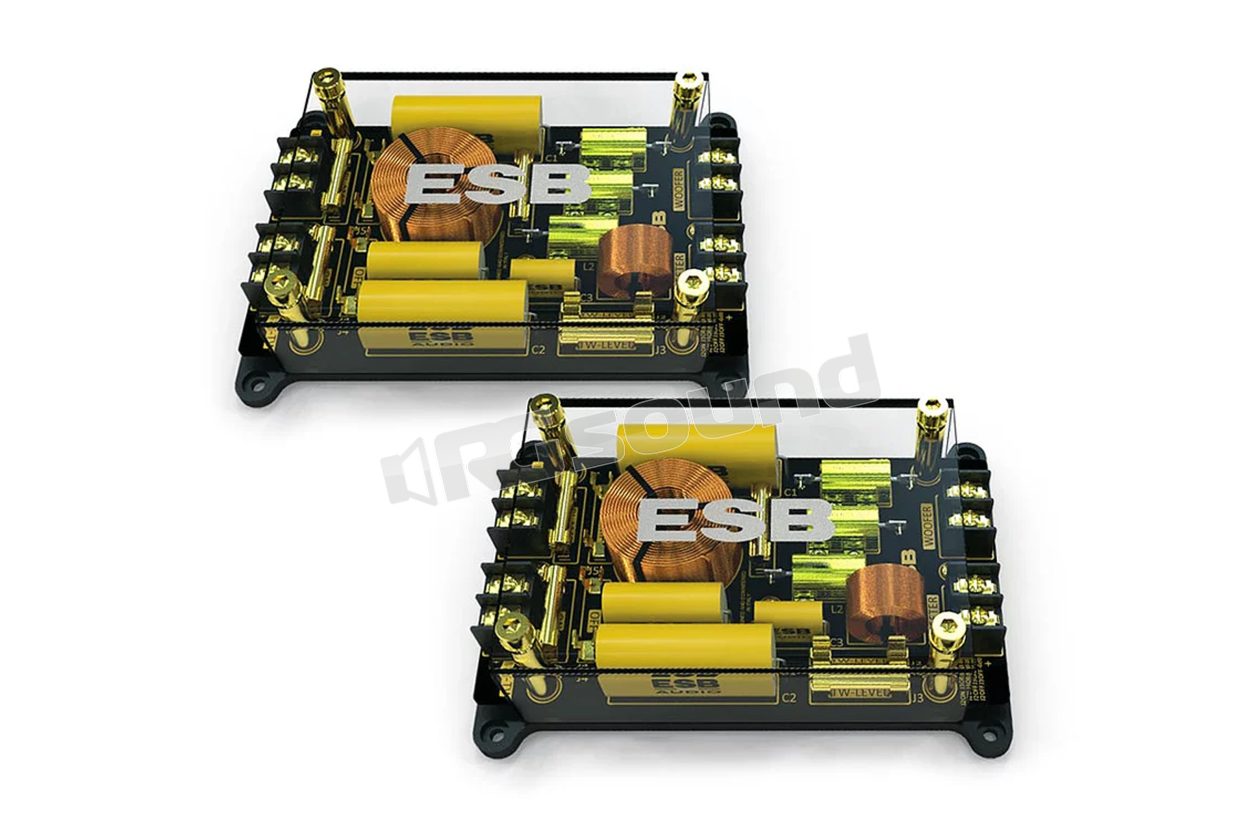

ESB car audio 8.6K2 CX Pair of 2-way passive crossovers

This crossover has been specifically designed for the components of the 8000 Series. In particular, the woofer 8.165/LE and the tweeter 8028/S. Multi-amplification connection options. Aluminum structure machined from solid with CNC machines. Transparent acrylic cover to improve ventilation and component protection. Spacers and screws plated in gold. Adjustment jumpers plated in gold and of large diameter for zero resistance and very high load capacity. All coils are air-wound to minimize distortion.

Coil wire of large diameter (1.5 mm) made with 99.9% pure copper. Non-inductive resistances with aluminum dissipating body help manage very high power to remain relatively cool and maintain constant resistance. High-quality bimetallic capacitors for maximum transparency of details in mid and high frequencies. To increase response speed, the tweeter uses a configuration of smaller capacitors in parallel. Compact dimensions with a sturdy 4-screw mounting. 4 tweeter attenuation levels: 0; -2; -4; -6 dB. 2 adjustment levels for the woofer/tweeter transition zone.

ESB car audio 8.6K2 CX Technical specifications

  • Multi-amp or single connection
  • CNC aluminum structure
  • Spacers and screws plated in gold
  • Coils in 99.9% pure copper air-wound
  • Non-inductive resistances
  • High-quality bi-metallic capacitors
  • 4 tweeter attenuation levels: 0; -2; -4; -6 dB
  • 2 adjustment levels for the woofer/tweeter transition zone
€ 474,00 Price incl. VAT
