8.075 75 mm Cone Midrange 8000 Series

ESB car audio
Your price:
€ 949,00
Price per pair (VAT included)
Available on backorder
Calculating shipping costs to
Type
Midrange
Speaker Size
70 mm
MAX Power
240 Watt
RMS Power
120 Watt
Frequency Response
95 - 16.000 Hertz
Sensitivity
91 dB
Impedance
4 Ohm
Installation Depth
38 mm

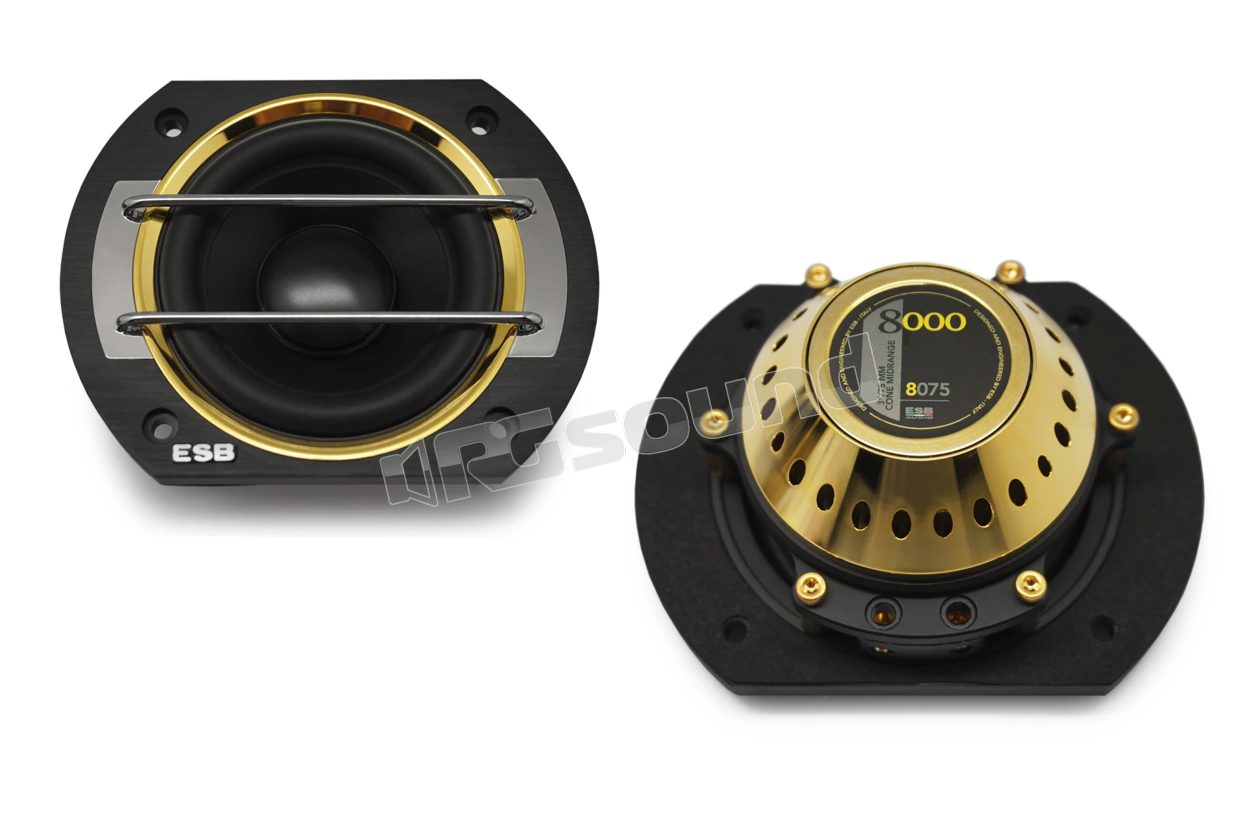

ESB car audio 8.075 Pair of 3" / 75 mm cone midrange drivers Series 8000

The motor with neodymium magnet is optimized with FEA simulation to ensure perfectly symmetrical magnetic flux in both directions of cone travel. The motor metal parts are CNC machined from solid refined materials to obtain maximum linearity of magnetic flux and minimum magnetic loss. This reduces distortion at high power levels. The 25.5 mm double-layer CCAW (Copper Clad Aluminum Wire) voice coil is wound on an aluminum former for exceptional power handling and distortion-free reproduction, even in the most demanding musical passages.

The exponential cone in uncompressed cellulose pulp with vinyl ester resin coating ensures a perfect balance between stiffness, weight and self-damping. Cellulose pulp guarantees extremely natural and linear reproduction across all musical passages, with excellent extension to high frequencies without audible break-up. An aluminum dust cap mounted directly on the voice coil increases and linearizes the upper extreme of bandwidth. The CNC aluminum basket ensures a drastic reduction of rear cone reflections and greater torsional rigidity. High structural and torsional rigidity for perfect alignment of parts requires very tight tolerances in construction and assembly system. This results in better efficiency, greater power handling and lower distortion.

The exclusive rubber surround offers maximum stroke linearity and high reliability under extreme conditions. The axial ventilation system ensures high heat dissipation capacity, power handling and reliability. The large Conex™ spider allows smooth and gentle travel at low excursions and gently restrains the cone at high excursions, thus increasing its useful range. The exclusive design of the connection terminals accepts very high gauge cables.

8.075 Features

  • 25.5 mm voice coil
  • Copper and aluminum voice coil
  • Large diameter neodymium magnet
  • NPPVTM exponential cone
  • CNC aluminum basket
  • Rubber suspension
  • Progressive Conex™ center
  • Computer optimized design
  • CNC machined motor metal parts

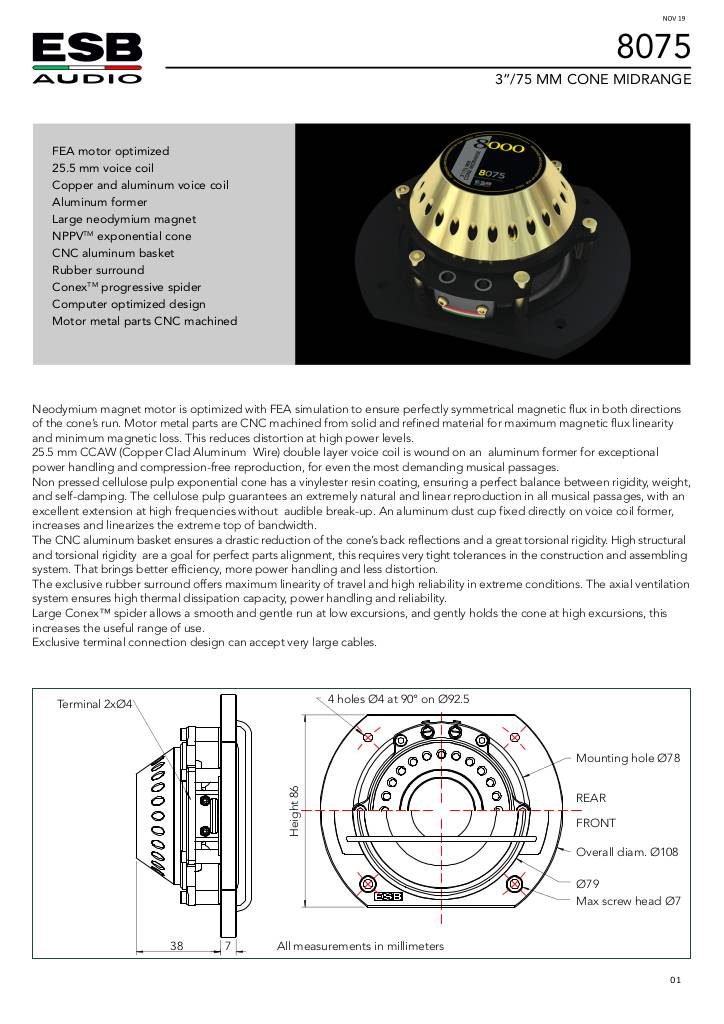

Scheda tecnica

n-20210125165959-midrange8075.pdf

ESB car audio 8075 Technical Specifications

  • Nominal Impedance: 4 Ohm
  • Nominal Power: 120 Watt
  • Transient Power: 240 Watt
  • Frequency Response: 95 Hz ~ 16 KHz
  • Sensitivity: 91 dB 1W/1m
€ 949,00 Price incl. VAT
