8.028S 8000 series tweeter with square mount

ESB car audio
Your price:
€ 474,00
Price per pair (VAT included)
Available on backorder
Calculating shipping costs to
Type
Tweeter
Dome Size
28 mm
MAX Power
220 Watt
RMS Power
110 Watt
Frequency Response
940 - 25.000 Hertz
Sensitivity
91 dB
Impedance
4 Ohm
Outer Diameter
73 mm
Installation Depth
13 mm
Tweeter Material
Cupola in Torcon

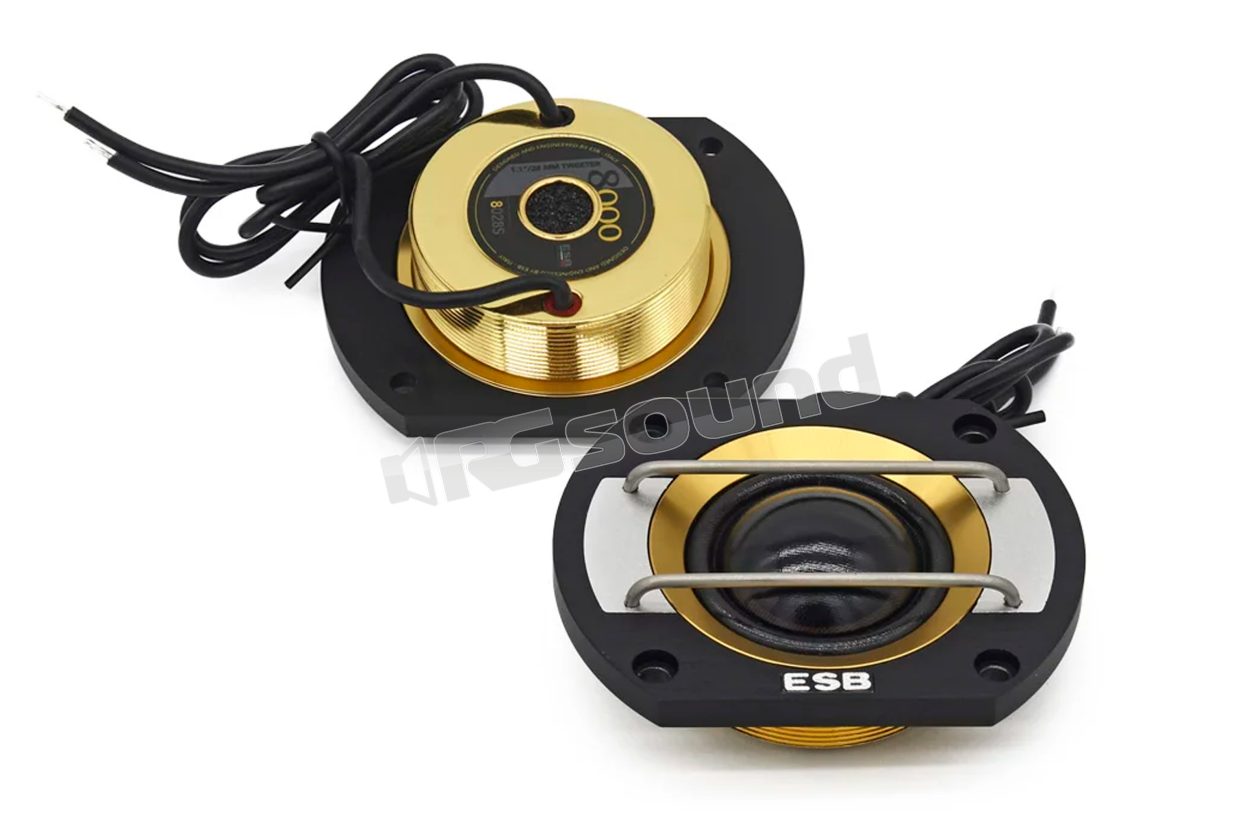

ESB car audio 8.028S Pair of 1.1"/28 mm tweeters with square bracket

All the parts that make up this tweeter have been produced with the CNC process. It is a very expensive and time-consuming production process, but it guarantees perfect geometry and impeccable aesthetics. A mix of premium materials such as brass, stainless steel and Avional aluminum are used together to obtain a unique product. The tweeter uses a very large ventilated neodymium magnet, optimized with computer simulations (FEA) to achieve great efficiency and better linearity throughout the entire excursion of the voice coil. The neodymium magnet is of high quality to neutralize magnetic loss at high temperatures and concentrate more force in less volume.

The soft Torcon® dome, an exclusive polyphenylene sulfide (PPS) with high-performance fiber, offers superb heat resistance, reduced weight, excellent self-damping, to achieve a free resonance frequency response above the audible range. The catenary profile of our diaphragm ensures maximum rigidity on the tip of the dome. The result is clean, homogeneous and transparent sound reproduction, with high efficiency from 940Hz to 25KHz and high power handling capacity.

The central ventilation hole ensures optimal cooling of the voice coil to handle high power without dynamic compression and, at the same time, reduces air compression on the back of the dome with a great reduction in distortion and extended response to lower frequencies. A special acoustic resistance helps control the tweeter's Qts. The residual resonance is neutralized by the dB Cloth® damping material under the dome, which extends the frequency response to the lower limits and reduces harmonic distortion. To mount the tweeter, the installer can use the classic solution that ESB has recommended for decades: an aluminum threaded ring.

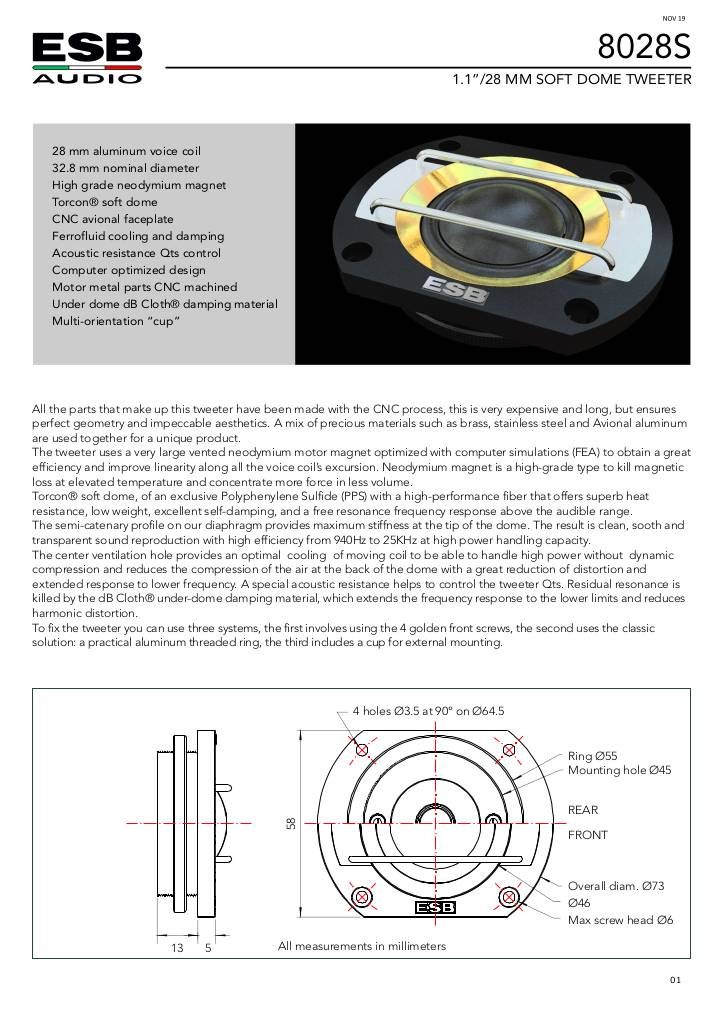

Scheda tecnica

n-20220706171406-8028s.pdf

ESB car audio 8.028S Technical specifications

  • 28 mm aluminum voice coil
  • Nominal diameter 32.8 mm
  • High quality neodymium magnet
  • Torcon® soft dome
  • CNC Avional faceplate
  • Ferrofluid cooling and damping
  • Acoustic resistance Qts control
  • Computer optimized design
  • CNC machined motor metal parts
  • dB Cloth damping material under the dome
  • Adjustable
