8.028 28 mm Dome Tweeter 8000 Series

ESB car audio
Your price:
€ 474,00
Price per pair (VAT included)
Available on backorder
Calculating shipping costs to
Type
Tweeter
Dome Size
28 mm
MAX Power
220 Watt
RMS Power
110 Watt
Frequency Response
940 - 25.000 Hertz
Sensitivity
91 dB
Impedance
4 Ohm
Outer Diameter
32 mm
Installation Depth
13 mm
Tweeter Material
Cupola in Torcon

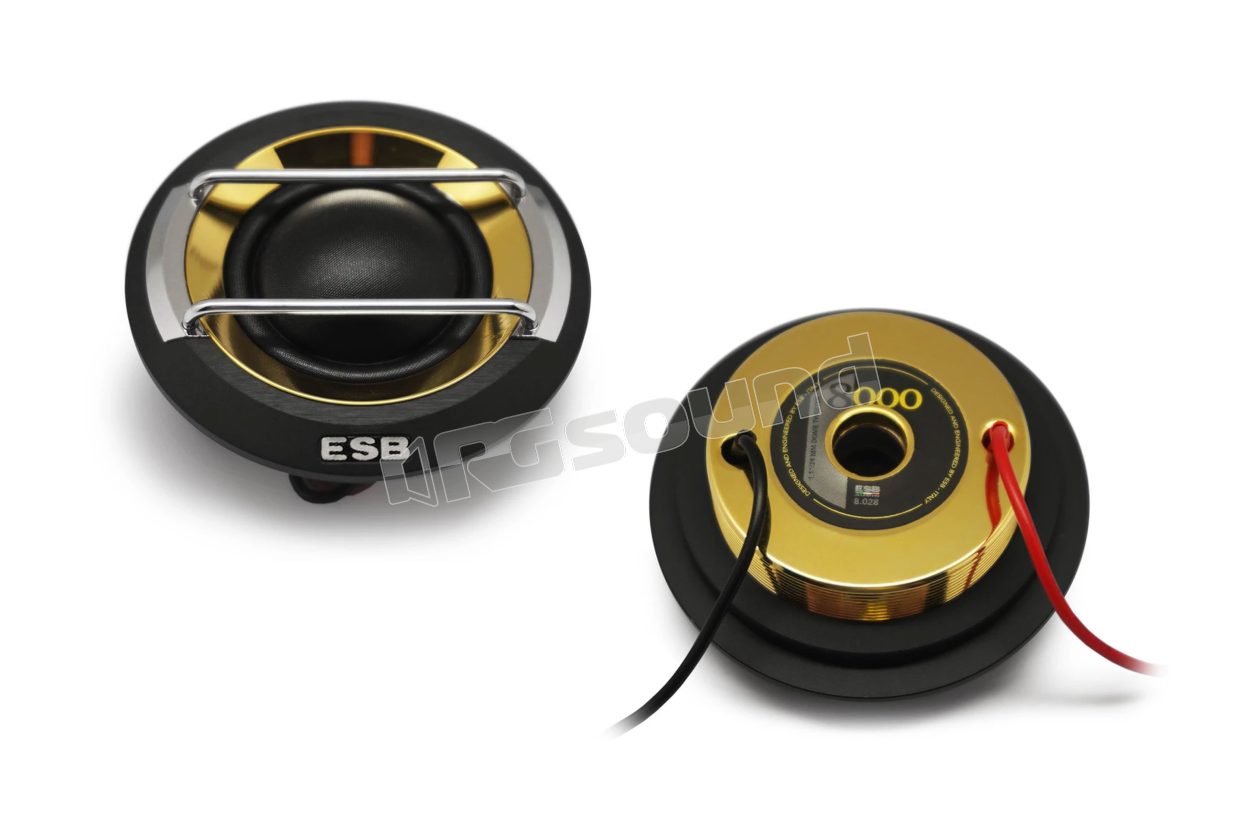

ESB car audio 8.028 Pair of 1.1" / 28 mm dome tweeter 8000 Series

All the parts that make up this tweeter have been made with the CNC process. It is a very expensive and time-consuming production process, but it guarantees perfect geometry and impeccable aesthetics. A mix of high-quality materials such as brass, stainless steel and Avional aluminum are used together to obtain a unique product. The tweeter uses a very large ventilated neodymium magnet, optimized with computer simulations (FEA) to achieve great efficiency and better linearity throughout the entire voice coil excursion. The neodymium magnet is of high quality to neutralize magnetic loss at high temperatures and concentrate more force in less volume.

The soft Torcon® dome, an exclusive polyphenylene sulfide (PPS) with high-performance fiber, offers superb heat resistance, reduced weight, excellent self-damping, to achieve a free resonance frequency response above the audible range. The catenary profile of our diaphragm guarantees maximum rigidity on the dome tip. The result is clean, homogeneous and transparent sound reproduction, with high efficiency from 940Hz to 25KHz and high power handling capability.

The central ventilation hole ensures optimal cooling of the voice coil to handle high power without dynamic compression and, at the same time, reduces air compression on the back of the dome with a large reduction in distortion and extended response at lower frequencies. A special acoustic resistance helps control the tweeter's Qts. Residual resonance is neutralized by the dB Cloth® damping material under the dome, which extends the frequency response to the lower limits and reduces harmonic distortion. To mount the tweeter, the installer can use the classic solution that ESB has recommended for decades: an aluminum threaded ring.

8.028 Features

  • 28 mm aluminum voice coil
  • Nominal diameter 32.8 mm
  • High-quality neodymium magnet
  • Torcon® dome
  • CNC front part
  • Ferrofluid cooling and damping
  • Qts acoustic resistance control
  • Computer-optimized design
  • CNC-machined motor metal parts
  • dB Cloth® dome damping material

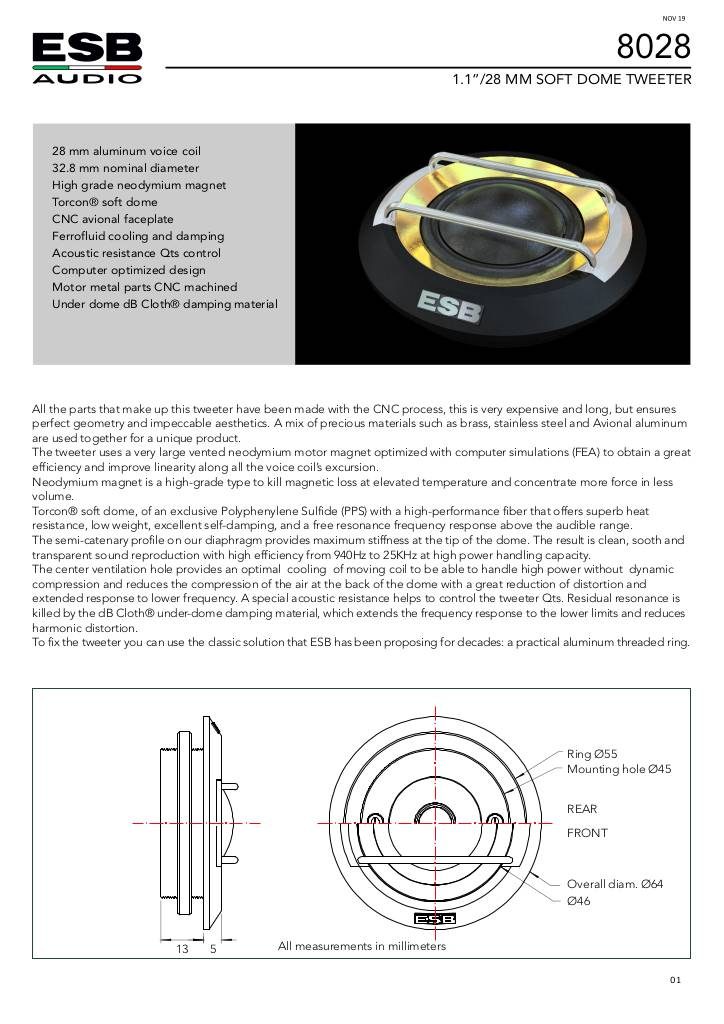

Scheda tecnica

n-20210125150653-tweeter8028.pdf

ESB car audio 8.028 Technical Specifications

  • Nominal Impedance: 4 Ohm
  • Nominal Power: 110 Watt
  • Transient Power: 220 Watt
  • Frequency Response: 940 Hz ~ 25 KHz
  • Sensitivity: 91 dB 1W/1m
