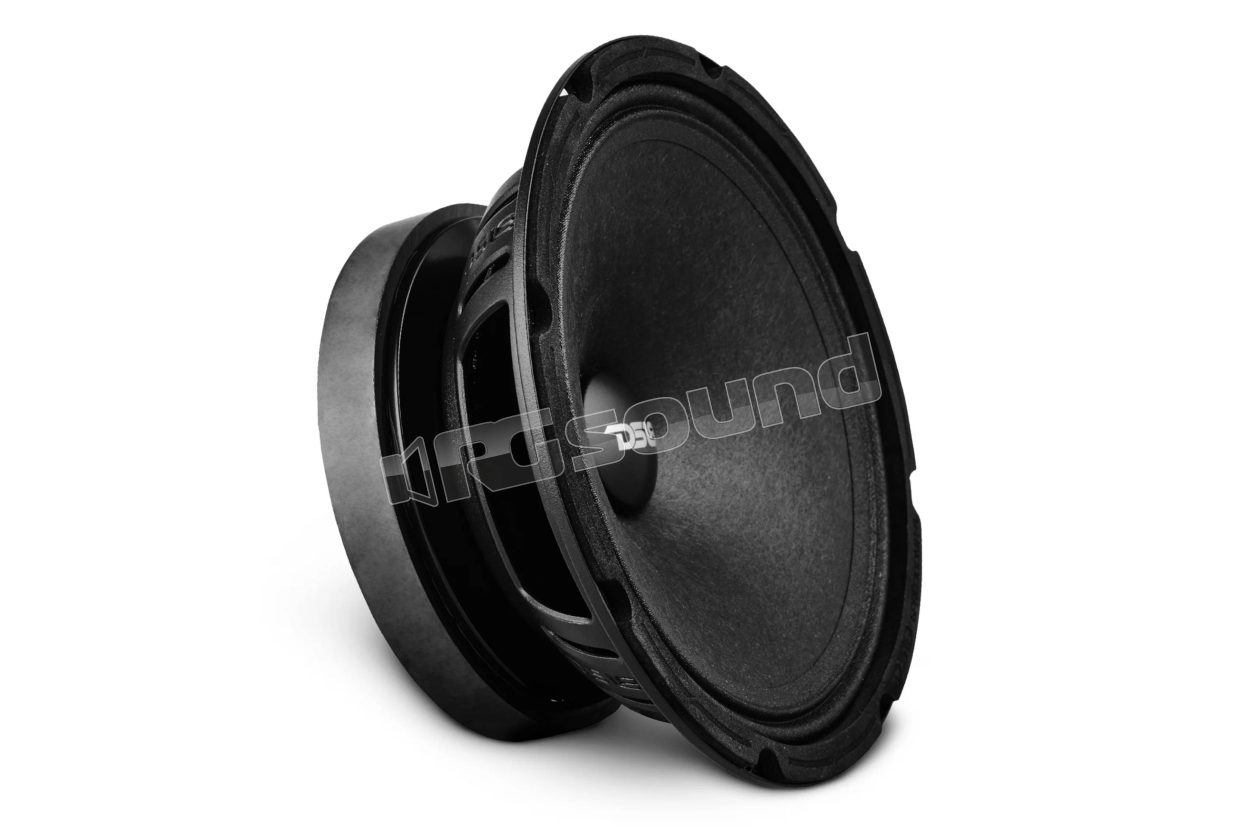

6PRO300MR-4 PRO 6.5” high-sensitivity professional mid-range speaker 150 Watt Rms 4-Ohm

DS18

Coming soon

Your price:
€ 51,00
Price per single item (VAT included)
Type
Midrange
Speaker Size
165 mm
MAX Power
300 Watt
RMS Power
150 Watt
Frequency Response
100-12.5KHz Hertz
Sensitivity
102 dB
Impedance
4 Ohm

DS18 6PRO300MR-4 Professional mid-range speaker PRO 6.5" high sensitivity 150 Watt Rms 4-Ohm

With a nominal diameter of 6.5" and a nominal impedance of 4 OHMS, the 6PRO300MR-4 offers exceptional performance and clarity. The 150 W RMS power handling and 300 W MAX power handling ensure powerful sound reproduction. A distinctive feature of the DS18 6PRO300MR-4 is the high sensitivity of 102 dB, which allows it to effortlessly fill any space with rich and engaging sound.

The frequency response of 100Hz-12.5KHz ensures accurate reproduction of every beat. What sets the 6PRO300MR-4 apart are the copper demodulating rings. These rings play a crucial role in reducing harmonic and intermodulation distortion associated with voice coil displacement. Additionally, they minimize magnetic flux modulation during voice coil movement, ensuring more linear variation of the system inductances as the input current changes.


The curvilinear shape of the cone improves overall dispersion, maintaining optimal performance. The push-type speaker terminals make installation simple, allowing secure connections without compromising sound quality. The DS18 6PRO300MR-4 model features one of the most impressive motor configurations in the catalog. The 1.25" diameter voice coil, made of Kapton material, ensures excellent heat dissipation for extended playback without any compromise in performance.

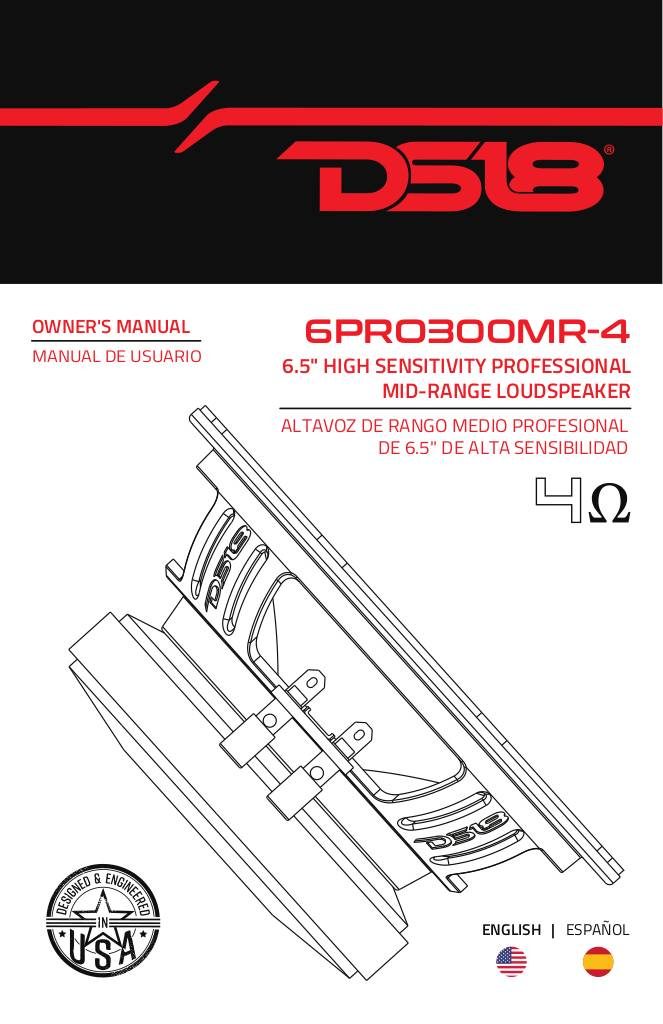

Scheda tecnica

n-20241031170634-6pro300mr-4-scheda-tecnica.pdf

DS18 6PRO300MR-4 Technical Specifications

  • Nominal diameter 6.5" / 165 mm
  • Nominal impedance 4 Ohm
  • RMS power handling 150W
  • Maximum available power 300 W
  • Sensitivity (1w/1m) 102dB
  • Frequency response 100Hz-12.5KHz
  • Recommended high-pass crossover 160Hz
  • Grille included No
  • Interleaved sandwich voice coil (ISV) No
  • Demodulating rings Copper ring
  • Enhanced heat dissipation No
  • Cone shape Curvilinear
  • Speaker terminals Push 8ga

Motor

  • Voice coil diameter 1.25" / 31.7 mm
  • Voice coil material Kapton
  • Winding material CCAW
  • Cone material Paper
  • Dust cap material Paper
  • Bullet material N/A
  • Bullet color/finish N/A
  • Edge material Cloth
  • Spider diameter 4" / 102 mm
  • Spider connection type Cross spider
  • Basket material Steel
  • Basket color/finish Black
  • Magnet material Ferrite
  • Magnet weight 25 Oz
  • Displacement volume 0.28L / 0.01ft3

Measurements

  • Overall diameter 6.7" / 170 mm
  • Overall depth 3" / 78 mm
  • Deflector cutout for front mounting 5.87" / 149 mm
  • Mounting depth 2.83 / 72 mm
  • Motor diameter 4.72" / 120 mm
