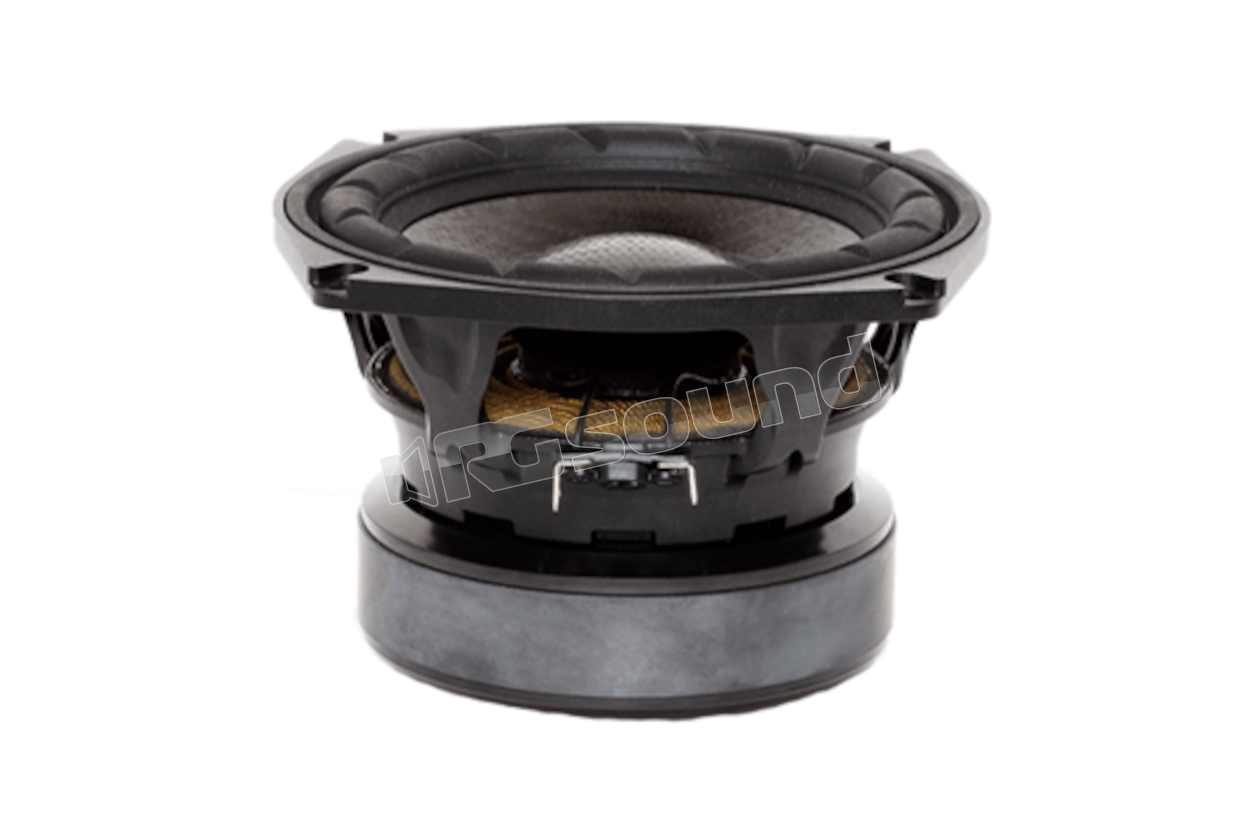

6NMFW 6" 200W 8 Ohm Speaker

Beyma
Your price:
€ 266,00
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
Woofer and midwoofer
Speaker Size
165 mm
MAX Power
400 Watt
RMS Power
200 Watt
Frequency Response
35 - 3000 Hertz
Sensitivity
87 dB
Impedance
8 Ohm

Beyma 6NMFW 6" Speaker 200W 8 Ohm

6NMFW Features

  • 6.5" high power low distortion woofer
  • Cooling system with exclusive Malt Cross® technology
  • Low power compression losses
  • High force factor design for high performance applications
  • Ceramic magnetic circuit and FEA optimized suspensions
  • Ultra reduced air noise
  • Carbon fiber cone and dust cap
  • Improved linear behavior
  • Double BIMAX spider and NBR surround
  • 2" QUATTRO aluminum moving coil in/out
  • Optimized triple aluminum and copper demodulating circuit
  • Extended controlled displacement: Xmax ± 9 mm
  • 43 mm peak to peak excursion before damage

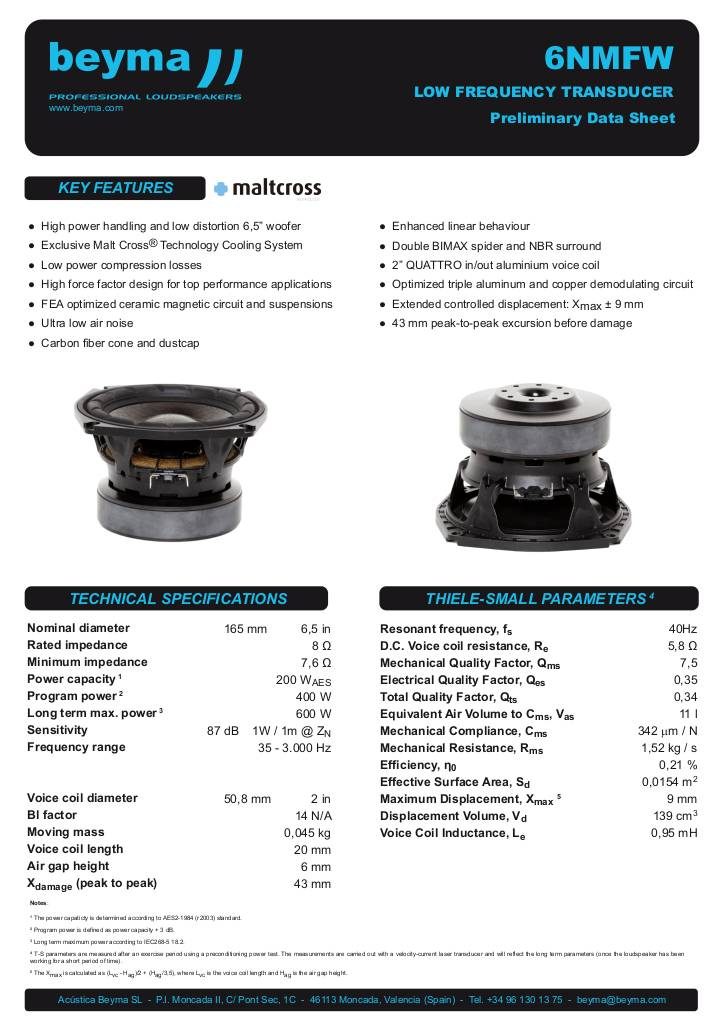

Scheda Tecnica

n-20230726142052-beyma-speakers-data-sheet-near-mid-field-woofer-6nmfw.pdf

Beyma 6NMFW Technical Specifications

  • Nominal diameter 165 mm 6.5 in
  • Nominal impedance 8 Ω
  • Minimum impedance 7.6 Ω
  • Power 200 W
  • Program power 400 W
  • Maximum long term power 600 W
  • Sensitivity 87 dB 1W / 1m @ ZN
  • Frequency range 35 - 3,000 Hz
  • Moving coil diameter 50.8 mm 2 in
  • Bl factor 14 N/A
  • Moving mass 0.045 kg
  • Moving coil length 20 mm
  • Air gap height 6 mm
  • Damage X (peak to peak) 43 mm
  • Resonance frequency 40Hz
  • Moving coil resistance D.C 5.8 Ω
  • Mechanical quality factor 7.5
  • Electrical quality factor 0.35
  • Total quality factor 0.34
  • Equivalent air volume Cms 11 l
  • Mechanical compliance 342 µm / N
  • Mechanical resistance 1.52 kg / s
  • Efficiency 0.21 %
  • Effective surface 0.0154 m2
  • Maximum displacement 9 mm
  • Displacement volume 139 cm3
  • Moving coil inductance 0.95 mH
€ 266,00 Price incl. VAT
