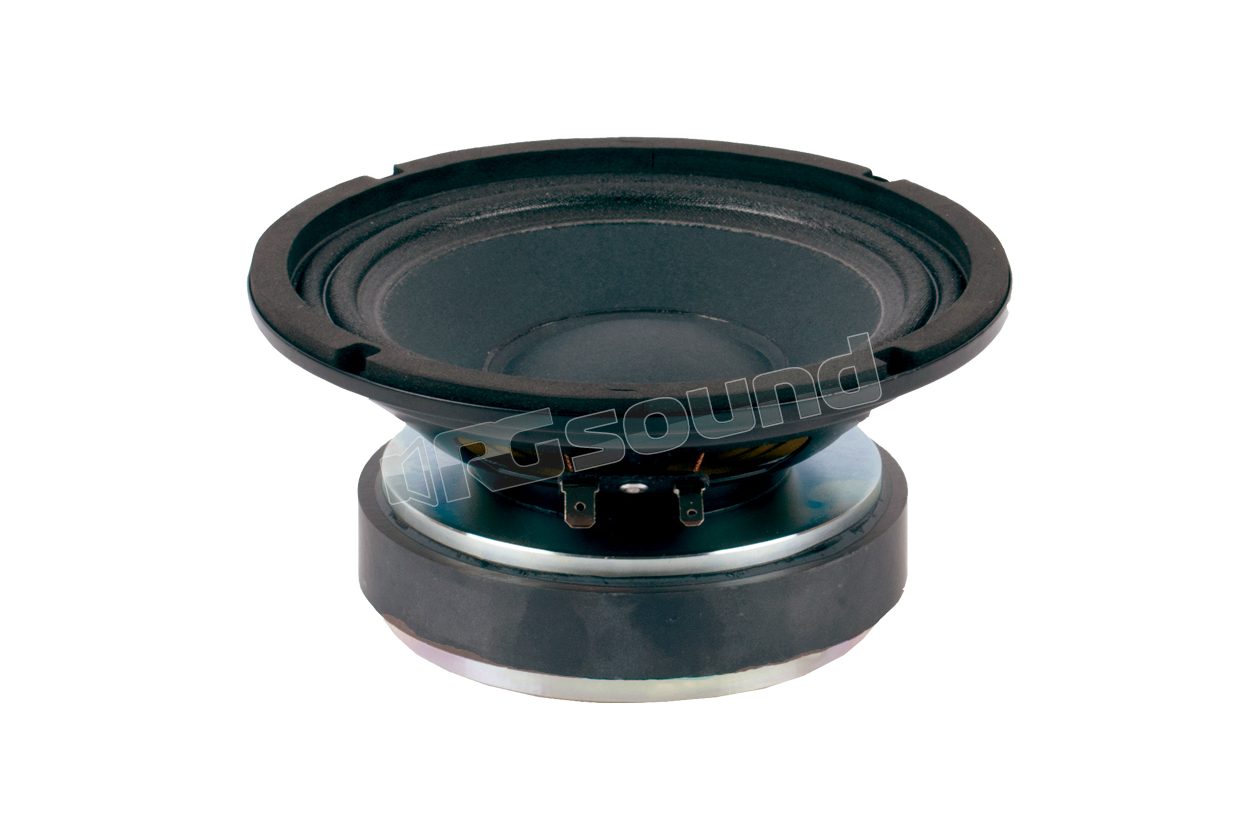

6CMV2 Low and mid frequency transducer

Beyma
Your price:
€ 49,00
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
Woofer and midwoofer
Speaker Size
165 mm
MAX Power
440 Watt
RMS Power
220 Watt
Frequency Response
95 - 8000 Hertz
Sensitivity
94 dB
Impedance
8 Ohm

Beyma 6CMV2 Midrange and woofer driver

The new Beyma 6CMV2 6.5" speaker handles 220 watts AES power and 440 watts program power, with an extended frequency response that is very linear and low distortion. Characterized by wide frequency response from 95 Hz to 8.0 kHz and high Xmax of 5.7 mm for a well-controlled cone, it is designed for speaker systems that require strong midrange and tight bass.

6CMV2 Features

  • High power handling: 440 W program power
  • 1.5" voice coil in copper wire
  • High sensitivity: 94 dB (1W / 1m)
  • Extended very linear frequency response and low distortion
  • Double-rolled fabric suspension treated
  • Stamped steel frame
  • Ferrite magnet
  • Designed for bass and mid-bass applications in compact and vented cabinets.

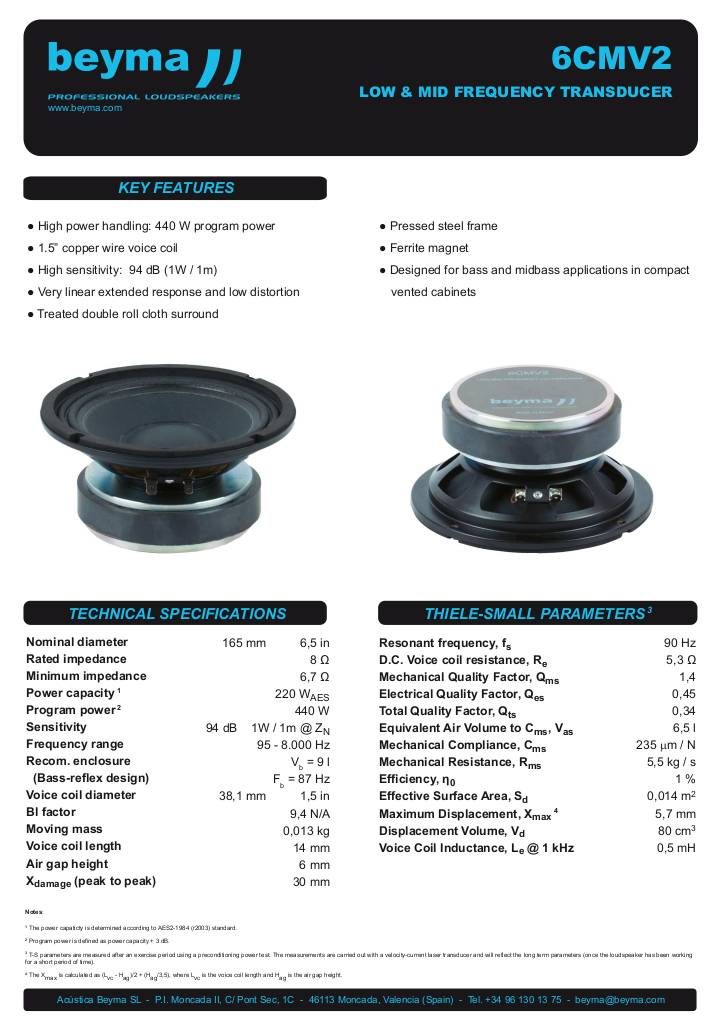

Scheda Tecnica

n-20230726143336-beyma-speakers-data-sheet-low-mid-frequency-6cmv2.pdf

Beyma 6CMV2 Technical Specifications

  • Nominal diameter 165 mm 6.5 in
  • Nominal impedance 8 Ω
  • Minimum impedance 6.7 Ω
  • Power 220 W
  • Program power 440 W
  • Sensitivity 94 dB 1W / 1m @ ZN
  • Frequency range 95 - 8.000 Hz
  • Voice coil diameter 38.1 mm 1.5 in
  • Bl factor 9.4 N/A
  • Moving mass 0.013 kg
  • Voice coil length 14 mm
  • Gap height 6 mm
  • Damage X (peak to peak) 30 mm
  • Resonance frequency 90 Hz
  • Voice coil resistance D.C. 5.3 Ω
  • Mechanical quality factor 1.4
  • Electrical quality factor 0.45
  • Total quality factor 0.34
  • Air volume equivalent to Cms 6.5 l
  • Mechanical compliance 235 µm / N
  • Mechanical resistance 5.5 kg / s
  • Efficiency 1 %
  • Effective area 0.014 m2
  • Maximum displacement 5.7 mm
  • Displacement volume 80 cm3
  • Voice coil inductance 0.5 m
€ 49,00 Price incl. VAT
