690 RS 6x9'' woofer with 25 mm voice coil and plexiglass cone

BLAM

Discontinued

Your price:
€ 145,00
Price per single item (VAT included)
Type
2-way separate kit
Frequency Response
55 - 28.000 Hertz
Woofer Size
150x230 mm
Tweeter Size
20 millimetri
MAX Power
150 Watt
RMS Power
75 Watt
Sensitivity
93 dB
Impedance
2 Ohm
Woofer Material
Cellulosa
Tweeter Material
Cupola in seta

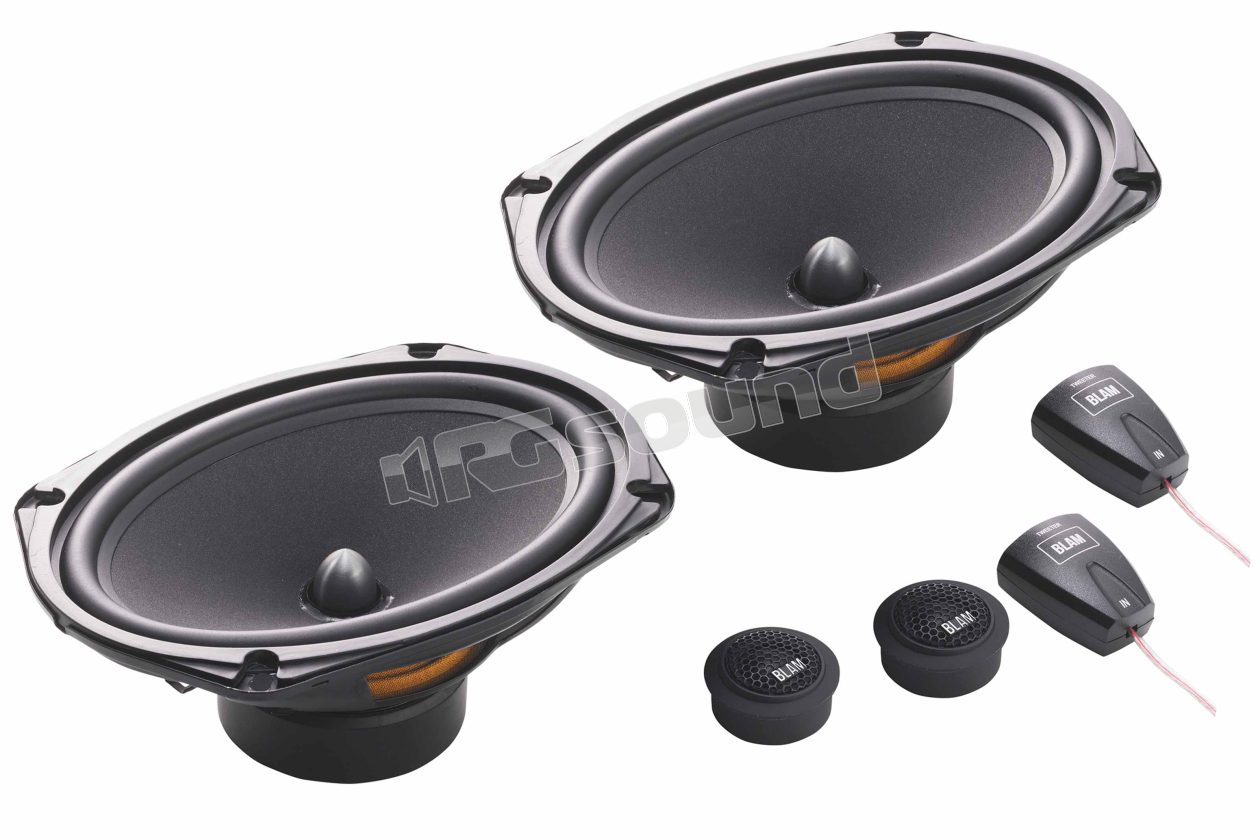

BLAM 690 RS 2-way system composed of a pair of 6x9" woofers with 25 mm voice coil and plexiglass cone, pair of 20 mm silk dome tweeters, dedicated high-pass crossovers.

Woofer with membrane in high-quality cellulose pulp coating, combined with peripheral butyl suspension. The generous magnet dimensions (85x17mm) contribute to generating extremely high efficiency and high power handling. The 2 Ohm voice coil doubles the power of all OEM car radios. The 20 mm (3/4 ") silk dome tweeter features an ultra-powerful neodymium motor, a soft dome and a very light moving coil thanks to the use of copper-aluminum alloy wire (CCAW) for high efficiency (25 mm / 1'' silk dome tweeter on 690RC).

The system includes two 6"x 9" woofers, two tweeters with flush-mount hardware and surface mount hardware included and two external 6 dB / oct. high-pass inline crossovers with adjustable tweeter level 0 dB or -3 dB.

BLAM 690 RS technical features

RMS Power 75 W

Maximum Power 150 W

Frequency Response 55-28,000 Hz

Sensitivity 93 dB

Impedance 2 Ohm

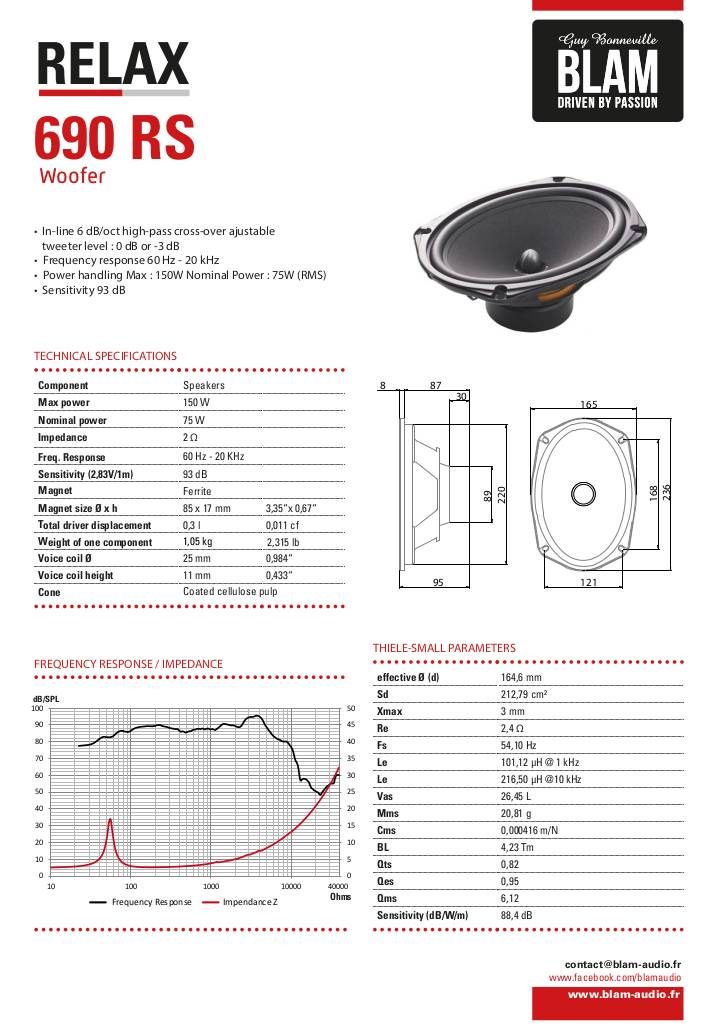

Scheda tecnica woofer

n-20181119174451-690-rs-technical-sheet-blam.pdf

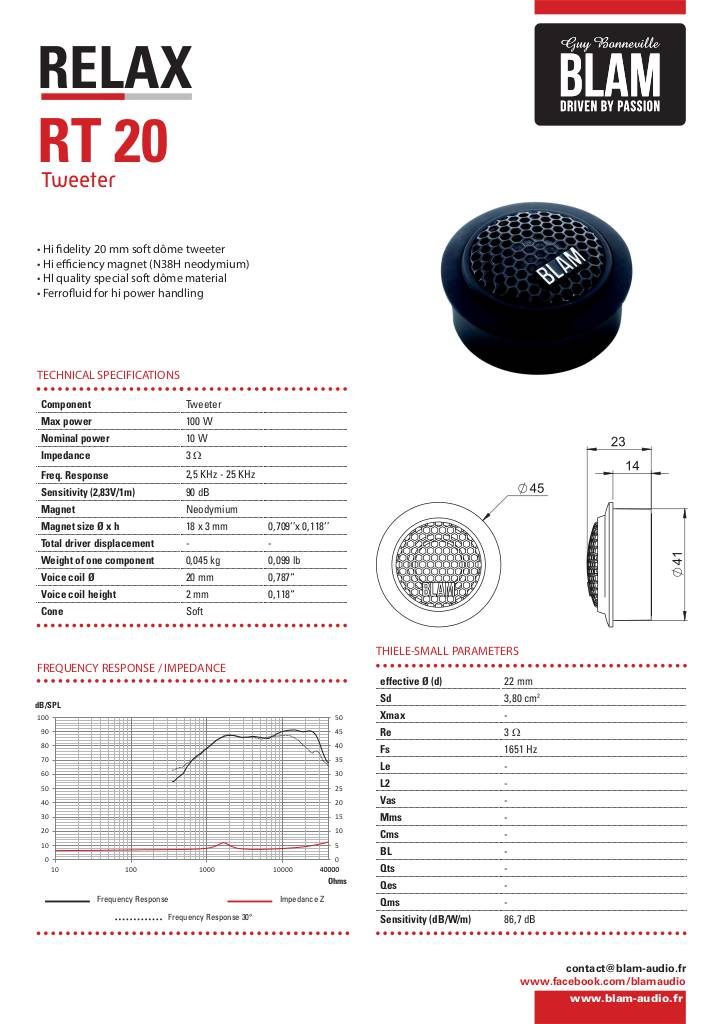

Scheda tecnica tweeter

n-20190507152040-rt-20-technical-sheet-blam-hd.pdf
Discontinued
