612f-D2 12" 2x2 Ohm Subwoofer

DD Audio Digital Designs
Your price:
€ 284,00
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to

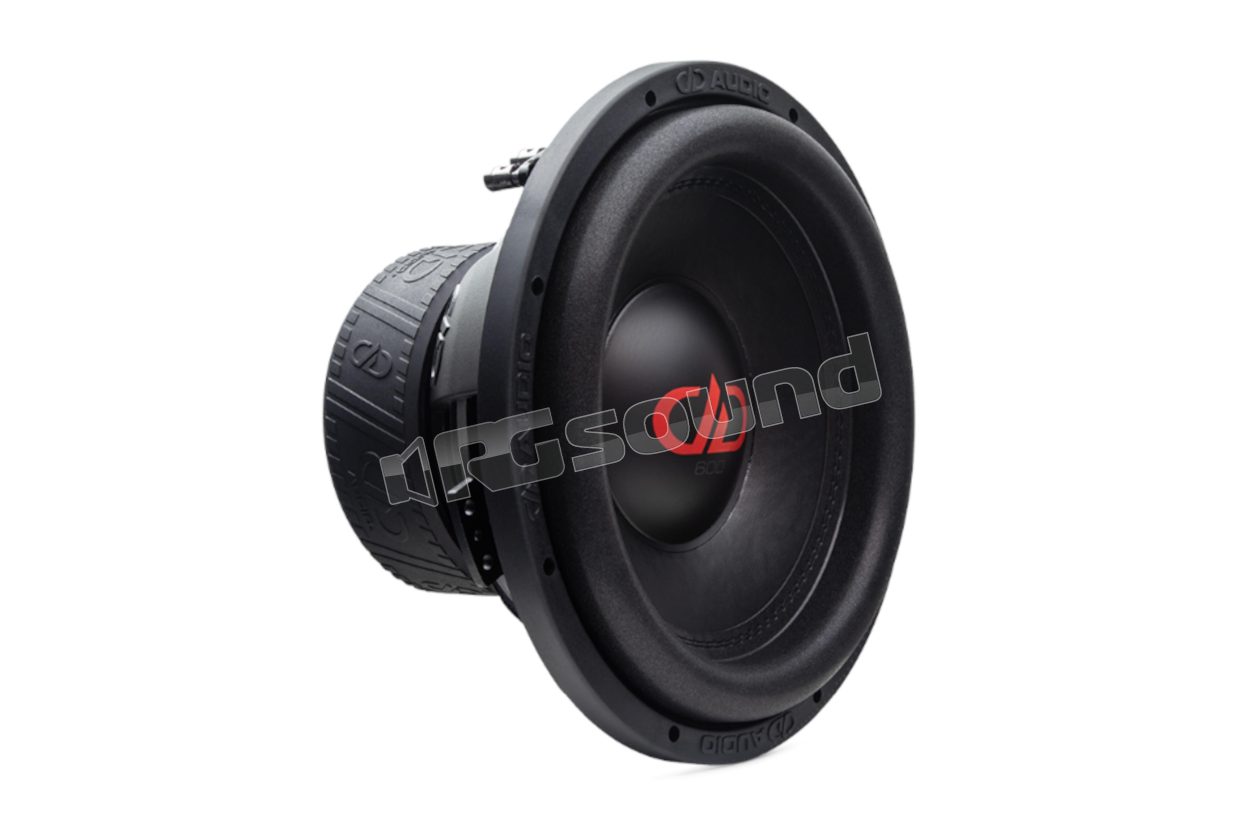

DD Audio Digital Designs DD612F-D2 12" Subwoofer 2x2 Ohm


The 600f series offers a wide range of the most appreciated Power Tuned subwoofers from DD AUDIO, designed to provide extraordinary power handling capacity, conceived to become the daily companion of the most demanding bass enthusiasts.

DD612F-D2 Features

  • "F" Revision - Previous revisions of the subwoofers from the 600, 700 and 800 series made them larger and better; in this latest "f" revision they have been equipped with improvements to the thermal cooling system designed with precision and of great relevance, as well as some design solutions literally at the cutting edge.
  • Thermal Transfer - The subwoofers of the "f" revision have been specially designed to ensure improved thermal transfer. The dual-stage aluminum heat sink conducts heat away from sensitive components, conveying it into open chambers where the free flow cooling system (Free Flow Cooling System) draws in cooler air to expel this heat.
  • Greater XMAX - With the increase in the thickness of the top plate, the mobile coil winding has been extended to maintain a greater amount of wire in the slot. A greater amount of coil wire, surrounded by both the steel of the motor and the billet aluminum, dissipates more heat from the coil in all conditions, optimizing electrical efficiency in long-term use.
  • Higher Surrounds - The increase in Xmax and excursion required improvements to the mobile system; therefore, higher surrounds were made and the spider was perfected to fully optimize the new motor design. The higher surrounds are double-stitched on non-pressed cones reinforced with fiberglass. The double layer and multiple spiders perpetuate the DD tradition of long-term durability.

DD Audio Digital Designs DD612F-D2 Technical Specifications

  • 12" Subwoofer
  • 2.5" mobile coil wound with wire produced in the United States
  • 2 x 2 ohm
  • Alucast frame with DD logos
  • Rated Power: 1000 W RMS, 3000 W peak
  • Weight: N/A
  • Mounting Diameter: 292.1 mm
  • Mounting Depth: 187 mm
  • X-Mech: 60 mm
  • x-max: ± 22 mm
  • fs: 31 Hz
  • qts: 0.4075
  • vas: 81.16 liters
  • Ported Enclosure Recommended: 49-78 liters (NET)
  • Sealed Enclosure Recommended: N/A
€ 284,00 Price incl. VAT
