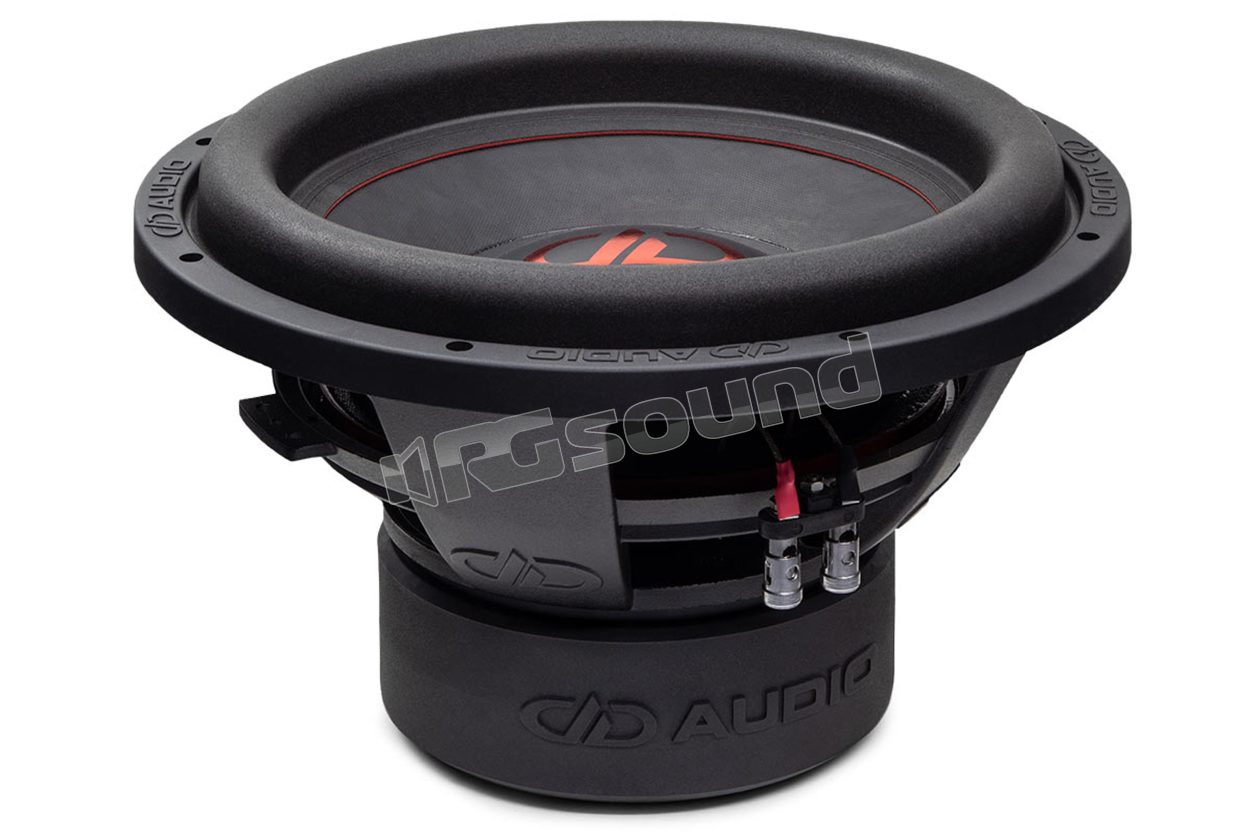

612e-D2 Red Line 30cm Subwoofer

DD Audio Digital Designs

Discontinued

Your price:
€ 249,10
Price per single item (VAT included)
Type
Subwoofer
Speaker Size
300 mm
MAX Power
2400 Watt
RMS Power
500 - 800 Watt
Impedance
2 + 2 Ohm
Installation Depth
171 mm
Woofer Material
Fibra di vetro e cellulosa

DD Audio DD612e-D2 subwoofer Red Line 30cm, with dual 2 Ohm voice coil

The new "E" version features a larger motor size, a thicker top plate and a longer voice coil winding length.

The 600 Series is an excellent starting point for a high-performance system design for an entry level installation. These subwoofers require 500-800 Watts RMS power to perform at their best, which means they can be driven with a moderate power amplifier. This keeps power consumption to a minimum. With a high-energy motor combined with a triple-layer laminated polycotone spider suspension, the 600 series performs best with vented enclosures.

DD612e-D2 Features

  • EROM surround
  • 2.5 inch high temperature voice coil
  • Triple Layer Deep Bass, high excursion spider system
  • Single cone in fiberglass and natural pulp
  • Die-cast aluminum basket

DD Audio DD612e-D2 Technical Specifications

  • Speaker size (inches): 12
  • Speaker size (MM): 304.8
  • Watts RMS: 500 - 800
  • Peak watts: 2400
  • Impedance: D2
  • VCD (input): 2.5
  • VCD (MM): 63.5
  • Piston diameter (inches): 10 1/8
  • Piston diameter (MM): 257.175
  • Fa (Hz): 32.3
  • Qms: 4.646
  • Qes: 0.472
  • Qt: 0.428
  • Vas: 40.22
  • Xmech (In): 2.6
  • Xmechanical (MM): 66
  • Xmax (In): 0.591
  • Xmax (MM): 15
  • Frame outer diameter (inches): 12 3/4
  • Frame outer diameter (MM): 323.85
  • Frame outer diameter with gasket (in): 12 7/8
  • Frame outer diameter with gasket (MM): 327.025
  • Mounting diameter (inches): 11.5
  • Mounting diameter (MM): 292.1
  • Mounting depth (inches): 6 3/4
  • Mounting depth (MM): 171.45
  • Motor diameter (inches): 7
  • Motor diameter (MM): 177.8
  • Motor depth (inches): 2 7/8
  • Motor depth (MM): 73.025
  • Woofer displacement (CuFt): 0.09
  • Woofer displacement (liters): 2.549
  • Enclosure with ports (CuFt): 1.75 - 2.75
  • Enclosure with ports (Liters): 49.555 - 77.871
Discontinued
