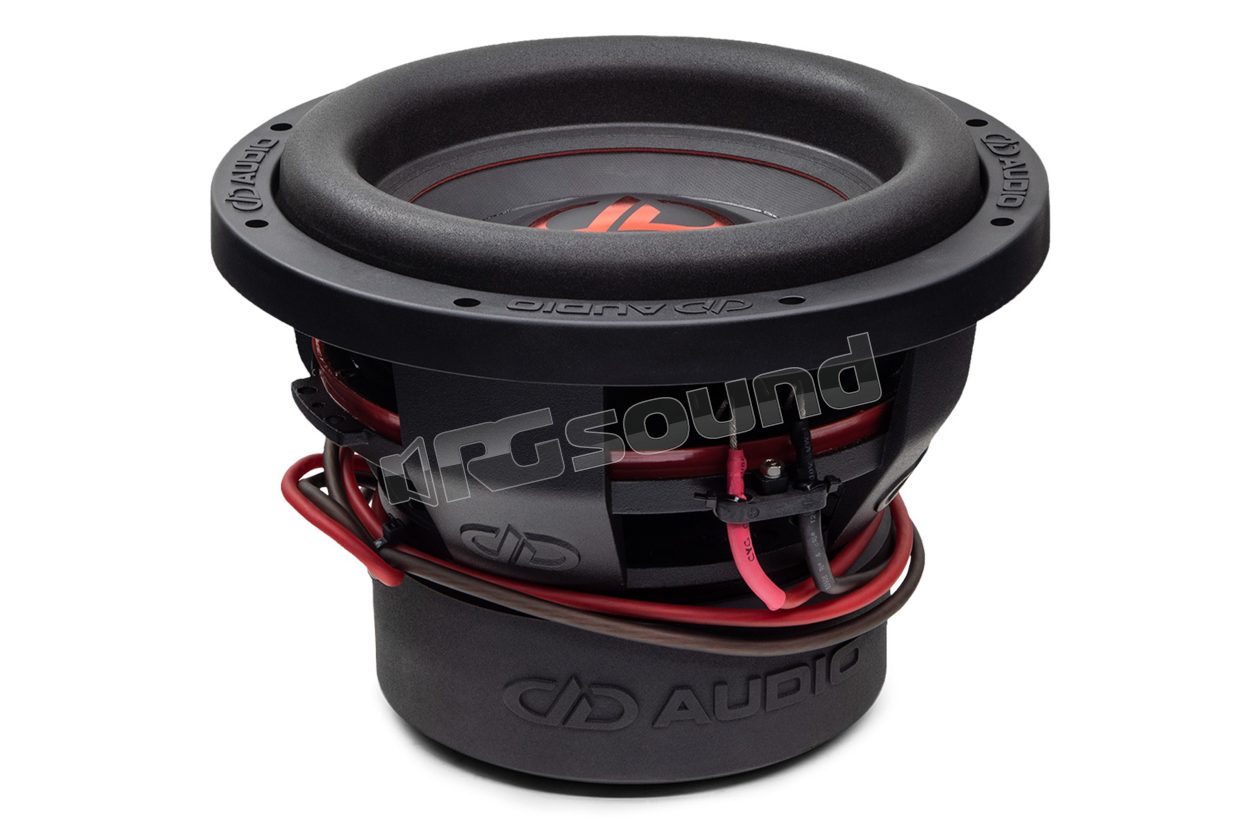

610e-D4 Red Line 25 cm Subwoofer with Dual 4 Ohm Voice Coil

DD Audio Digital Designs

Discontinued

Your price:
€ 229,10
Price per single item (VAT included)
Type
Subwoofer
Speaker Size
250 mm
MAX Power
2400 Watt
RMS Power
500 - 800 Watt
Impedance
4 + 4 Ohm
Installation Depth
168 mm
Woofer Material
Fibra di vetro e cellulosa

DD Audio DD610e-D4 subwoofer Red Line 25cm, with dual 4 Ohm voice coil

The new "E" version features a larger motor size, greater top plate thickness and increased voice coil winding length.

The 600 Series is an excellent starting point for a high performance system design for an entry level installation. These subwoofers require 500-800 Watts RMS power to perform at their best, which means they can be driven with a moderate power amplifier. This keeps power consumption to a minimum. With a high energy motor paired with a triple layer laminated polycotone spider suspension, the 600 series performs best with vented enclosures.

DD610e-D4 Features

  • EROM surround
  • 2.5 inch high temperature voice coil
  • Triple Layer Deep Bass, high excursion spider system
  • Single cone in fiberglass and natural pulp
  • Die-cast aluminum basket

DD Audio DD610e-D4 Technical Specifications

  • Speaker size (inches): 10
  • Speaker size (MM): 254
  • Watts RMS: 500 - 800
  • Peak watts: 2400
  • Impedance: D4
  • VCD (input): 2.5
  • VCD (MM): 63.5
  • Piston diameter (inches): 8 1/8
  • Piston diameter (MM): 206.375
  • Fa (Hz): 32.3
  • Qms: 4.558
  • Qes: 0.434
  • Qt: 0.396
  • Vas: 18.59
  • Xmech (In): 2.6
  • Xmechanical (MM): 66
  • Xmax (In): 0.591
  • Xmax (MM): 15
  • Frame outer diameter (inches): 10 1/4
  • Frame outer diameter (MM): 260.35
  • Frame outer diameter with gasket (in): 10 7/8
  • Frame outer diameter with gasket (MM): 276.225
  • Mounting diameter (inches): 10 1/8
  • Mounting diameter (MM): 168.275
  • Mounting depth (inches): 6 5/8
  • Mounting depth (MM): 168.275
  • Motor diameter (inches): 7
  • Motor diameter (MM): 177.8
  • Motor depth (inches): 2 7/8
  • Motor depth (MM): 73.025
  • Woofer displacement (CuFt): 0.08
  • Woofer displacement (liters): 2.265
  • Ported enclosure (CuFt): 1.25 - 1.5
  • Ported enclosure (liters): 35.396 - 42.475
