610d

DD Audio Digital Designs

Discontinued

Your price:
€ 179,10
Price per single item (VAT included)
Type
Subwoofer
Speaker Size
300 mm
RMS Power
300 - 600 Watt
Installation Depth
140 mm
Woofer Material
Fibra di vetro e cellulosa

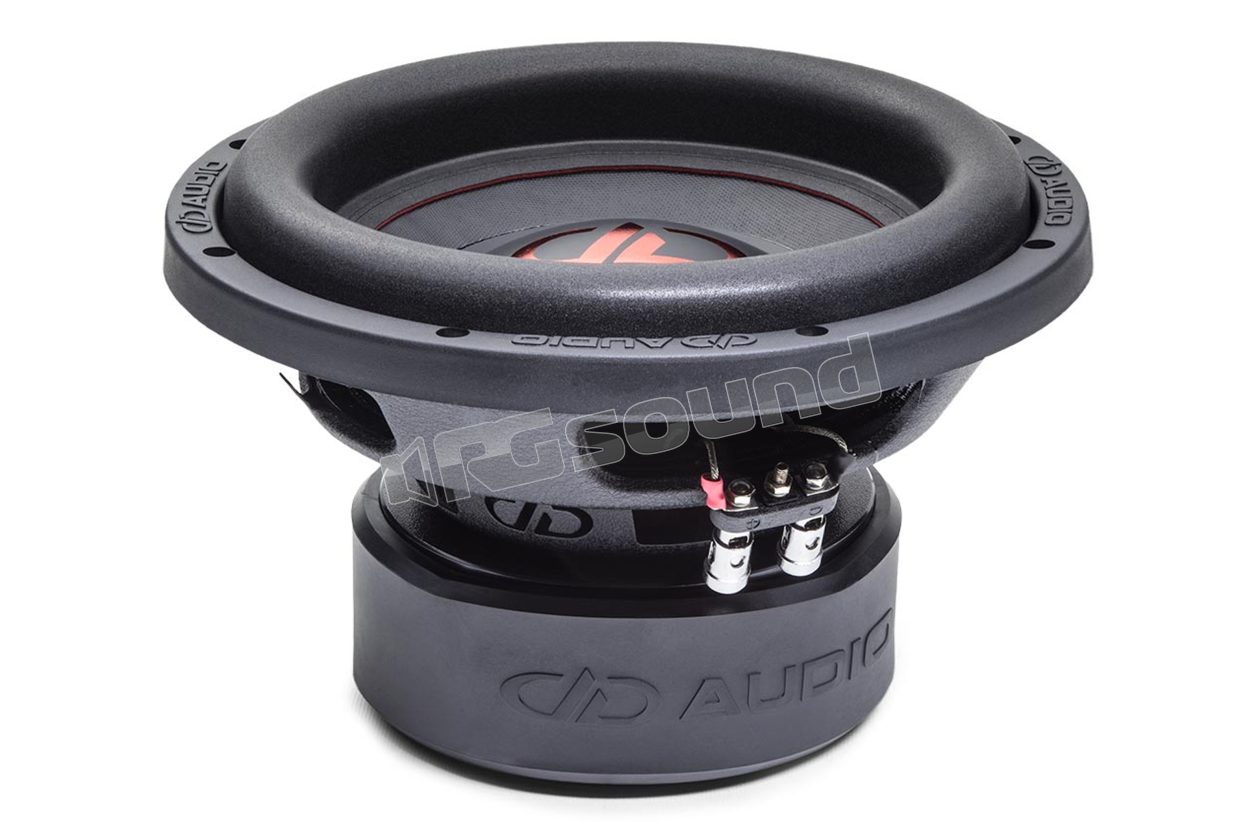

DD Audio 610d 30cm (10") subwoofer from the 600 Series, with excellent performance for entry level systems.

This subwoofer will demonstrate its power with a minimum of 300-600 Watts, which means that even multiple woofer systems can be driven with a moderately powered amplifier. This keeps electrical upgrades to a minimum with less strain on the vehicle. With a high-energy motor paired with a triple layer laminated polycotton spider suspension, the 600 series performs at its best with vented enclosures.

EROM surround
2.5 inch high temperature voice coil
Triple Layer Deep Bass, high excursion spider system
Single cone fiberglass and natural pulp

DD Audio DD610d technical specifications

Speaker size (inches): 10
Speaker size (MM): 254
RMS Watts: 300 - 600
Peak Watts: 1800
Impedance: D2 / D4
VCD (input): 2.5
VCD (MM): 63.5
Piston diameter (inches): 8
Piston diameter (MM): 203.2
Fs (Hz): 34.99
Qms: 6.114
Qes: 0.5562
Qt: 0.510
Vas: 17.01
Xmech (inches): 2.520
Xmechanical (MM): 64
Xmax (in): 0.433
Xmax (MM): 11
Frame outer diameter (inches): 10 1/8
OD frame (MM): 257.175
Frame outer diameter with gasket (in): 10 3/8
Frame outer diameter with gasket (MM): 263.525
Mounting diameter (inches): 9 3/16
Mounting diameter (MM): 233.362
Mounting depth (inches): 5 1/2
Mounting depth (MM): 139.7
Motor diameter (inches): 6 1/2
Motor diameter (MM): 165.1
Motor depth (inches): 2 1/2
Motor depth (MM): 63.5
Woofer displacement (CuFt): 0.08
Woofer displacement (liters): 2.265
Enclosure with ports (CuFt): 1.25 - 1.5
Enclosure with ports (liters): 35.396 - 42.475
Shipping weight (pounds): 18
Shipping weight (KG): 8.165

Discontinued
