608d

DD Audio Digital Designs

Discontinued

Your price:
€ 169,10
Price per single item (VAT included)
Type
Subwoofer
Speaker Size
200 mm
MAX Power
1800 Watt
RMS Power
300 - 600 Watt
Installation Depth
146 mm
Woofer Material
Fibra di vetro e cellulosa

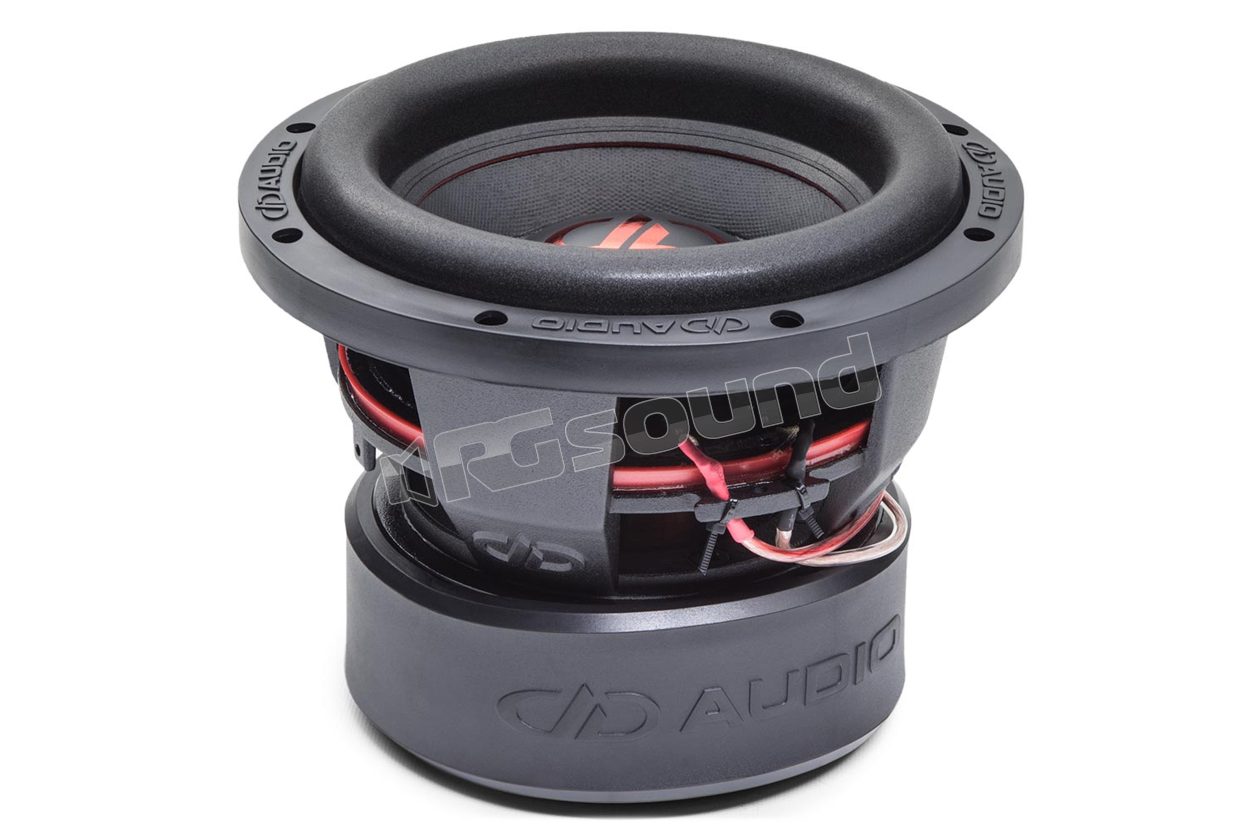

DD Audio 608d 20cm (8") subwoofer from the 600 Series, with excellent performance for entry level systems.

This subwoofer will demonstrate its power with a minimum of 300-600 Watts, which means that even multiple woofer systems can be driven with a moderately powered amplifier. This keeps electrical upgrades to a minimum with less strain on the vehicle. With a high energy motor paired with a triple layer laminated spider suspension in polycotone, the 600 series performs best with vented enclosures.

EROM surround
2.5 inch high temperature voice coil
Triple Layer Deep Bass, high excursion spider system
Single cone in fiberglass and natural pulp

DD Audio DD608d technical specifications

Speaker size (inches): 8
Speaker size (MM): 203.2
Watts RMS: 300 - 600
Peak Watts: 1800
Impedance: D2 / D4
VCD (input): 2.5
VCD (MM): 63.5
Piston diameter (inches): 6 3/8
Piston diameter (MM): 161.925
Fa (Hz): 38.36
Qms: 5.758
Qes: 0.4991
Qt: 0.4593
Vas: 7.377
Xmech (inches): 2.520
Xmeccanical (MM): 64
Xmax (in): 0.511811
Xmax (MM): 13
Outer frame diameter (inches): 8 5/16
Outer frame diameter (MM): 211.137
Outer frame diameter with gasket (in): 8 1/2
Outer frame diameter with gasket (MM): 215.9
Mounting diameter (inches): 7 3/8
Mounting diameter (MM): 187.325
Mounting depth (inches): 5 3/4
Mounting depth (MM): 146.05
Motor diameter (inches): 6 1/2
Motor diameter (MM): 165.1
Motor depth (inches): 2 1/2
Motor depth (MM): 63.5
Woofer displacement (CuFt): 0.07
Woofer displacement (Liters): 1.982
Ported enclosure (CuFt): 0.75 - 1.25
Ported enclosure (Liters): 21.238 - 35.396
Shipping weight (pounds): 17
Shipping weight (KG): 7.711

Discontinued
