5MP60N 5" Woofer 8ohm 88dB 50W Ferrite

Beyma
Your price:
€ 64,00
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to

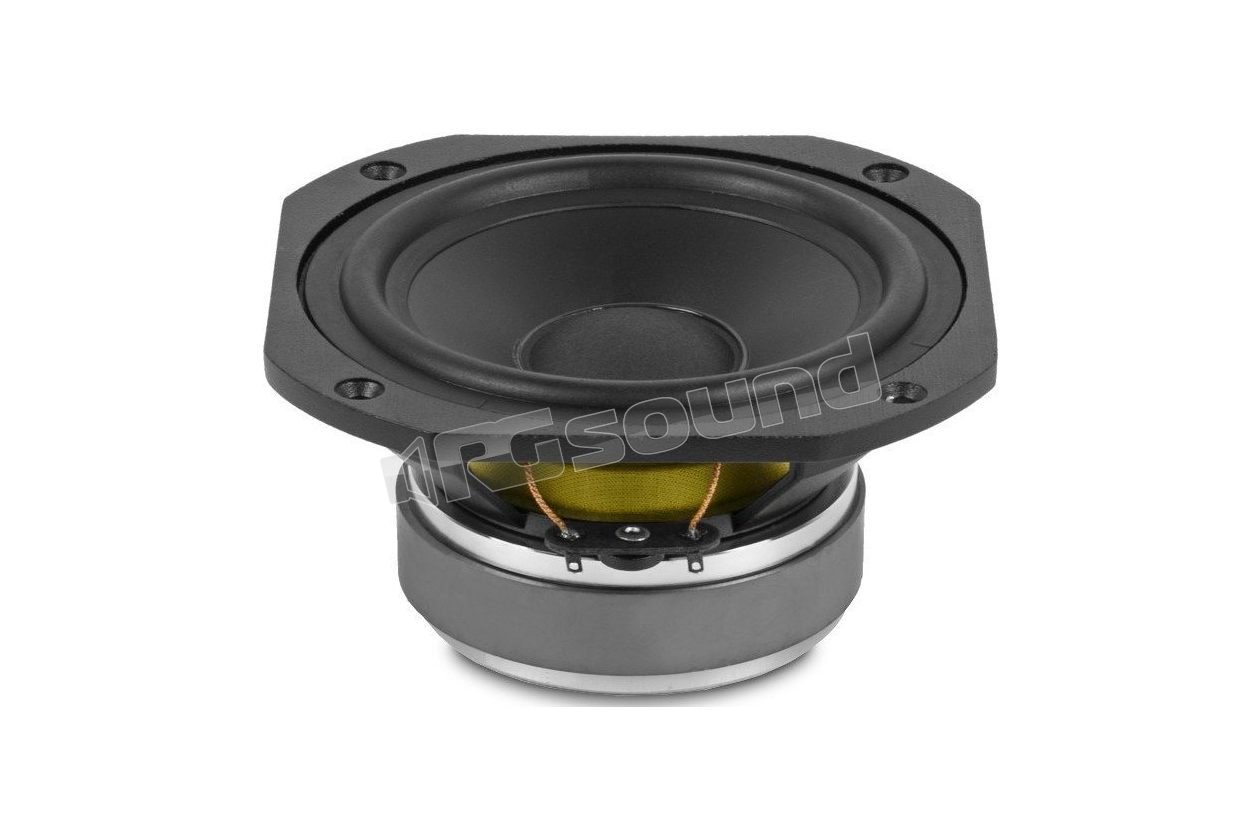

Beyma 5MP60N 5" Woofer 8ohm 88dB 50W Ferrite

Features

  • Rated Power: 100 W
  • Sensitivity: 88 dB (1 W / 1 m)
  • Uniform, linear and wide frequency response
  • Copper short-circuit cup for lower harmonic distortion
  • Extended controlled excursion: Xmax ± 5.5 mm
  • Peak-to-peak excursion of 20 mm before damage
  • Particularly suitable for small bass-reflex speakers intended for high-quality monitoring applications

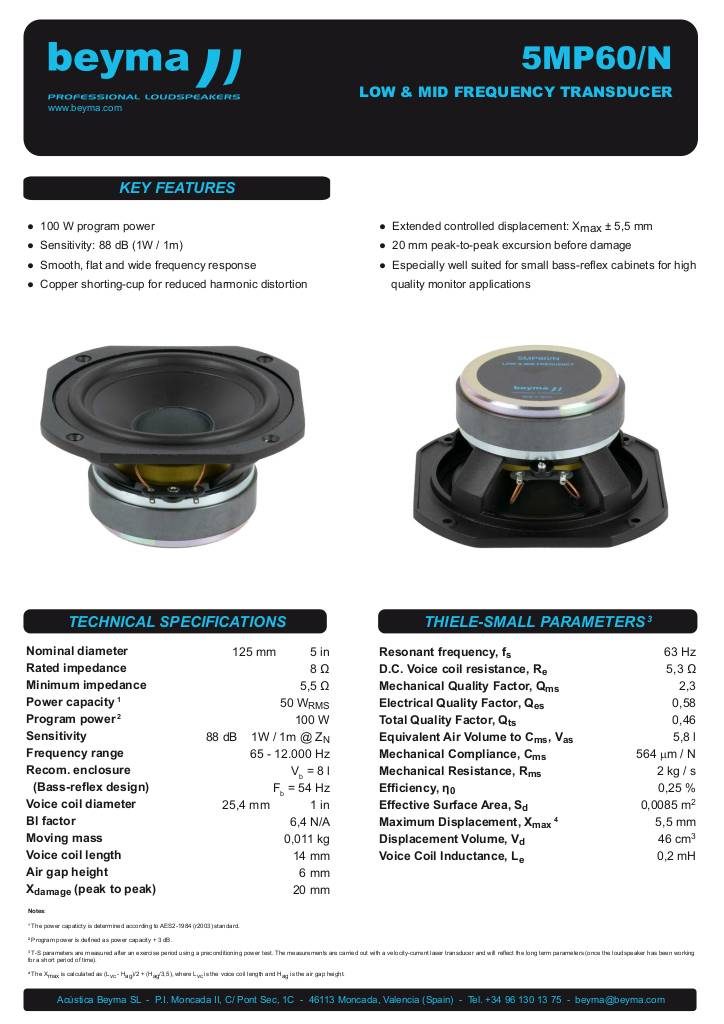

Scheda tecnica

n-20260623112821-5mp60n.pdf

Beyma 5MP60N Technical Specifications

  • Nominal diameter 125 mm 5 in
  • Nominal impedance 8 Ω
  • Minimum impedance 5.5 Ω
  • Rated power 1 50 W RMS
  • Program power 2 100 W
  • Sensitivity 88 dB 1 W / 1 m @ ZN
  • Frequency range 65 - 12.000 Hz
  • Recommended acoustic enclosure (bass-reflex design) Vb = 8 l Fb = 54 Hz
  • Voice coil diameter 25.4 mm 1 in
  • Bl factor 6.4 N/A
  • Moving mass 0.011 kg
  • Voice coil length 14 mm
  • Air gap height 6 mm
  • Xdamage (peak to peak) 20 mm
€ 64,00 Price incl. VAT
