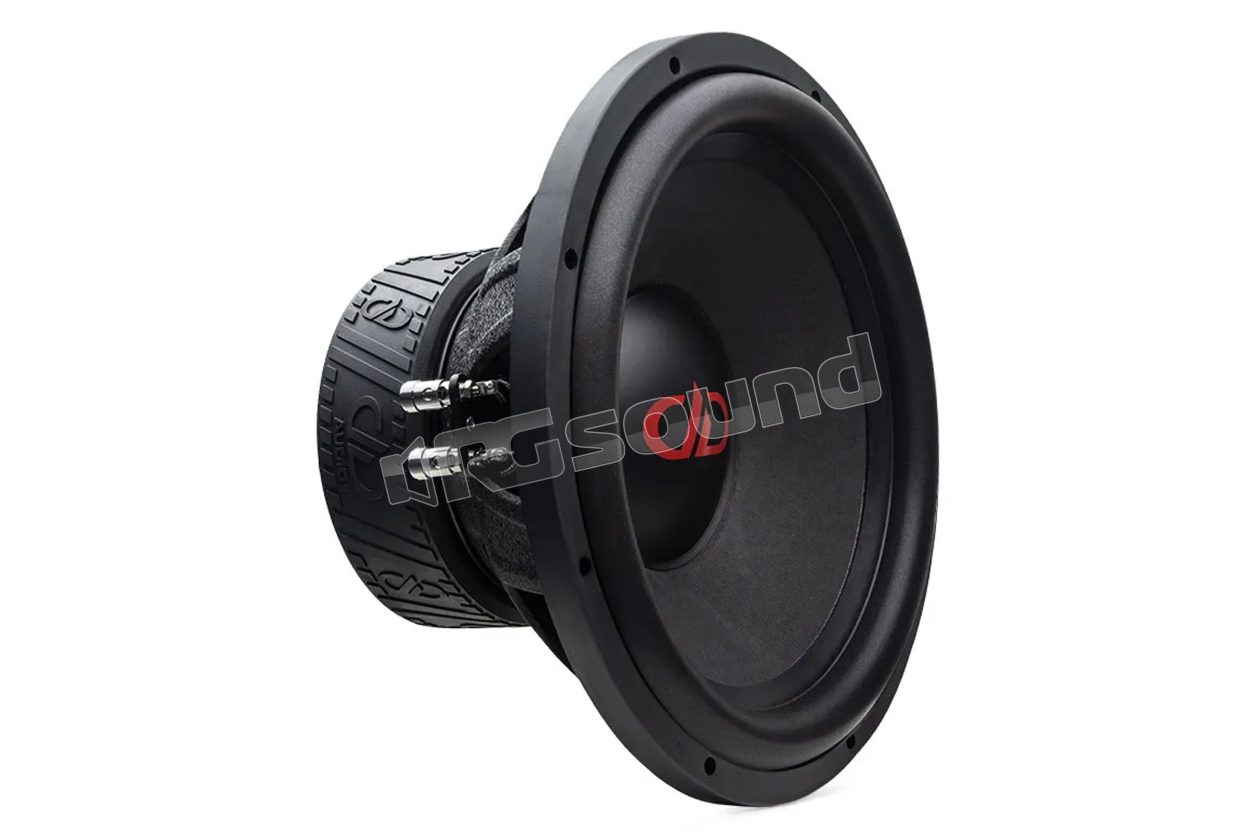

512e-D4 30cm Subwoofer 500 Series

DD Audio Digital Designs
Your price:
€ 189,00
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
Subwoofer
Speaker Size
300 mm
MAX Power
2100 Watt
RMS Power
700 Watt
Impedance
4 + 4 Ohm
Installation Depth
165 mm
Woofer Material
Fibra di vetro

DD Audio 512e-D4 12" (30cm) subwoofer with steel frame, 3" voice coil, dual 4 Ohm voice coils, 2100 Watts

The brand new revision of the 500 "e" Series features an 8" model with 2.5" voice coil and 100 oz magnet, and 10", 12" and 15" models with 3" voice coil and 120 oz magnet. These new speakers are equipped with a 12 mm top plate and longer voice coil windings that determine a 50% increase in Xmax. Power handling increases to 500 Watts on the 508 model and to 700 Watts on the 510, 512 and 515 models. Updates to this series include cones with untreated pressed paper and loaded in fiberglass, higher and thicker EROM edges with black stitching, heavier dual-layer spiders with integrated tinsel conductors and new designs for the basket and motor boot that elevate the aesthetics with the DD brand.

Features

  • Free flow cooling system
  • High temperature mobile voice coil
  • Dual layer spider system with integrated tinsel conductors
  • Basket with DD logo
  • Double stitched EROM ropes (508e)
  • Untreated cones loaded in fiberglass
  • Magnet with embossed DDesign logo
  • Power 700W RMS (500W RMS 508e)

DD Audio 512e-D4 technical specifications

  • Speaker size 12" / 30cm
  • RMS Watts: 700
  • Peak Watts: 2100
  • Impedance: D4
  • VCD: 3"
  • Fs (Hz): 33
  • Qms: 4.88
  • Qes: 0.73
  • Qts: 0.64
  • Vas (liters): 30.16
  • BL (TM): 25
  • Xmech (MM): 30
  • Xmax (MM): 18
  • Frame OD (In): 12.125
  • Frame OD with gasket (In): 12.4
  • Mounting diameter (In): 11.02
  • Mounting depth (In): 6.5
  • Motor diameter (In): 7
  • Motor depth (In): 2.375
  • Magnet weight (Oz): 120
  • Woofer displacement (CuFt): 0.8
  • Enclosure with duct (CuFt): 1.75 - 2.75
