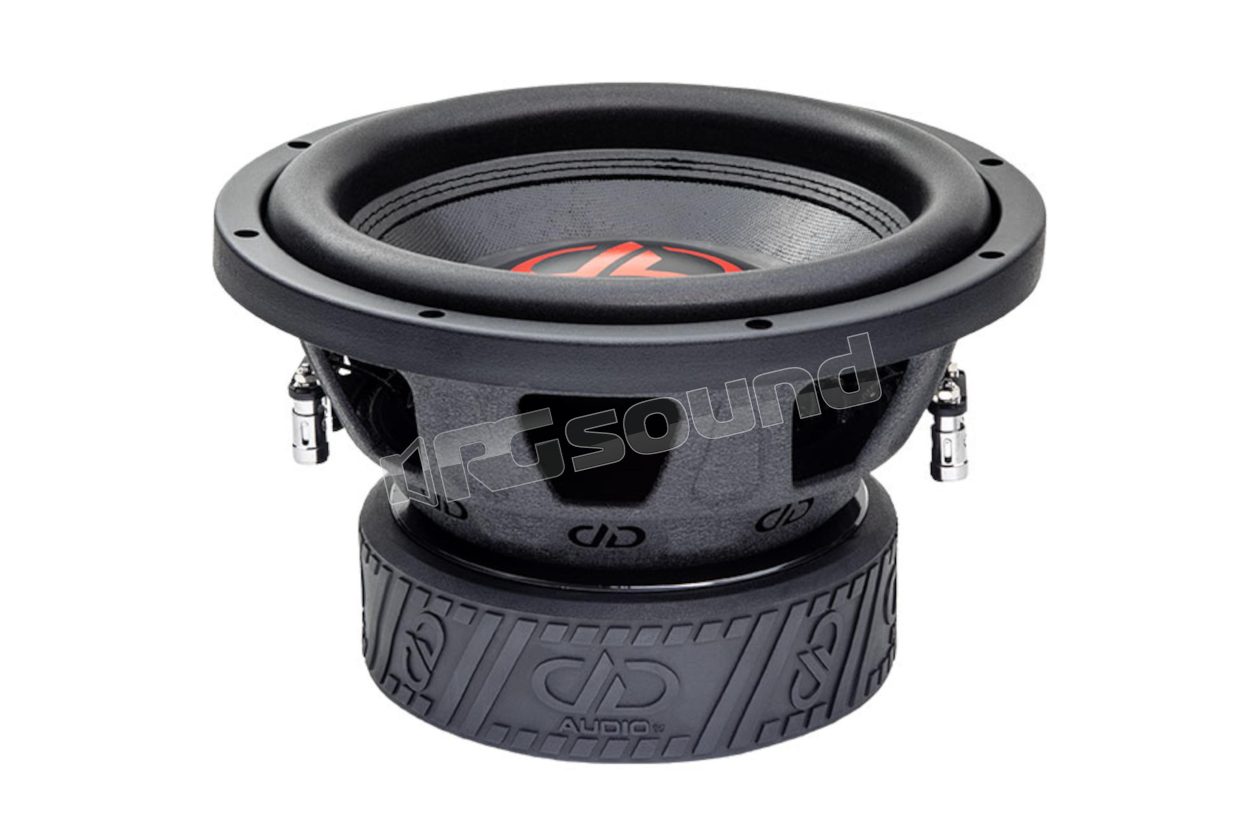

DD Audio DD510e D2 subwoofer 25cm / 10" dual coil 2 Ohm

The brand new "e" revision of the 500 Series features an 8" model equipped with a 2.5" voice coil and 100 ounce magnet, and 10", 12" and 15" models equipped with 3" voice coils with 120 ounce magnet motors. These new drivers are equipped with a 12 mm thicker top plate and longer voice coil windings that result in a 50% increase in Xmax. The rated power increases to 500 Watts on the 508 and to 700 Watts on the 510, 512 and 515 models.

Updates to this series include non-pressed paper cones with fiberglass reinforcement, higher and thicker EROM surrounds with black stitching, a heavier dual layer with integrated tinsel conductors and new basket and motor designs that improve aesthetics with the DD brand.

DD510e D2 Features

  • Free-flowing cooling system
  • High temperature resistant voice coil
  • Dual layer system with integrated tinsel arms
  • Extended pole
  • Basket with DD logo
  • EROM surrounds with dual stitching
  • Non-pressed cones reinforced with fiberglass
  • Magnet cover with embossed DDesign logo

DD Audio DD510e D2 Technical Specifications

  • Speaker size (inches) 10
  • RMS power 700
  • Peak power 2100
  • VCD (inches) 3
  • Voice coil impedance D2 / D4
  • Piston diameter (inches) 8
  • Fs (Hz) 38
  • Qms 4.96
  • Qes 0.76
  • Qts 0.65
  • BL (TM) 25
  • Vas (Ltr) 37.1
  • Xmech (MM) 30
  • Xmax (MM) 18
  • External frame diameter (inches) 10
  • External frame diameter with gasket (inches) 10.4
  • Mounting diameter (inches) 8.93
  • Mounting depth (inches) 6
  • Motor diameter (inches) 7
  • Motor depth (inches) 2.5
  • Magnet weight (ounces) 120
  • Displacement (cubic feet) 0.07
  • Ported enclosure (cubic feet) 1.25 - 1.5
  • Weight (pounds) 18
