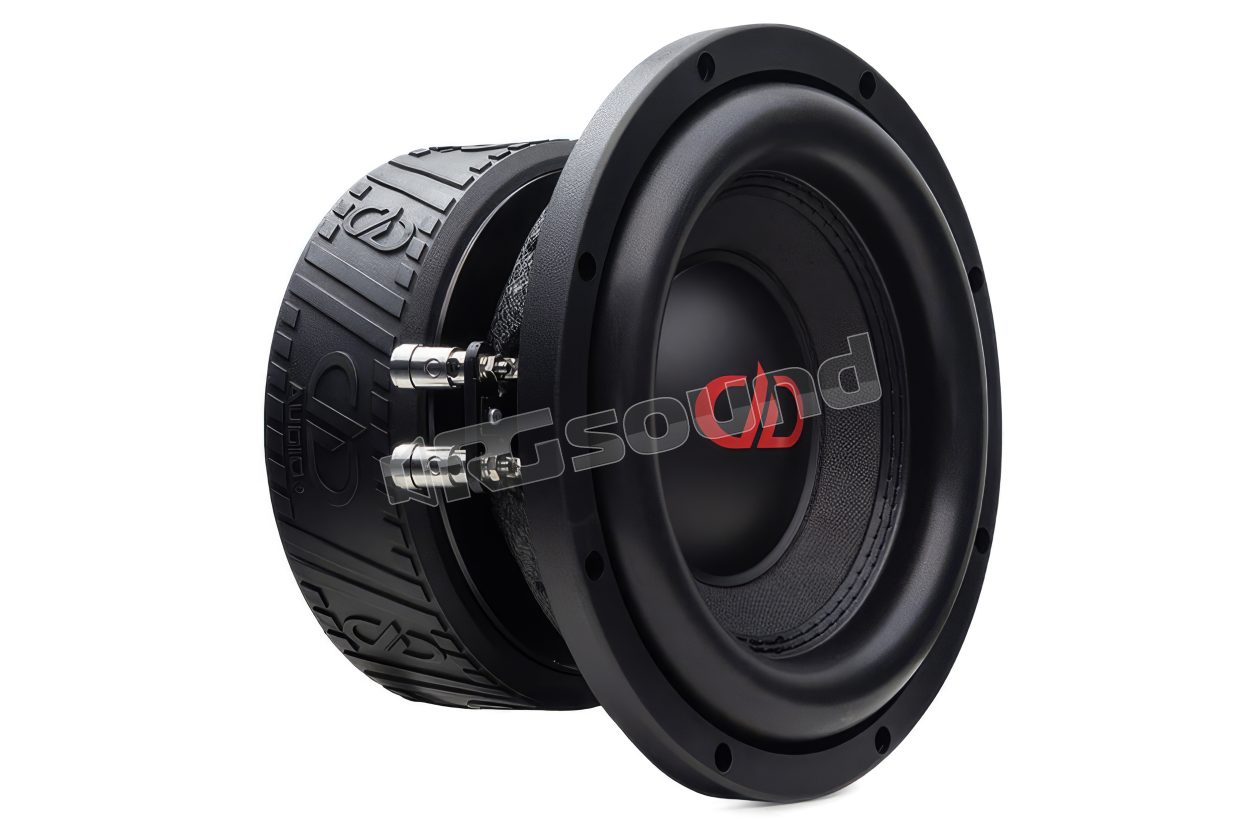

508e-D2 20cm subwoofer with dual 2 Ohm voice coil

DD Audio Digital Designs
Your price:
€ 122,00
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
Subwoofer
Speaker Size
200 mm
MAX Power
1500 Watt
RMS Power
500 Watt
Impedance
2 + 2 Ohm
Installation Depth
121 mm
Woofer Material
Cellulosa trattata

DD Audio 508e-D2 20cm (8") Subwoofer with steel frame, dual 2.5" voice coil 2 Ohm, 1500 W power

The brand new "e" revision of the 500 Series features an 8" model equipped with a 2.5" voice coil and 100 oz magnet, and 10", 12" and 15" models equipped with 3" voice coils with 120 oz magnet motors. These new drivers feature a 12 mm top plate and longer voice coil windings that result in a 50% increase in Xmax.

The maximum power increases to 500 Watts on the 508 model and to 700 Watts on the 510, 512 and 515 models. The upgrades to this series include treated non-pressed paper cones with fiberglass reinforcement, taller and thicker EROM surrounds with black stitching, heavier dual-layer spiders with integrated tinsel leads, as well as new basket and motor cover designs that enhance aesthetics with the DD brand.

DD508e-D2 subwoofer features

  • Free Flow cooling system
  • High temperature resistant voice coil
  • Dual layer spider system with integrated tinsel leads
  • Extended pole
  • Basket with DD logo
  • EROM surround with dual stitching
  • Treated non-pressed paper cone with fiberglass reinforcement
  • Magnet cap with embossed DDesign logo

DD Audio 508e-D2 technical specifications

  • Speaker size (inches): 8
  • RMS Power: 500 Watt
  • Peak power: 1500 Watt
  • Impedance: D2
  • VCD (inches): 2.5
  • Fs (Hz): 44
  • Qms: 5.01
  • Qes: 0.82
  • Qts: 0.71
  • Vas (liters): 4.19
  • BL (TM): 24
  • Xmech (mm): 22
  • Xmax (mm): 14
  • Frame outer diameter: 20.7cm / 8.25"
  • Frame outer diameter with gasket: 21 cm / 8.375"
  • Mounting diameter (inches): 17.8cm / 7.125"
  • Mounting depth (inches): 12.1 cm / 4.875
