508d-D4 dual 4 Ohm voice coil

DD Audio Digital Designs

Discontinued

Your price:
€ 139,10
Price per single item (VAT included)
Type
Subwoofer
Speaker Size
200 mm
MAX Power
1200 Watt
RMS Power
150 - 400 Watt
Impedance
4 + 4 Ohm
Installation Depth
125 mm
Woofer Material
Fibra di vetro e cellulosa

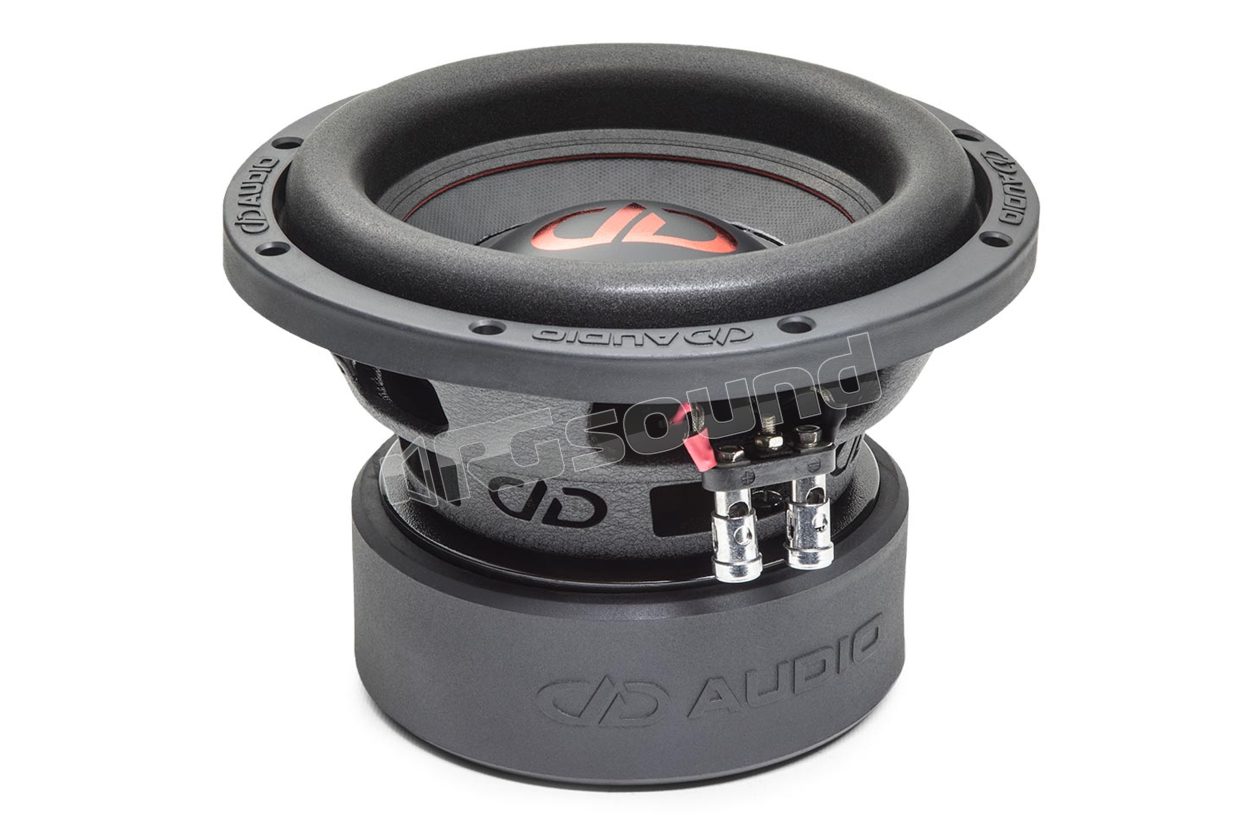

DD Audio DD508d subwoofer 20cm / 8" with dual 4 Ohm coil

The 500 series is composed of exceptionally performing subwoofers in their power class. With a highly efficient design, the 500 series can be easily driven to high output levels with just 150-400 Watts. Compared to the 200 series, the 500 series uses a longer coil, a more powerful motor and the suspensions are designed to handle higher transient peaks. These are very versatile subwoofers that perform well in sealed enclosures while also providing the additional energy and control needed for vented enclosure applications.

EROM surround
High temperature voice coil, 2.0"
Dual layer deep bass, high excursion spider system
Single fiberglass cone and natural pulp
Rear plate gap vent

DD Audio DD508dtechnical specifications

Speaker size (inches): 8
RMS Watts: 150 - 400
Peak Watts: 1200
Impedance: D4
VCD (in): 2
Piston diameter (inches): 6 3/8
Fa (Hz): 37.68
Qms: 5.858
Qes: 0.491
Qt: 0.453
Vas: 8.813
Xmechanical (MM): 64
Xmax (MM): 10
Outer frame diameter (inches): 8 5/16
Outer frame diameter with gasket (in): 5 1/2
Mounting diameter (inches): 7 3/16
Mounting depth (inches): 5
Motor diameter (inches): 5 1/2
Motor depth (inches): 2
Woofer displacement (CuFt): 0.06
Sealed enclosure (CuFt): 0.35 - 0.6
Ported enclosure (CuFt): 0.75 - 1.25
Shipping weight (pounds): 14
