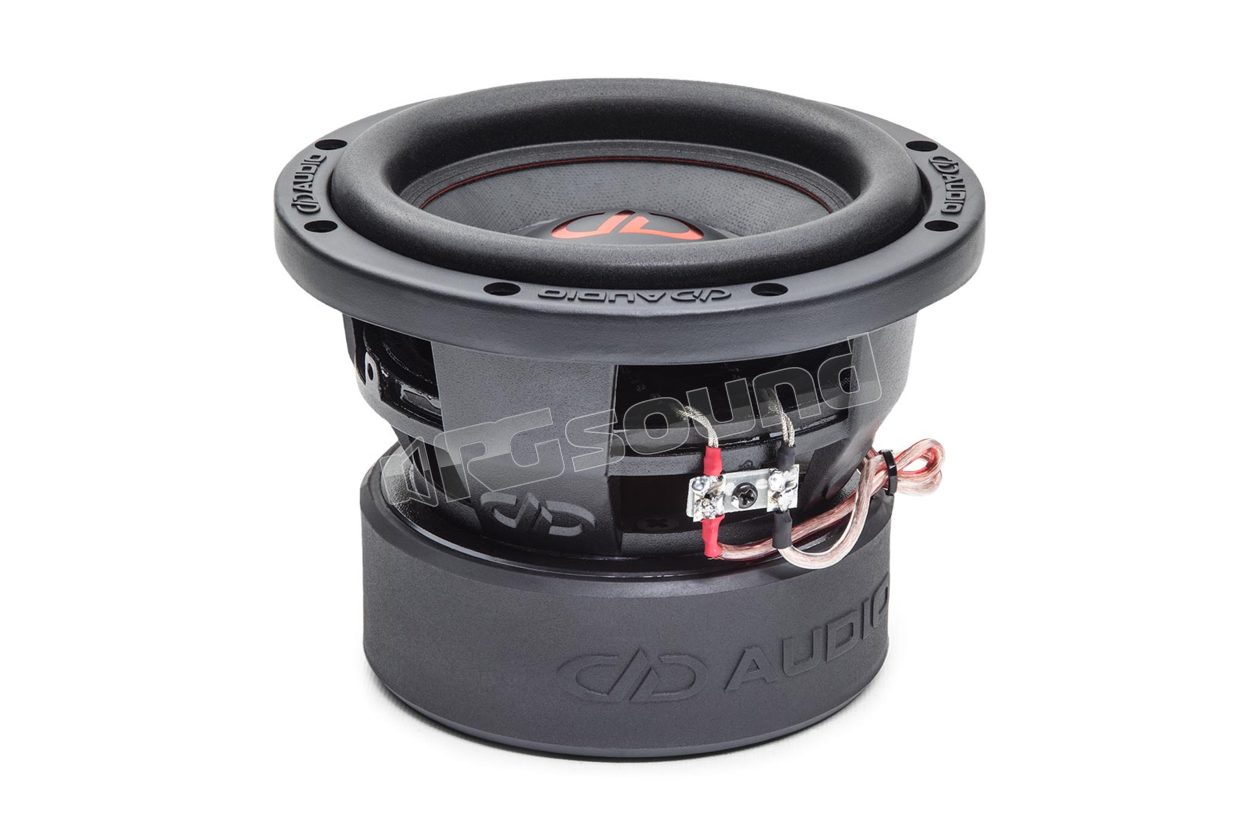

506d-D2 16.5cm subwoofer with dual 2 Ohm voice coil

DD Audio Digital Designs

Discontinued

Your price:
€ 139,10
Price per single item (VAT included)
Type
Subwoofer
Speaker Size
165 mm
MAX Power
1200 Watt
RMS Power
150 - 400 Watt
Impedance
2 + 2 Ohm
Installation Depth
112 mm
Woofer Material
Fibra di vetro e cellulosa

DD Audio 506d-D2 Subwoofer 6.5" / 16.5cm dual coil 2 Ohm

The 500 series is composed of exceptionally performing subwoofers in their power class. With a highly efficient design, the 500 series can be easily driven to high output levels with just 150-400 Watt. Compared to the 200 series, the 500 series utilizes a longer voice coil, a more powerful motor and the suspension is designed to handle higher transient peaks. These are very versatile subwoofers that work well in sealed enclosures while also providing the additional power and control needed for vented enclosure applications.

EROM surround
High temperature voice coil, 2.0"
Dual layer deep bass, high excursion spider system
Single cone fiberglass and natural pulp
Rear plate air gap vent

DD Audio DD506d technical specifications

Speaker dimensions (inches): 6.5
RMS Watts: 150 - 400
Peak Watts: 1200
Impedance: D2
VCD (in): 2
Piston diameter (inches): 5.375
Fa (Hz): 43.74
Qms: 4.907
Qes: 0.558
Qt: 0.501
Vas: 4.395
Xmechanical (MM): 56
Xmax (MM): 9
Frame outer diameter (inches): 7
Frame outer diameter with gasket (in): 7 1/8
Mounting diameter (inches): 6
Mounting depth (inches): 4 1/2
Motor diameter (inches): 5 1/2
Motor depth (inches): 2
Woofer displacement (CuFt): 0.04
Sealed enclosure (CuFt): 0.25 - 0.5
Ported enclosure (CuFt): 0.25 - 0.75
Shipping weight (pounds): 10.5

Discontinued
