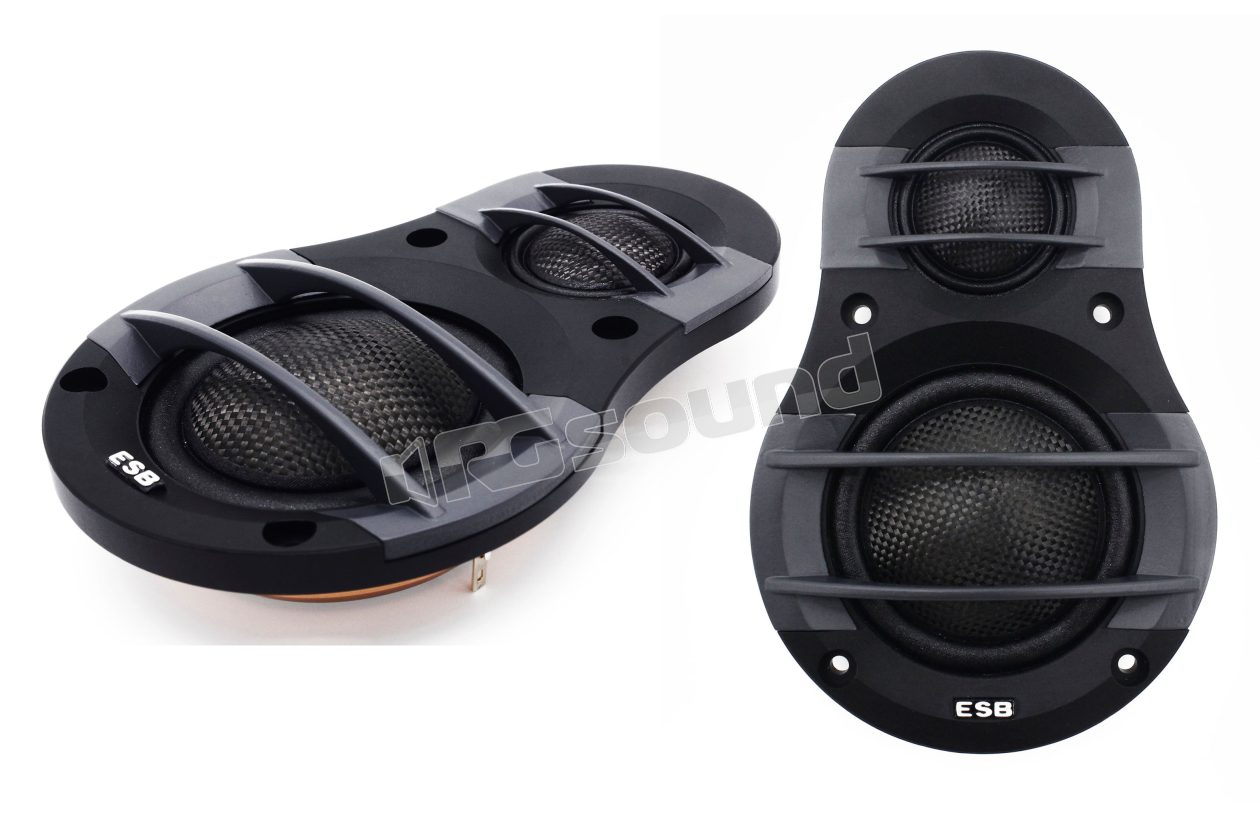

5.UMA Mid-high unit with midrange and tweeter

ESB car audio
Your price:
€ 598,00
Price per pair (VAT included)
Available on backorder
Calculating shipping costs to
Type
2-way separate kit
Frequency Response
500 - 25000 Hertz
Woofer Size
50 mm
Tweeter Size
28 millimetri
MAX Power
220 Watt
RMS Power
110 Watt
Sensitivity
91 dB
Impedance
4 Ohm
Woofer Material
Fibra di carbonio
Tweeter Material
Fibra di carbonio

ESB Audio 5.UMA Mid-High Unit with 50mm midrange and 28mm tweeter from the 5000 Series

This special and exclusive speaker concentrates the emissions of the midrange and tweeter in a single virtual point, minimizing phase delays and irregularities at the crossover point. Made of Avional aluminum with deep oxidation, the components use a very large neodymium magnet, optimized with computer simulations (FEA) to achieve great efficiency and improve linearity throughout the entire voice coil travel. The high modulability carbon fiber tweeter dome with integrated soft cloth suspension offers superb heat resistance, reduced weight and excellent self-damping, with a natural and linear response and extension to low frequencies. The midrange, also in carbon fiber, integrates a synthetic foam suspension, which guarantees a perfect balance between rigidity, weight and self-damping.

Carbon fiber ensures extremely natural and linear reproduction, with excellent extension at the extremes of the band. Great attention has been paid to the ventilation of the two components, through single axial ventilation on the tweeter and multiple on the midrange. Residual resonances are eliminated by the damping material under the dome, called dB Cloth. This extends the frequency response to the lower limits and reduces harmonic distortion. To improve control and damping, an acoustic resistance has been adopted on both components. Combined together, the two components are able to reproduce with perfect linearity the entire spectrum from 500Hz to 25KHz. Small permanent magnets secure the tweeter and midrange grille in the correct position and are easy to remove for customization.

5.UMA Features

  • 1.1"/28 mm dome tweeter
  • 2"/50 mm dome midrange
  • High quality neodymium magnet
  • Carbon fiber dome
  • Ferrofluuid cooling
  • Acoustic resistance control Qts
  • Metal parts machined in CNC
  • dB Cloth® dome damping material

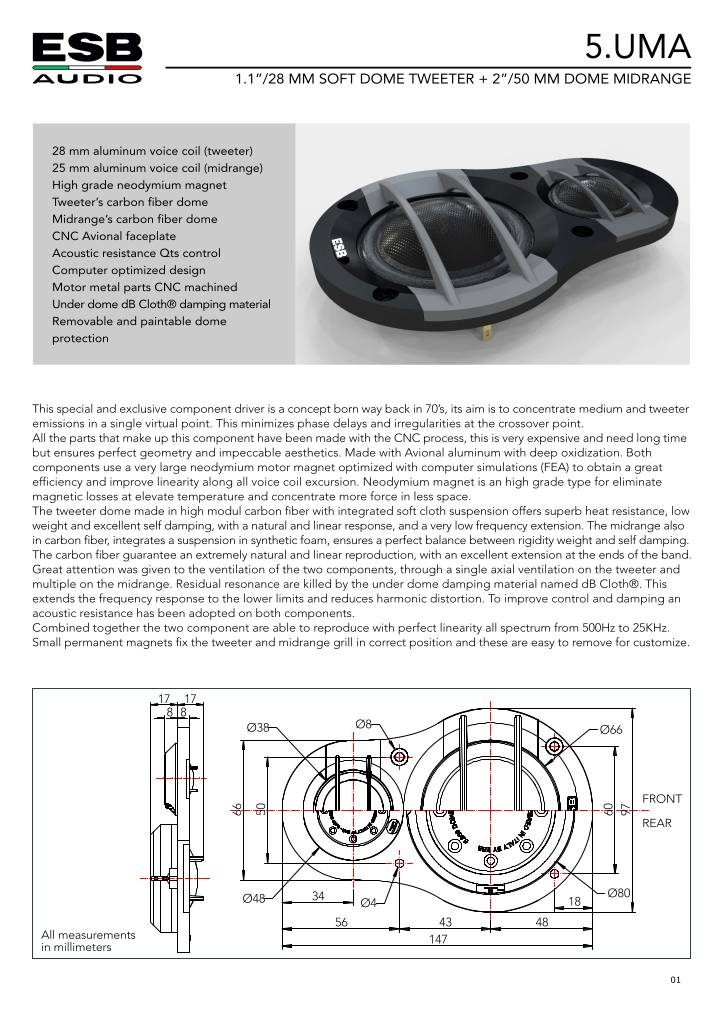

Scheda tecnica

n-20220118123304-datasheet5-uma-09-21.pdf

ESB 5.UMA Technical Specifications

  • Speaker type: Component midrange
  • Nominal diameter: 2"/50 mm
  • Nominal impedance (Znom): 4 Ohm
  • Continuous power handling: 120 W
  • Peak power handling: 240 W
  • Rec. Amplifier Power: 50 - 160 W (RMS)
  • Voice coil resistance (Re): 3.5 Ohm
  • Voice coil diameter: 25 mm
  • Free air resonance (Fs): 630 Hz
  • Sensitivity: 91.0 dB @ 1W/1m
  • 94.0 dB @ 2.83V/1m
  • Electrical "Q" (Qes): 1.009
  • Mechanical "Q" (Qms): 2.60
  • Total speaker "Q" (Qts): 0.75
  • With 48 dB/oct. HP filters. HP filters: 600 Hz - 5 KHz
  • With 24 dB/oct. HP filters. HP filters: 700 Hz - 5 KHz
  • With 12 dB/oct. HP filters. HP filters: 800 Hz - 5 KHz
