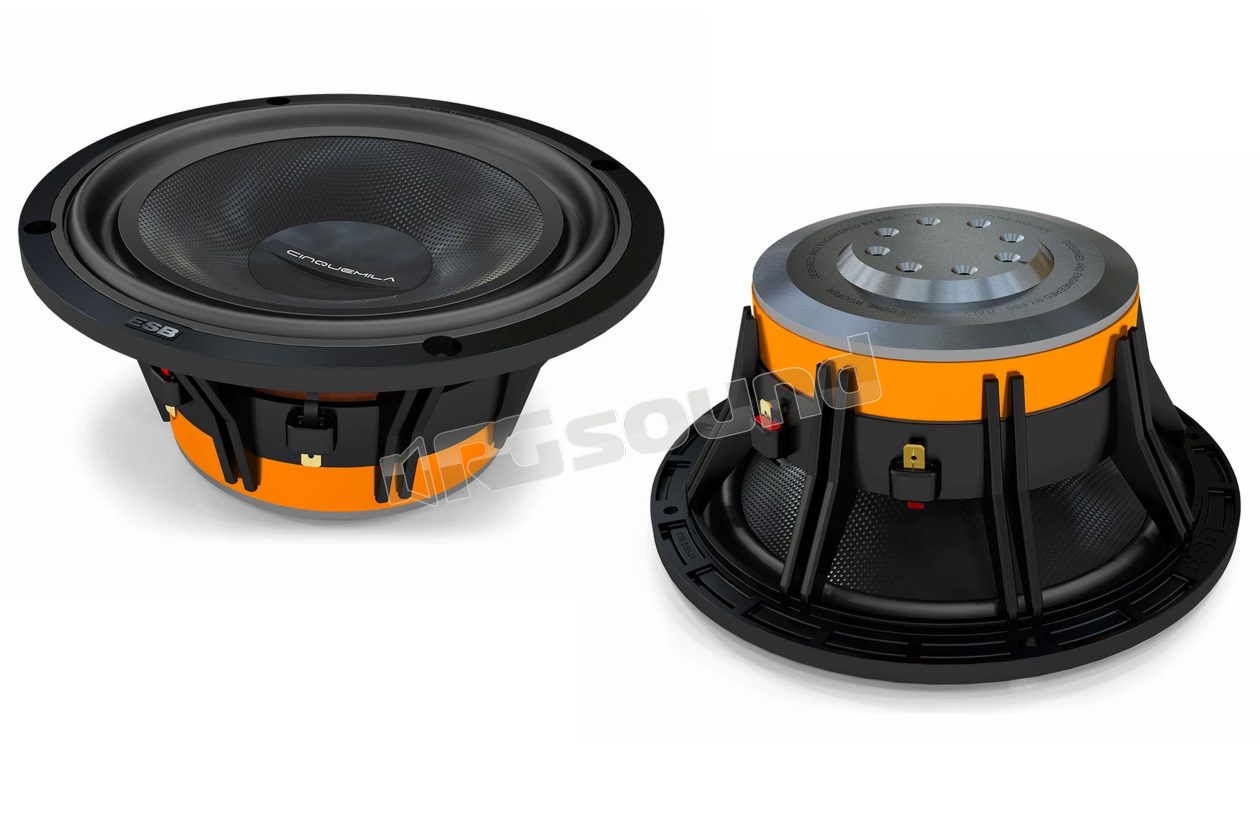

5.165 Pair of 6.5" / 165 mm mid-woofers, 5000 Series

ESB car audio
Your price:
€ 427,00
Price per pair (VAT included)
Available on backorder
Calculating shipping costs to
Type
Woofer and midwoofer
Speaker Size
165 mm
MAX Power
320 Watt
RMS Power
160 Watt
Frequency Response
50 - 3.500 Hertz
Sensitivity
92 dB
Impedance
4 Ohm
Installation Depth
68 mm
Woofer Material
Fibra di carbonio

ESB car audio 5.165 Pair of 6.5" / 165 mm midwoofers

The magnetic motor has been optimized with FEA simulation to guarantee perfectly symmetrical magnetic flux in both directions of cone movement. Great attention has been paid to the axial and radial ventilation of the voice coil to ensure high power handling, reduced distortion and greater durability. The stepped recess allows for very long cone excursion.

The metal parts in solid refined material are machined under numerical control to achieve maximum magnetic flux linearity and minimum magnetic loss. This reduces distortion at high power levels. A pure copper ring is inserted in the magnetic field to reduce harmonic distortion. A double-layer 25 mm CCAW (Copper Clad Aluminum Wire) voice coil is wound on an aluminum structure to ensure exceptional power handling and distortion-free reproduction to handle the most demanding musical passages.


The exponential cone in carbon fiber reinforced polymer matrix composite ensures extraordinary rigidity combined with very low weight. The eight-spoke twin frame in carbon fiber reinforced ABS, anti-resonant and self-extinguishing, ensures a drastic reduction of cone rear reflections. The frame design ensures high structural and torsional rigidity. This is necessary for perfect alignment of parts and very tight construction tolerances. The exclusive double-wave TSW (Twin Symmetrical Wave) rubber suspension designed by ESB allows excursion with perfect progression and linearity. This feature ensures natural reproduction of bass frequencies, both at low and high volumes.

The exclusive double-wave TSW (Twin Symmetrical Wave) rubber suspension designed by ESB allows excursion with perfect progression and linearity. This feature ensures natural reproduction of bass frequencies at both low and high volumes. The large Conex® spider allows smooth and gentle travel at low excursions and gently restrains the cone at high excursions, thus increasing the useful frequency range.

5.165 Features

  • Carbon fiber cone
  • TWS rubber suspension
  • Copper and aluminum voice coil
  • 25 mm voice coil
  • Oversized Y35 magnet
  • ABS basket
  • Progressive Conex® dust cap
  • CNC motor mechanical parts
  • Computer optimized design

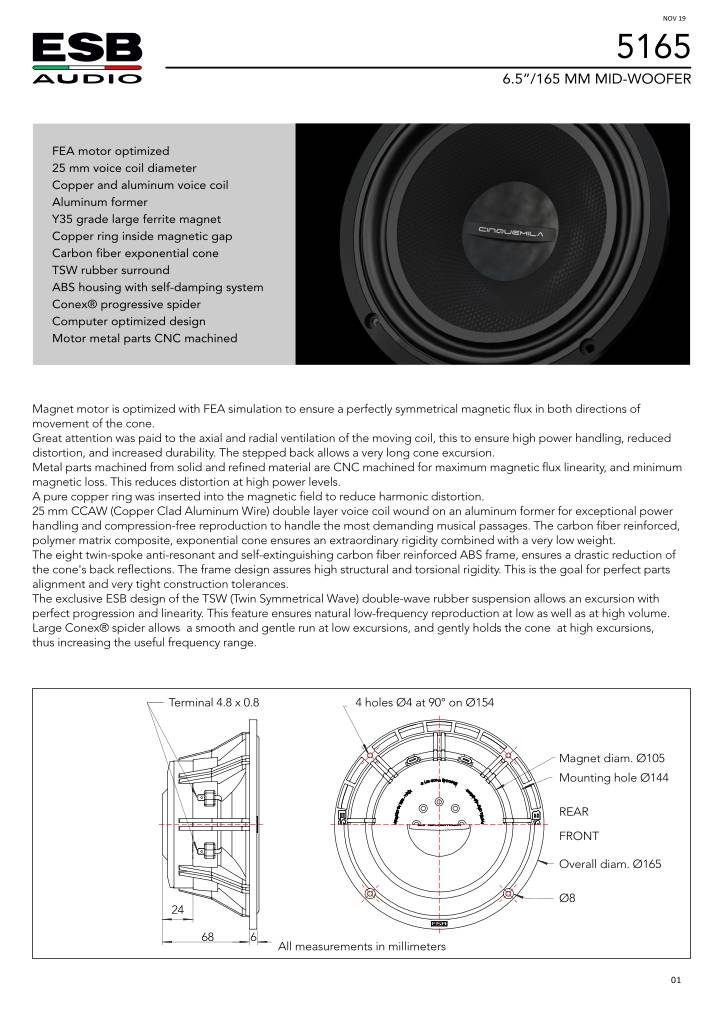

Scheda tecnica

n-20210126122027-woofer5165.pdf

ESB car audio 5.165 Technical Specifications

  • Nominal Impedance: 4 Ohm
  • Nominal Power: 160 Watt
  • Transient Power: 320 Watt
  • Frequency Response: 50 Hz ~ 3.5 kHz
  • Sensitivity: 92 dB 1W/1m
€ 427,00 Price incl. VAT
