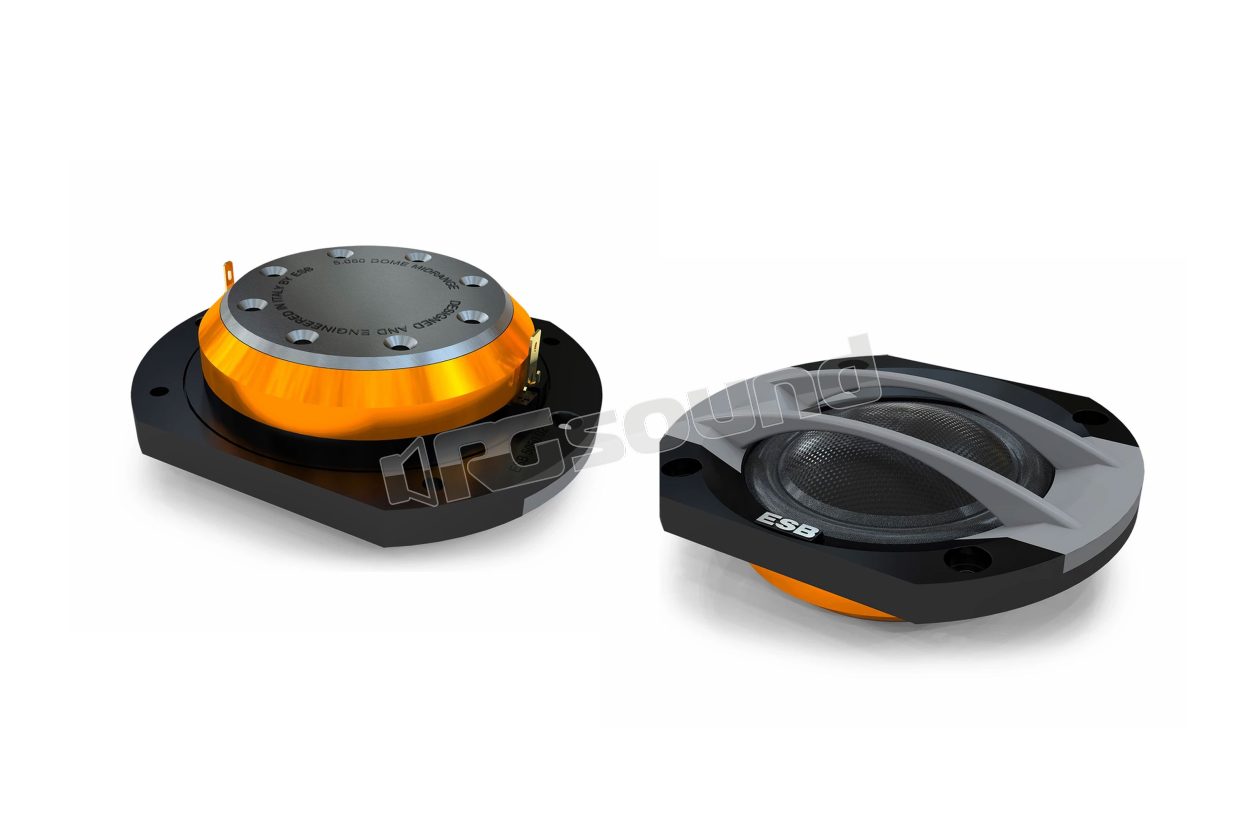

5.050 50mm Dome Midrange 5000 Series

ESB car audio
Your price:
€ 379,00
Price per pair (VAT included)
Available on backorder
Calculating shipping costs to
Type
Midrange
Speaker Size
50 mm
MAX Power
240 Watt
RMS Power
120 Watt
Frequency Response
500 - 6.000 Hertz
Sensitivity
91 dB
Impedance
4 Ohm
Installation Depth
47 mm
Midrange Cone Material
Fibra di carbonio

ESB car audio 5.050 Pair of 2" / 50 mm dome midrange drivers Serie 5000

The dome made of composite material reinforced with carbon fiber and polymeric matrix guarantees extraordinary rigidity combined with very low weight. The large aluminum voice coil (50 mm) allows for much higher power to be used for this type of component. This midrange uses a very large ventilated neodymium magnet, optimized with computer simulations (FEA) to achieve greater efficiency and better linearity throughout the entire voice coil stroke. The neodymium magnet is high quality to reduce magnetic loss at high temperatures and concentrate more energy in a reduced space.


All engine parts are made with CNC process to achieve tighter tolerances and better performance. Great attention was paid to axial and radial ventilation of the voice coil to guarantee high power handling, reduced distortion and high durability. Axial ventilation holes reduce air compression on the back of the dome for great distortion reduction and extended response to lower frequencies. A special acoustic resistance helps control Qts in the midrange. Residual resonances are neutralized by dB Cloth® damping material under the dome. This extends frequency response to the lower limits and reduces harmonic distortion. The faceplate can be removed and replaced with an adapter for rear installation.

5.050 Features

  • 50 mm aluminum voice coil
  • High quality neodymium magnet
  • Carbon fiber dome
  • Ferrofluid cooling and damping
  • Acoustic resistance control Qts
  • Computer optimized design
  • CNC machined engine metal parts
  • dB Cloth® dome damping material

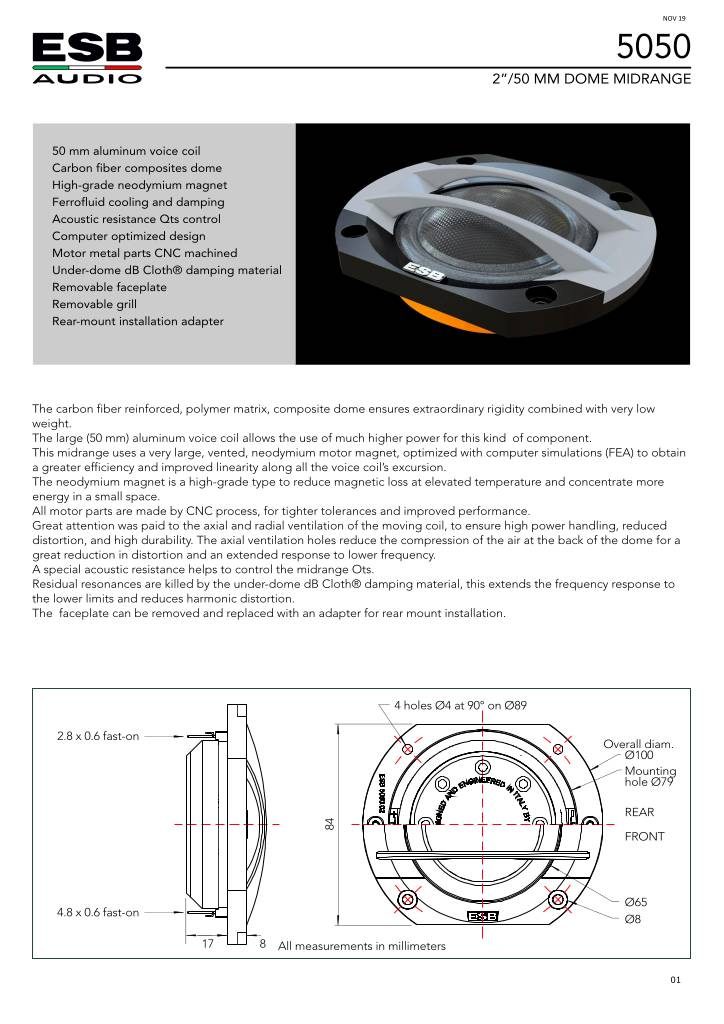

Scheda tecnica

n-20210126121214-midrange5050.pdf

ESB car audio 5.050 Technical Specifications

  • Nominal Impedance: 4 Ohm
  • Nominal Power: 120 Watt
  • Transient Power: 240 Watt
  • Frequency Response: 500 Hz ~ 6 KHz
  • Sensitivity: 91 dB 1W/1m
€ 379,00 Price incl. VAT
