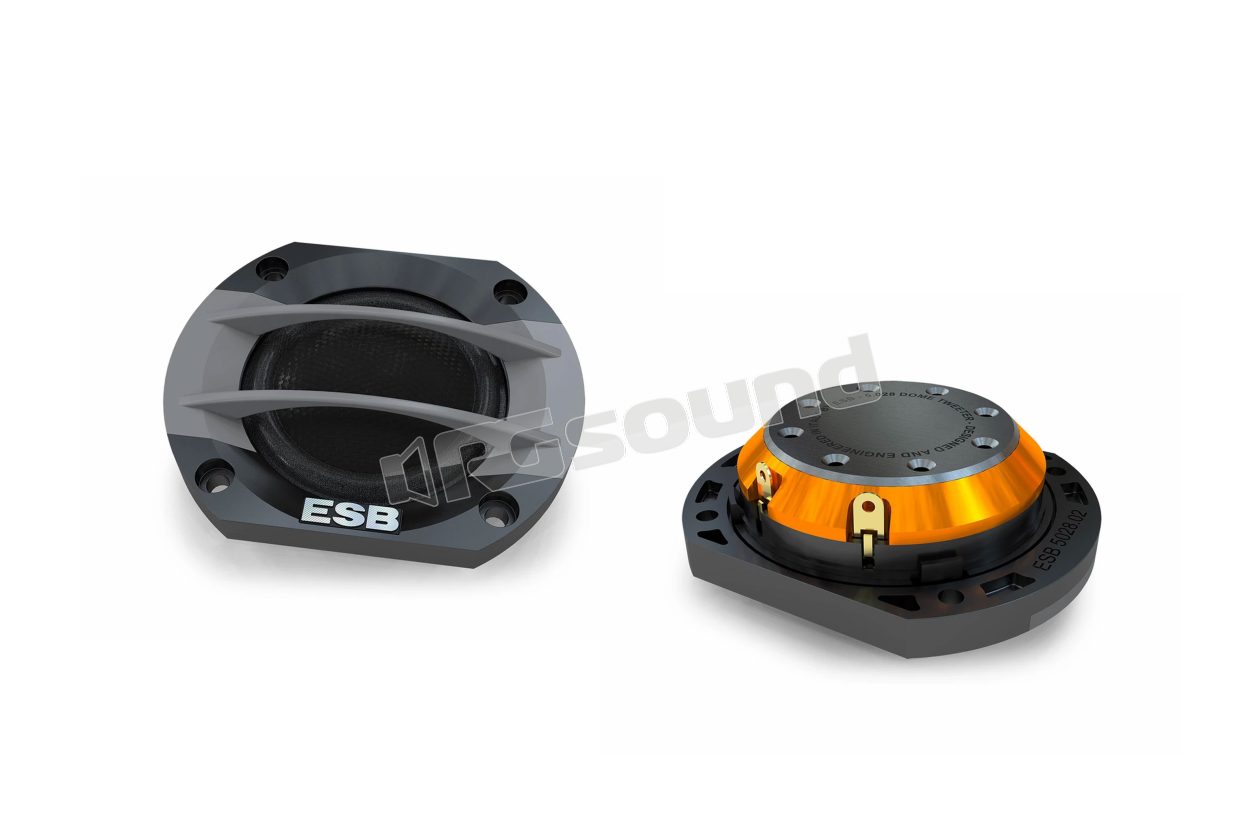

5.028 28 mm Dome Tweeter 5000 Series

ESB car audio
Your price:
€ 218,00
Price per pair (VAT included)
Available on backorder
Calculating shipping costs to
Type
Tweeter
Dome Size
28 mm
MAX Power
220 Watt
RMS Power
110 Watt
Frequency Response
900 - 25.000 Hertz
Sensitivity
91 dB
Impedance
4 Ohm
Outer Diameter
32,8 mm

ESB audio 5.028 Pair of 1.1" / 28 mm dome tweeters Series 5000

The dome made of composite material reinforced with carbon fiber and polymer matrix guarantees extraordinary rigidity combined with very low weight. The 28 mm aluminum voice coil allows very high power to be used for this type of component. The tweeter uses a very large and vented neodymium magnet, optimized with computer simulations (FEA) to achieve greater efficiency and better linearity throughout the entire voice coil excursion. The neodymium magnet is of high quality to reduce magnetic loss at high temperatures and concentrate more energy in a reduced space.

All engine parts are made using CNC process. This ensures tighter tolerances and better performance. Great attention has been paid to axial and radial ventilation of the voice coil to ensure high power handling with reduced distortion and greater durability. Axial ventilation holes reduce air compression on the back of the dome, with significantly reduced distortion and extended response at the lowest frequencies. A special acoustic resistance helps control the Qts of the tweeter. Residual resonances are neutralized by the dB Cloth® damping material under the dome.

This extends the frequency response to the lower limits and reduces harmonic distortion. The front panel can be removed with clips and replaced with an adapter for rear mounting. For flush mounting of the tweeter, use the 4 chrome front screws supplied, or for surface mounting, use the supplied mounting cup.

5.028 Features

  • 28 mm aluminum voice coil
  • Nominal diameter 32.8 mm
  • High quality neodymium magnet
  • Carbon fiber dome
  • Ferrofluid cooling and damping
  • Acoustic resistance control Qts
  • Computer optimized design
  • CNC machined motor metal parts
  • dB Cloth® dome damping material

Manuale utente

n-20240829142959-manual-esb5000-quick-installation.pdf

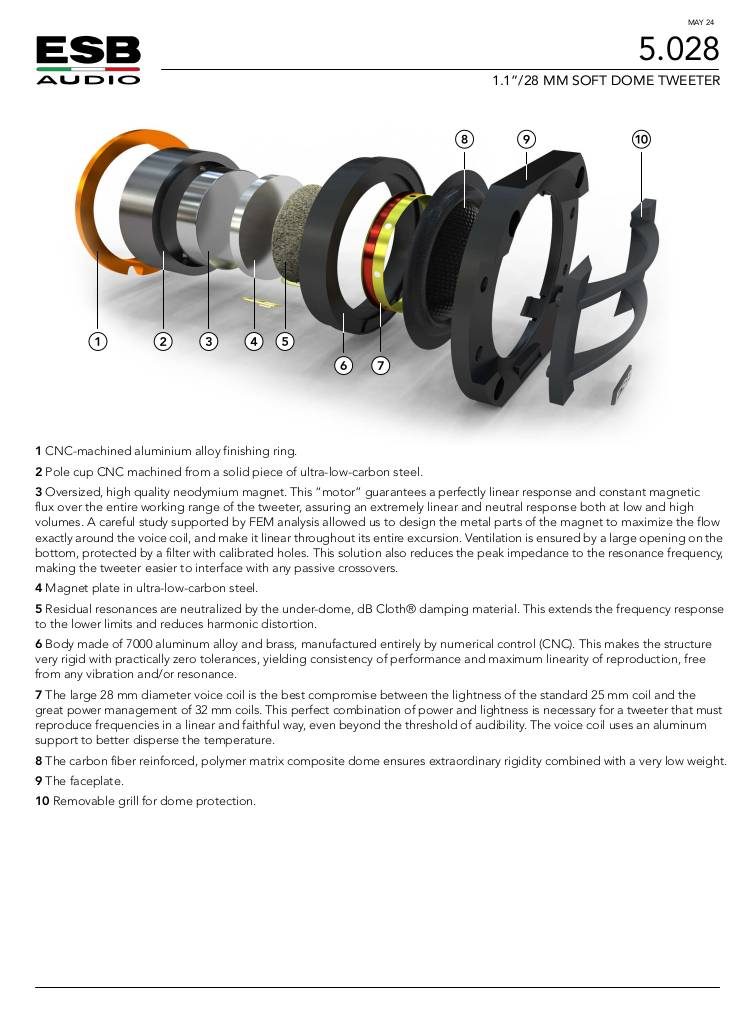

Scheda tecnica

n-20240829142959-data-sheet-5-028-05-24.pdf

Pair of 5.028 tweeters

ESB car audio 5.028 Technical Specifications

  • Nominal Impedance: 4 Ohm
  • Nominal Power: 110 Watt
  • Transient Power: 220 Watt
  • Frequency Response: 900 Hz ~ 25 KHz
  • Sensitivity: 91 dB 1W/1m
€ 218,00 Price incl. VAT
