4.75 3.5"/75 mm Midrange

ESB car audio
Your price:
€ 379,00
Price per pair (VAT included)
In stock, ready to ship
Calculating shipping costs to
Type
Midrange
Speaker Size
Other sizes
MAX Power
200 Watt
RMS Power
100 Watt
Frequency Response
140 Hz - 12 KHz Hertz
Sensitivity
90.6 dB
Impedance
4 Ohm

ESB car audio 4.75 Midrange 3.5"/75 mm

The ESB Car Audio 4.75 midranges are designed to deliver high-level audio performance, integrating premium materials and advanced technologies to guarantee clear and detailed sound.


The high-quality N-52 neodymium magnet is known for its high resistance to demagnetization. This type of magnet is 25% stronger than common N-48 magnets, guaranteeing extraordinary efficiency and superior performance. Thanks to this powerful magnet, the midranges can handle high power levels without compromising sound quality.


The basket frame, made of die-cast aluminum alloy, offers great rigidity and minimal resistance to airflow movement. This design allows you to maintain sound quality unaltered, even in intensive use conditions. The basket casting follows rigorous procedures that ensure compliance with regulatory specifications, guaranteeing consistent quality.


The large mobile coil in aluminum coated with copper is another key feature of these ESB midranges. This coil is very lightweight and has excellent heat dissipation capacity, allowing you to handle very high power levels. The combination of lightness and efficient heat dissipation allows you to reproduce music with extreme realism and high dynamics.

The cone is made of unbleached long-fiber cellulose pulp, treated externally to combine lightness, rigidity and internal damping. This material is ideal for guaranteeing clean and precise sound, reducing distortions and improving overall sound performance. The suspension surround in soft nitrile rubber is resistant to UV rays and unaffected by temperature changes, preserving the superior acoustic qualities of the speaker in the long term. The design of the suspension edges guarantees free and perfect movement back and forth, further contributing to sound quality.

To protect the speaker, the ESB Car Audio 4.75 midranges are equipped with a deluxe stainless steel protective grille. This grille not only offers robust protection against impacts and damage, but also maintains the refined and professional aesthetics of the speaker.

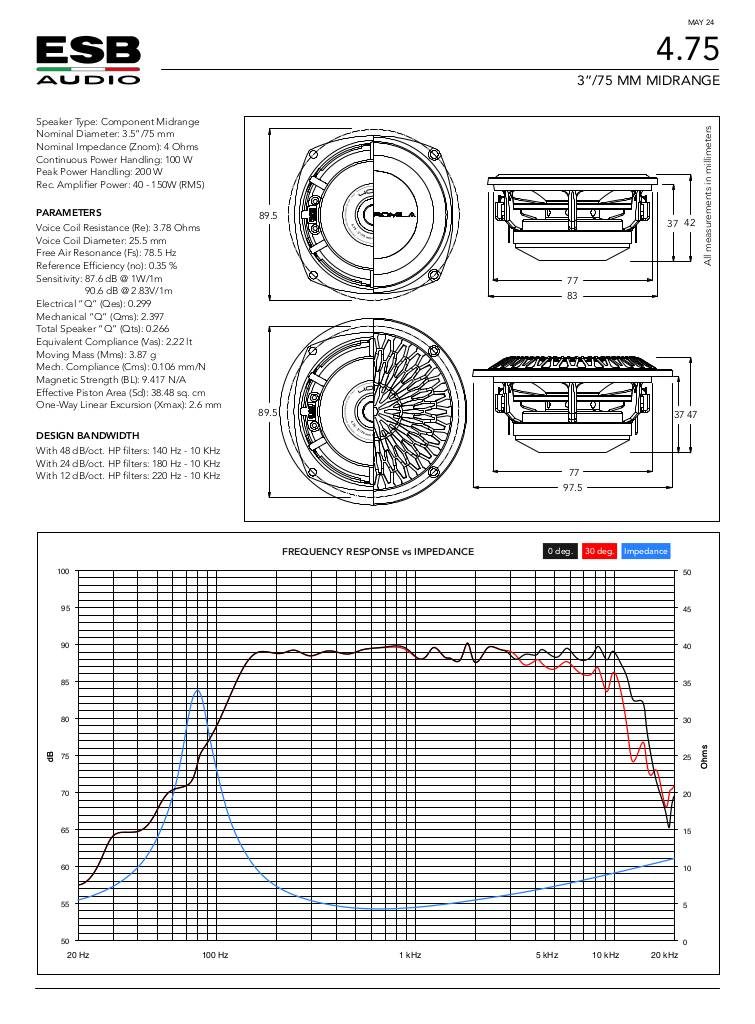

Scheda Tecnica

n-20240802113535-scheda-tecnica-4-75.pdf

Manuale Installazione

n-20240802113535-manuale-installazione-4-75.pdf

ESB car audio 4.75 Technical Specifications

  • Speaker type Component midrange
  • Nominal diameter 3.5"/75 mm
  • Nominal impedance (Znom): 4 Ohm
  • Continuous power handling 100 W
  • Peak power: 200 W
  • Rec. Amplifier power 40 - 150 W (RMS)
  • Frequency response 140 Hz - 12 KHz
  • Mobile coil resistance (Re): 3.78 Ohm
  • Mobile coil diameter: 25.5 mm
  • Free air resonance (Fs): 78.5 Hz
  • Reference efficiency (no): 0.35 %
  • Sensitivity
    • 87.6 dB at 1W/1m
    • 90.6 dB at 2.83V/1m
  • Electrical "Q" (Qes): 0.299
  • Mechanical "Q" (Qms): 2.397
  • Total speaker "Q" (Qts): 0.266
  • Equivalent compliance (Vas): 2.22 lt
  • Moving mass (Mms): 3.87 g
  • Mech. Compliance (Cms): 0.106 mm/N
  • Magnetic force (BL): 9.417 N/A
  • Effective piston area (Sd): 38.48 cmq
  • Unidirectional linear excursion (Xmax): 2.6 mm
  • Bandwidth
    • With 48 dB/oct. HP filters: 140 Hz - 10 KHz
    • With 24 dB/oct. HP filters: 180 Hz - 10 KHz
    • With 12 dB/oct. HP filters: 220 Hz - 10 KHz
