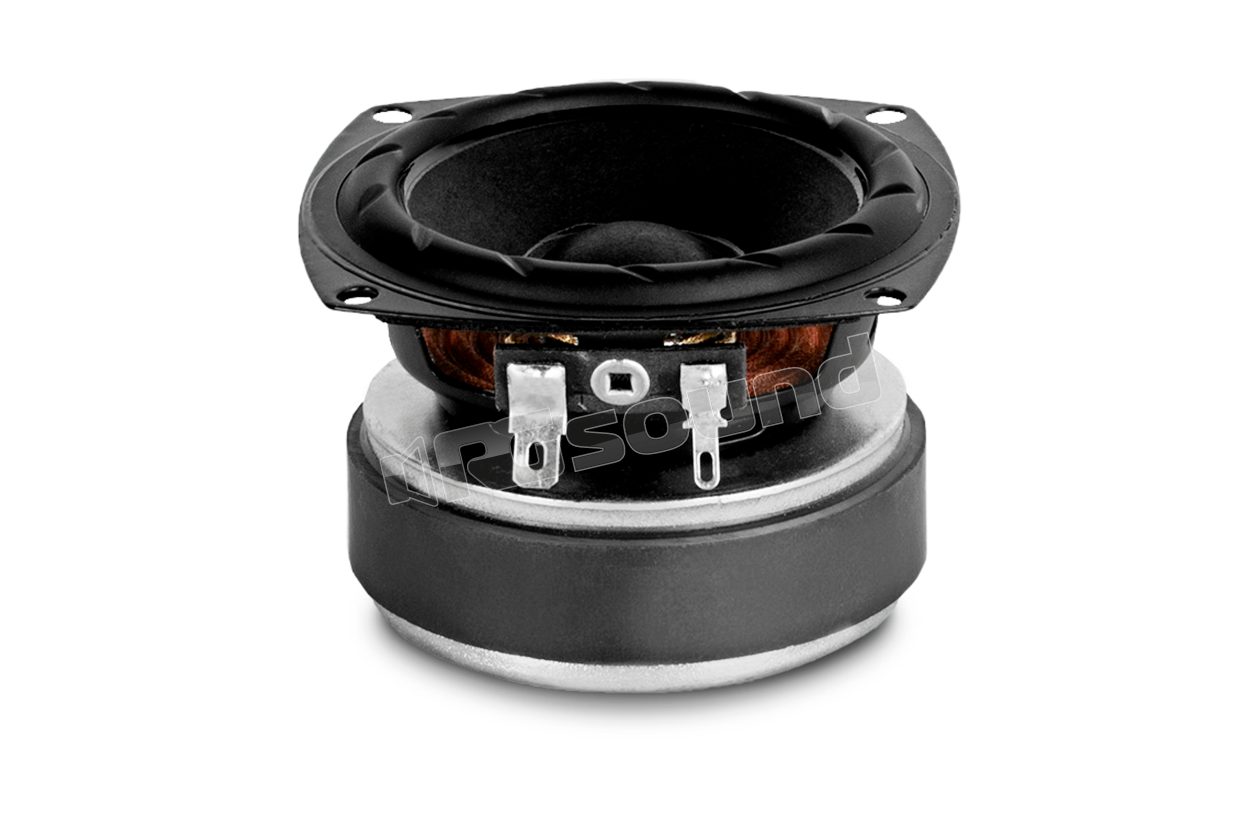

3FR30V2 77mm full range speaker

Beyma
Your price:
€ 24,00
Price per single item (VAT included)
In stock, ready to ship
Calculating shipping costs to
Type
Midrange
Speaker Size
80 mm
MAX Power
60 Watt
RMS Power
30 Watt
Frequency Response
135 - 20000 Hertz
Sensitivity
90,5 dB
Impedance
8 Ohm
Weight
0,7 Kg
Voice Coil Diameter
20 mm

Beyma 3FR30V2 full range 8 Ohm speaker

3FR30V2 Features

  • Compact 3" full range ferrite speaker
  • 60 W program power
  • Optimized FEA magnetic circuit
  • Short-circuit cup for extended response and very low distortion
  • distortion
  • Optimized surround design for minimum resonance behaviorLinearity and optimized dispersion
  • Weather-resistant paper cone and extreme resistance elastomer suspension
  • extreme elastomer resistance
  • Stamped steel frame
  • Ideal for beam-steering applications, portable arrays,
  • columns and compact applications

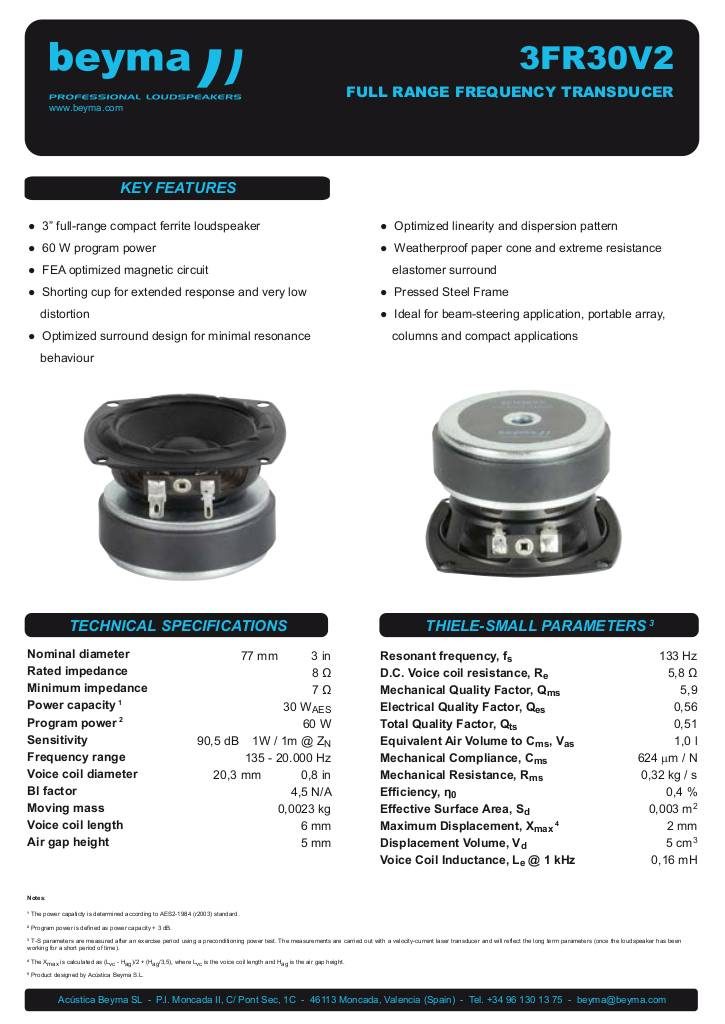

Scheda tecnica

n-20250314142857-scheda-tecnica-3fr30v2.pdf

Beyma 3FR30V2 Technical Specifications

  • Nominal diameter 77 mm 3 in
  • Nominal impedance 8 Ohm
  • Minimum impedance 7 Ohm
  • Power handling 30 W AES
  • Program power 60 W
  • Sensitivity 90.5 dB 1W / 1m @ ZN
  • Frequency range 135-20000 Hz
  • Voice coil diameter 20.3 mm 0.8 inches
  • BL factor 4.5 N/A
  • Moving mass 0.0023 kg
  • Winding length 6 mm
  • Gap height 5 mm
