3FR30Nd

Beyma

Discontinued

Your price:
€ 38,70
Price per single item (VAT included)
Type
Full Range speaker
Speaker Size
80 mm
MAX Power
60 Watt
RMS Power
30 Watt
Frequency Response
180 - 20.000 Hertz
Sensitivity
91 dB
Impedance
8 Ohm
Weight
0,4 Kg
Installation Depth
41 mm
Voice Coil Diameter
20 mm

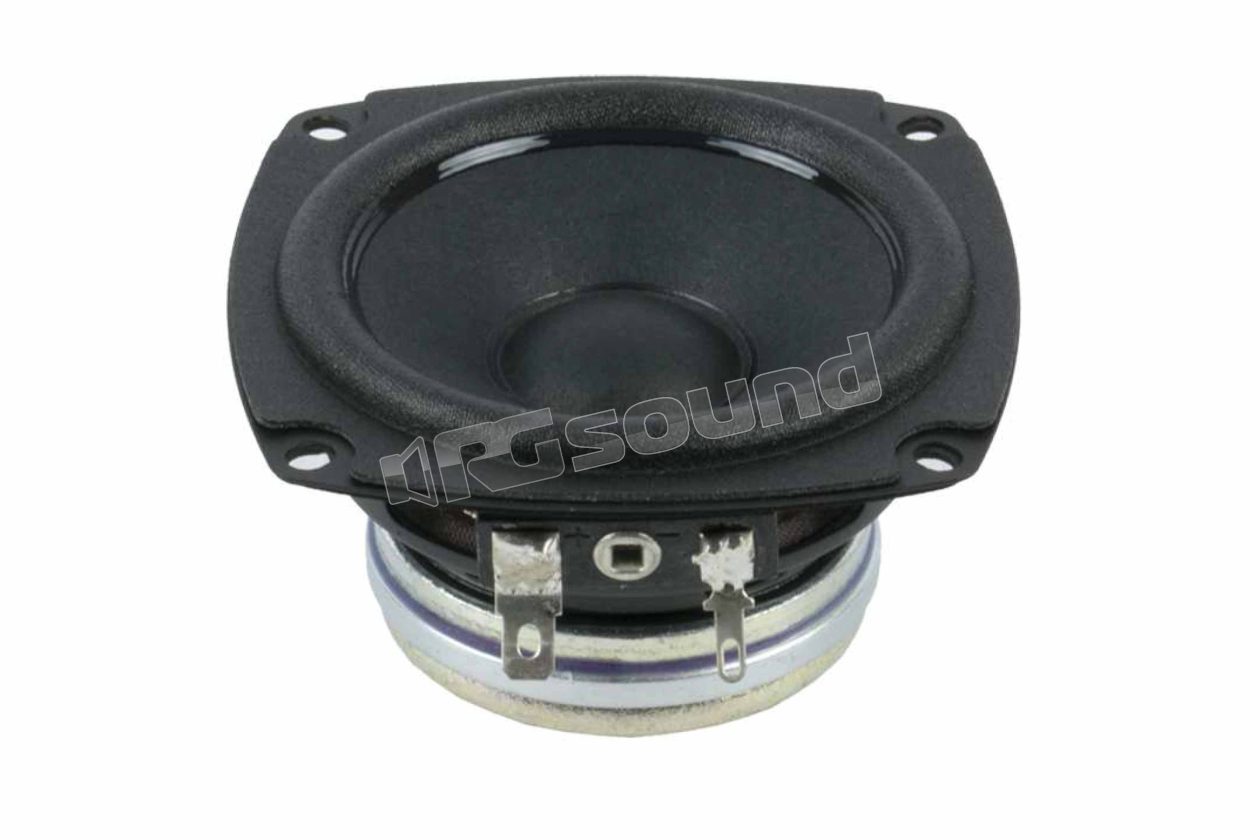

Beyma 3FR30Nd full-range speaker 77mm (3") with neodymium magnet, 8 Ohm impedance, 60 Watt power

Extended frequency response and low distortion, treated paper cone, steel baskets, ideal for portable applications, column systems and compact spaces.

Technical characteristicsBeyma 3FR30Nd

Nominal diameter 77 mm

Nominal impedance 8 Ohm

Minimum impedance 6.4 ohm

Power capacity 30 W AES

Program power 60 W

Sensitivity 91 dB @ 1 W/1m @ ZN

Frequency range 180-20.000 Hz

Voice coil diameter 20.3 mm 0.8 in

BL factor 4.8 N/A

Moving mass 0.002 Kg

Winding length 10.5 mm

Air gap height 3 mm

Fs 180 Hz

Re 5.4 ohm

Qms 9.5

Qes 0.6

Qts 0.56

Vas 0.55 l

Cms 357 µm / N

Rms 0.26 kg/s

Efficiency % 0.52

Sd 0.003 m²

Xmax 4.5 mm

Vd 13.5 cm³

Le @1 kHz 0.3 mH

Net weight 0.25 kg 0.55 lb

Total weight 0.40 kg 0.95 lb

Magnet Neodymium

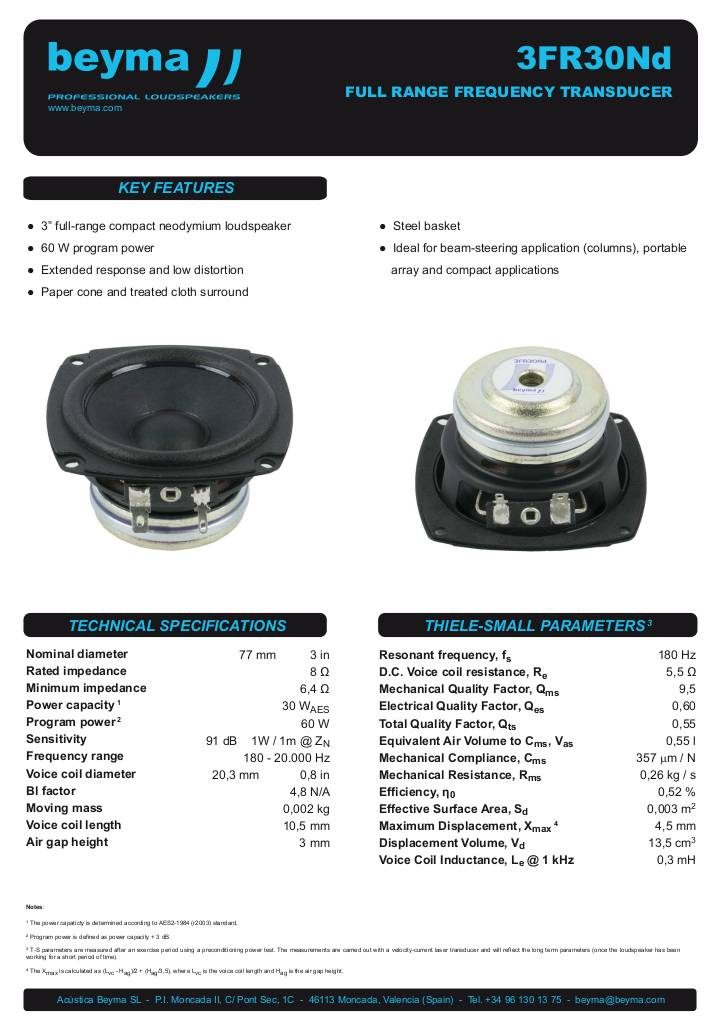

Scheda tecnica

n-20180426150141-3fr30nd.pdf
Discontinued
