3FR30

Beyma

Discontinued

Your price:
€ 20,80
Price per single item (VAT included)
Type
Midrange
Speaker Size
80 mm
MAX Power
60 Watt
RMS Power
30 Watt
Frequency Response
160 - 20.000 Hertz
Sensitivity
91 dB
Impedance
8 Ohm
Weight
0,7 Kg
Installation Depth
46 mm
Voice Coil Diameter
20 mm

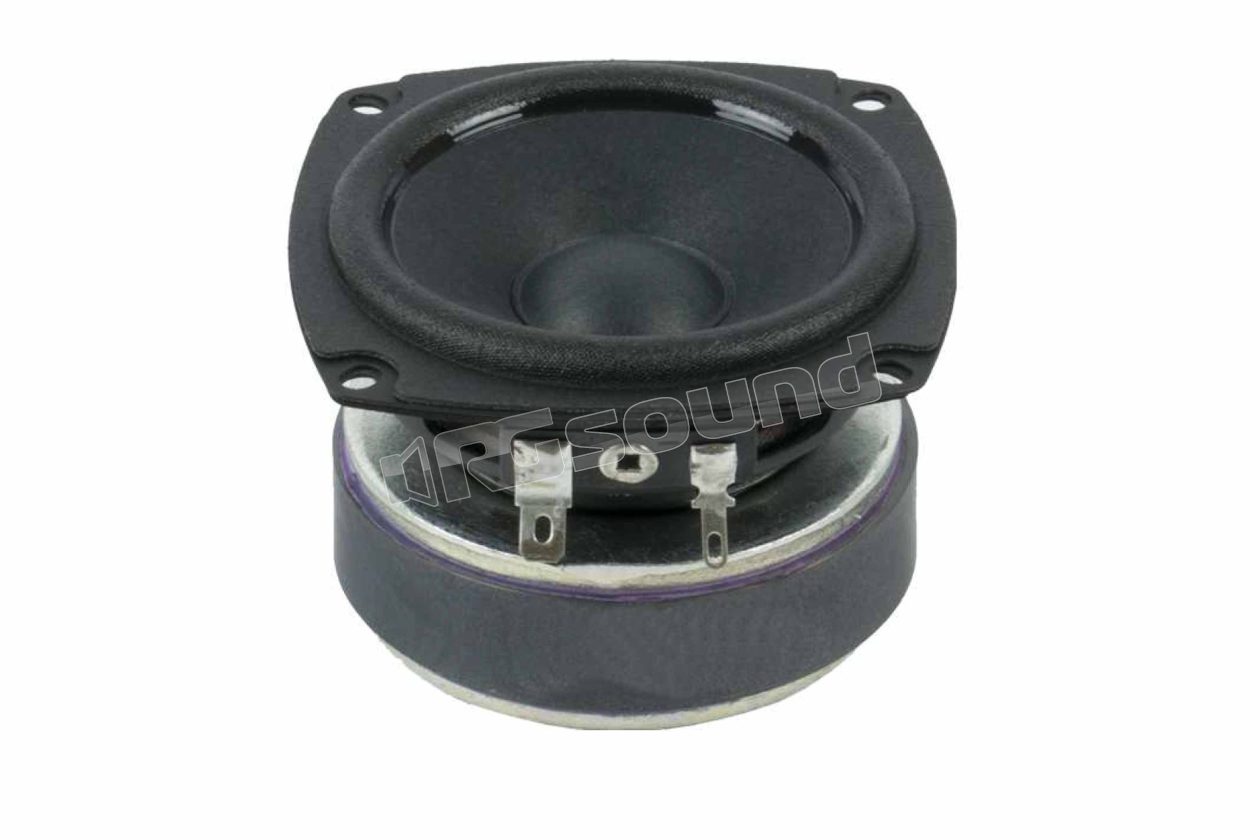

Beyma 3FR30 compact full-range speaker 80 mm (3"), impedance 8 Ohm, power 60 W

Extended frequency response and low distortion, paper cone and treated fabric surrounds, steel basket. Ideal for application in columns, portable and compact applications.

Beyma 3FR30 technical specifications

Nominal diameter 3 mm

Nominal impedance 8 Ohm

Minimum impedance 6.5 ohm

Power capacity 30 W AES

Program power 60 W

Sensitivity 91 dB @ 1 W/1m @ ZN

Frequency range 160-20000 Hz

Voice coil diameter 20.3 mm 0.8 in

BL factor 4.9 N/A

Moving mass 0.0022 kg

Winding length 10.5 mm

Air gap height 3 mm

Fs 160 Hz

Re 5.6 ohm

Qms 8

Qes 0.52

Qts 0.49

Vas 0.67 l

Cms 430 µm / N

Rms 0.28 kg/s

Efficiency %0.5

Sd 0.003 m²

Xmax 4.5 mm

Vd 13.5 cm³

Le @1 kHz 0.25 mH

Net weight 0.57 kg 1.25 lb

Total weight 0.7 kg 1.54 lb

Magnet Ferrite

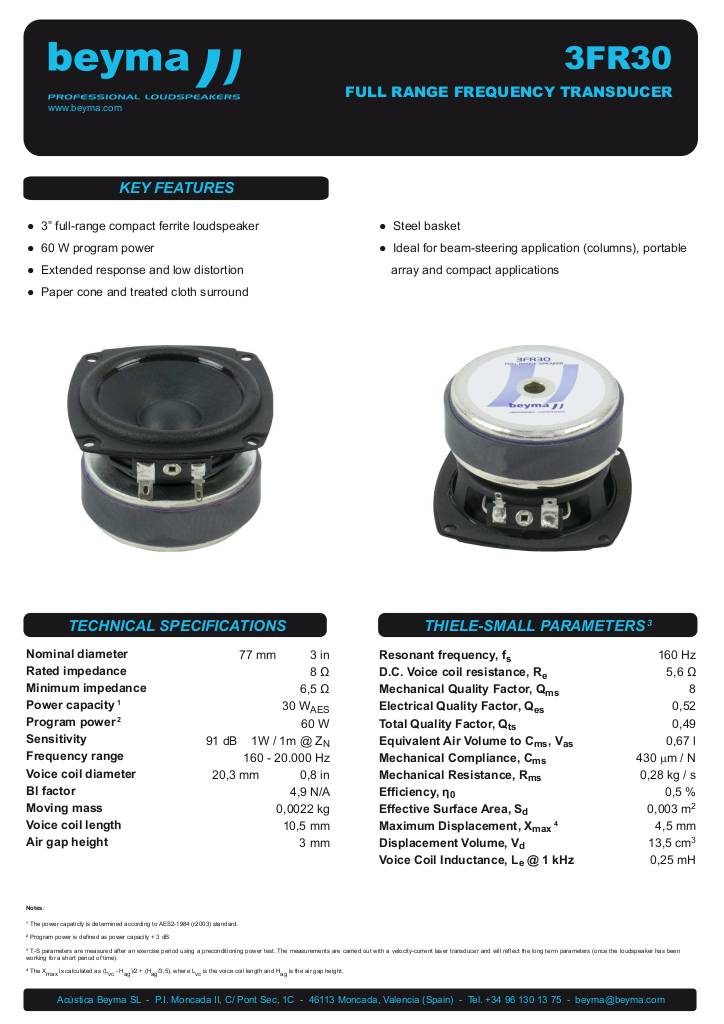

Scheda tecnica

n-20180426152727-3fr30.pdf
Discontinued
