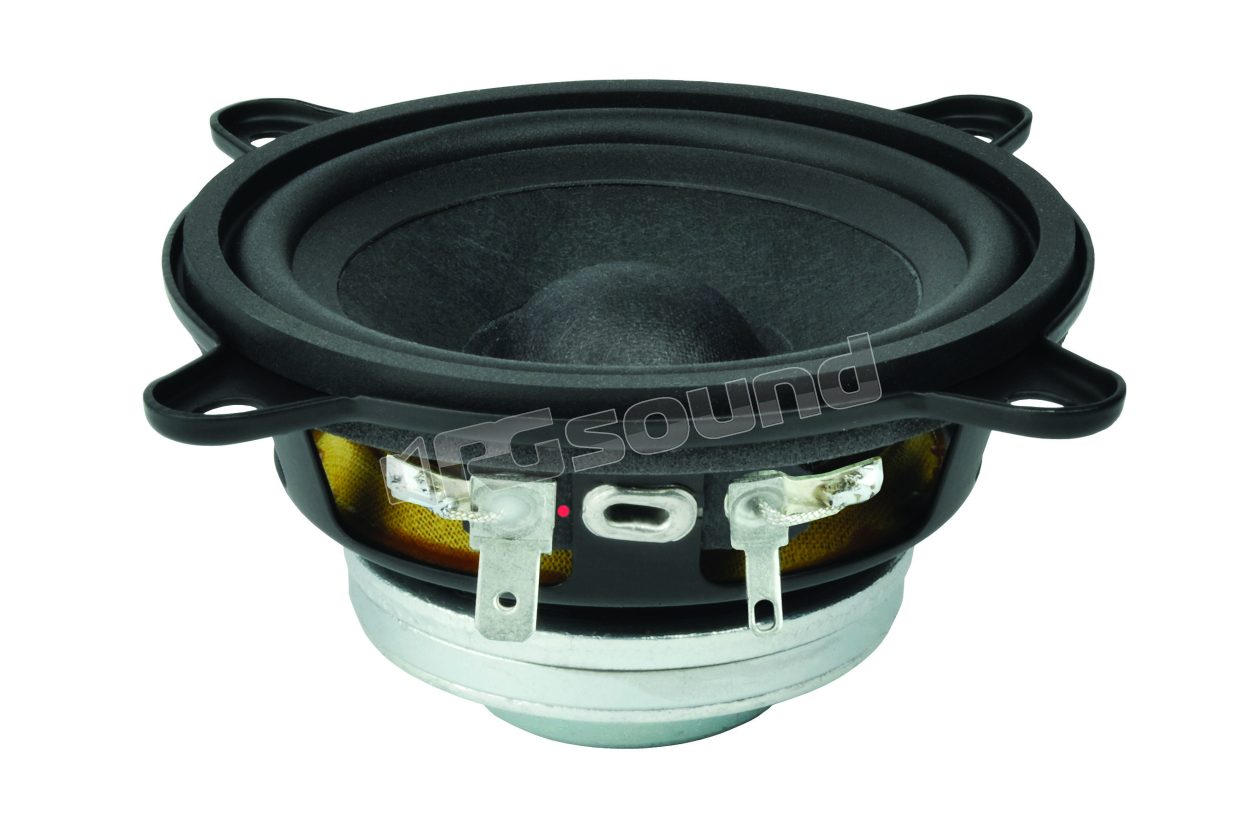

3FE22-8F 3" Full Range Speaker with 8ohm Neodymium Magnet

Faital PRO
Your price:
€ 31,00
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
Full Range speaker
Speaker Size
70 mm
MAX Power
40 Watt
RMS Power
20 Watt
Frequency Response
100 - 20000 Hertz
Sensitivity
91 dB
Impedance
8 Ohm

Faital 3FE22-8F 3" Full Range Speaker with 8 Ohm Neodymium Magnet

The FaitalPRO 3FE22-8F is a 3 inch full range speaker designed for compact audio systems where reduced dimensions, lightweight construction and good sound quality are required. Thanks to the neodymium magnet, the driver maintains a compact and lightweight structure, making it suitable for both professional applications and DIY projects and custom installations.

The ability to cover a wide frequency range with a single component makes it possible to simplify audio system design, while maintaining good intelligibility and balanced response especially in the midrange frequencies. For this reason it is often used in portable speakers, small monitors, compact line arrays and car audio systems.

The construction is designed to guarantee reliability and continuous use, with a good balance between efficiency, control and compactness. The contained dimensions make it particularly interesting for projects where space and weight are important factors.

3FE22-8F Features

  • Compact 3 inch full range speaker
  • Neodymium magnet to reduce weight and size
  • Extended frequency reproduction with single driver
  • Good midrange frequency and voice response
  • Suitable for compact audio systems, DIY and custom installations
  • Usable in portable speakers, line arrays and car audio
  • Structure designed for continuous use
  • Good balance between efficiency, compactness and sound quality

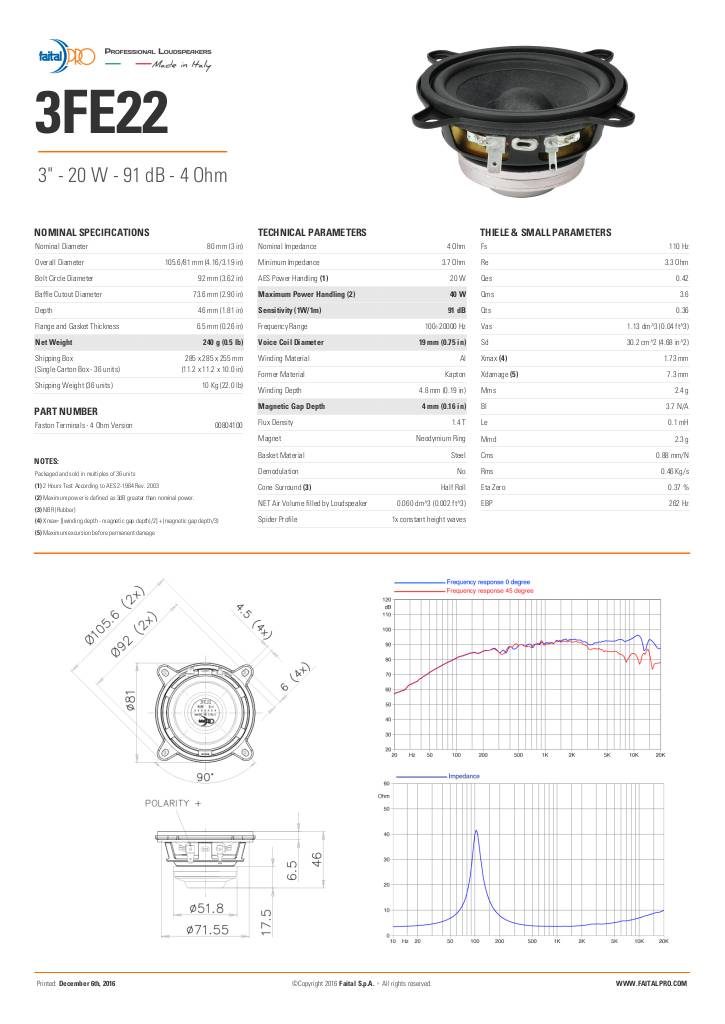

Scheda tecnica

n-20260525173348-3fe22.pdf

Faital 3FE22-8F Technical Specifications

  • Nominal Diameter 80 mm (3 in)
  • Maximum External Diameter 105.6/81 mm (4.16/3.19 in)
  • Mounting Hole Pitch 92 mm (3.62 in)
  • Recess Hole Diameter 73.6 mm (2.90 in)
  • Depth 46 mm (1.81 in)
  • Flange and Gasket Thickness 6.5 mm (0.26 in)
  • Net Weight 240 g (0.53 lb)
  • Nominal Impedance 8 Ohm
  • Minimum Impedance 6.2 Ohm
  • Nominal Power (AES) 20 W
  • Maximum Power 40 W
  • Efficiency (1W/1m) 91 dB
  • Frequency Range 100÷20000 Hz
  • Coil Diameter 19 mm (0.75 in)
  • Winding Material Al
  • Support Material Kapton
  • Winding Height 5 mm (0.20 in)
  • Air Gap Height 4 mm (0.16 in)
  • Flux Density 1.4 T
  • Magnet Type Neodymium Ring
  • Basket Material Steel
  • Cone Edge Profile Half wave
  • Volume Occupied by Speaker 0.060 dm^3 (0.002 ft^3)
  • Dust Cap Profile 1x wave at constant height
