3.90 90 mm Midrange 3000 Series

ESB car audio
Your price:
€ 151,00
Price per pair (VAT included)
Available on backorder
Calculating shipping costs to
Type
Midrange
Speaker Size
Other sizes
MAX Power
120 Watt
RMS Power
60 Watt
Frequency Response
150 - 7000 Hertz
Sensitivity
88,5 dB
Impedance
4 Ohm
Installation Depth
38 mm
Midrange Cone Material
Cellulosa trattata

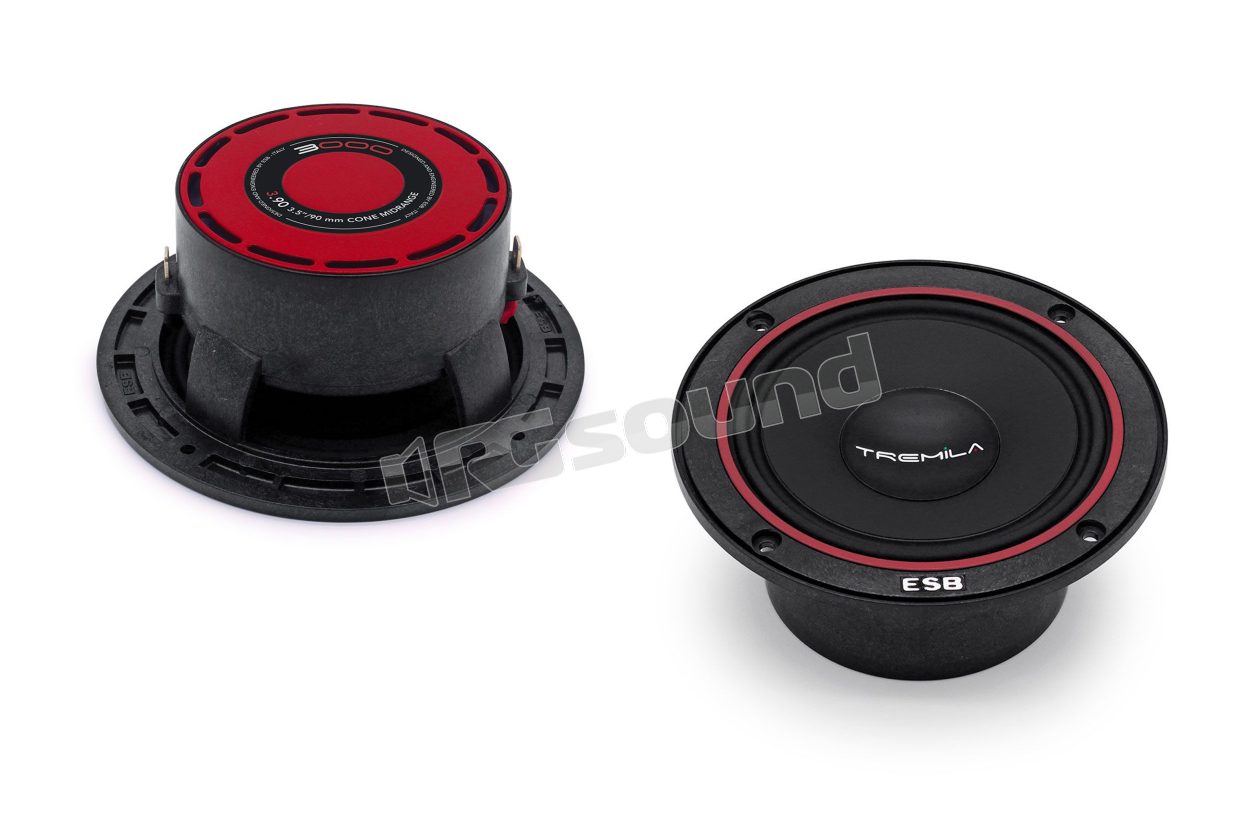

ESB car audio 3.90 Serie 3000 Pair of 3.5"/90 mm midrange

Basket in ABS reinforced with fiberglass. The basket has been designed to achieve maximum in terms of torsional rigidity (resistance to bending), but at the same time offers minimum resistance to air passage. Cone in pressed paper with water-repellent treatment. It is widely recognized that paper cones are the ideal combination of lightness, rigidity and the cone's ability to dampen any unwanted vibration.

Surround in symmetrical dual-wave rubber. Perbunan® rubber surround is much more stable to temperature variations compared to standard rubber. The 20 mm voice coil uses an aluminum support with a dual-layer winding technology of copper wires with an aluminum core. High-quality ferrite magnet, a type of magnet with performance significantly superior to "standard" magnets.

3.90 Features

  • Treated paper cone
  • Perbunan rubber suspension
  • Y-35 ferrite magnet
  • Reinforced ABS basket
  • Balanced cotton spider
  • Dual-layer voice coil

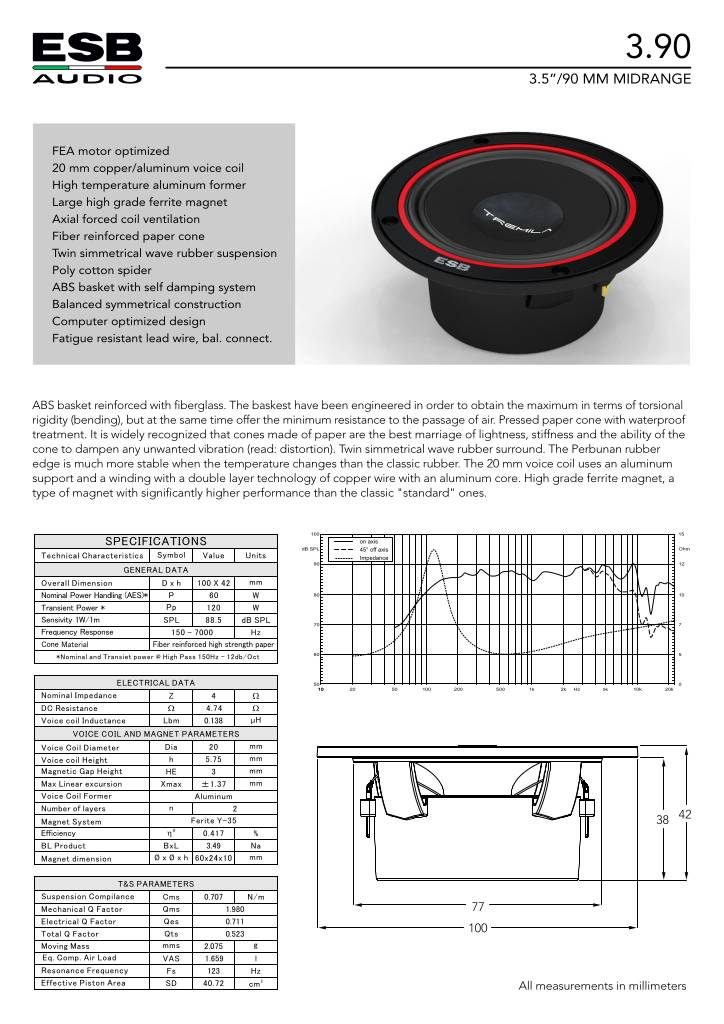

Scheda tecnica

n-20220117153848-3-90.pdf

ESB car audio 3.90 Technical Specifications

  • Speaker Type: Component midrange
  • Nominal Diameter: 3.5"/90 mm
  • Nominal Impedance (Znom): 4 Ohm
  • Continuous Power Rating: 60 W
  • Peak Power Rating: 120 W
  • Rec. Amplifier Power: 20 - 100 W (RMS)
  • Voice Coil Resistance (Re): 4.74 Ohm
  • Voice Coil Diameter: 20 mm
  • Free Air Resonance (Fs): 123 Hz
  • Reference Efficiency (no): 0.417 %
  • Sensitivity: 88.5 dB @ 1W/1m
  • 91.5 dB @ 2.83V/1m
  • Electrical "Q" (Qes): 0.711
  • Mechanical "Q" (Qms): 1.980
  • Total Speaker "Q" (Qts): 0.523
  • Equivalent Compliance (Vas): 1.659 lt
  • Moving Mass (Mms): 2.075 g
  • Mech. Mechanical Compliance (Cms): 0.707 mm/N
  • Magnetic Force (BL): 3.49 N/A
  • Effective Piston Area (Sd): 40.72 cmq
  • Unidirectional Linear Excursion (Xmax): 1.37 mm

Bandwidth

  • With 48 dB/oct HP filters. HP Filters: 200 Hz - 5 KHz
  • With 24 dB/oct HP filters. HP Filters: 230 Hz - 5 KHz
  • With 12 dB/oct HP filters. HP Filters: 260 Hz - 5 KHz
€ 151,00 Price incl. VAT
